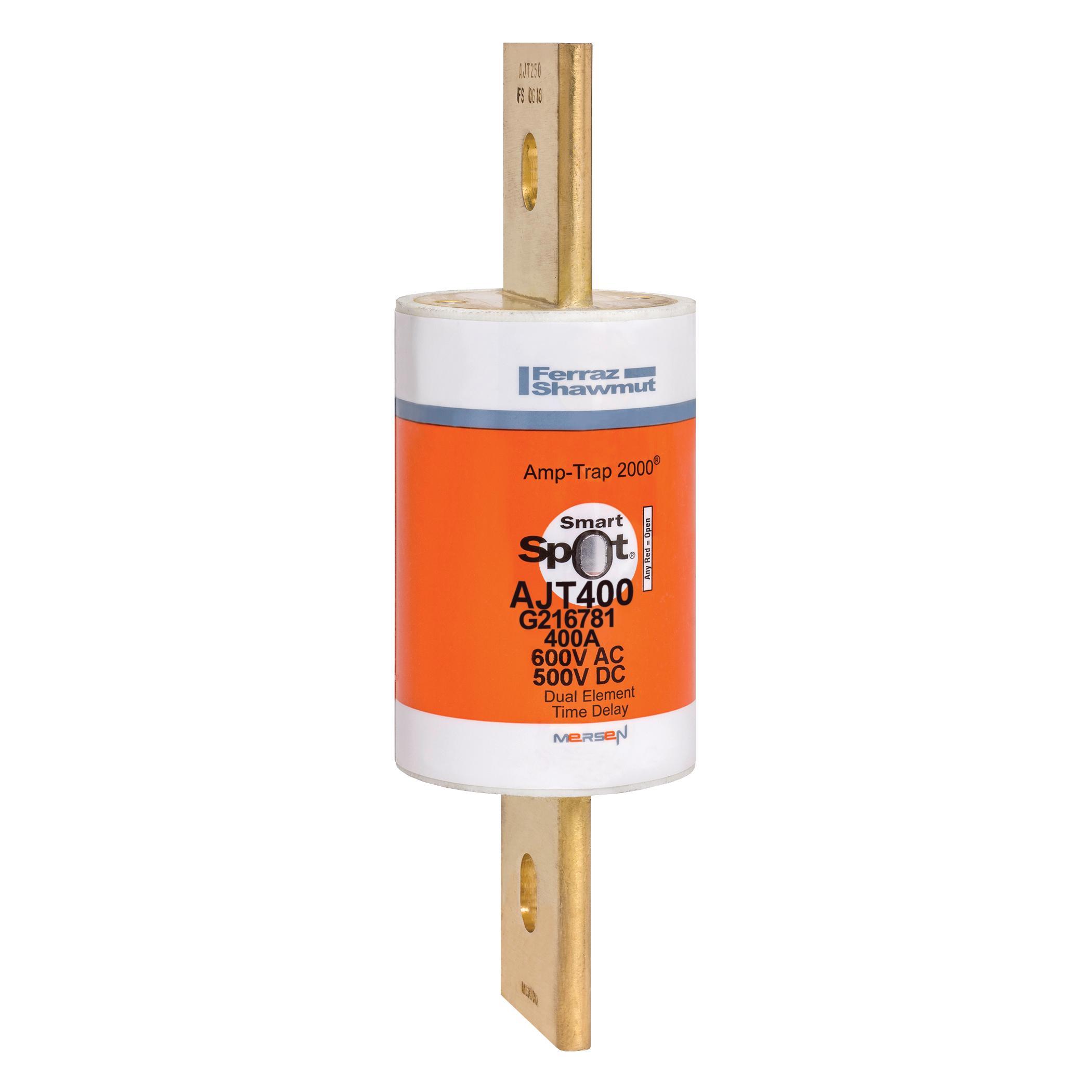

Mersen AMP-TRAP® 2000 SmartSpot® AJT400 Current Limiting Low Voltage North American Time Delay Power Fuse, 400 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
Mersen AMP-TRAP® 2000 SmartSpot® AJT400 Current Limiting Low Voltage North American Time Delay Power Fuse, 400 A, 600 V AC, 200 kA Interrupt, J Class, Cylindrical Body
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 400 A, 600 V AC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 2-1/8 in Dia x 7-1/8 in L Body
Features
- Solid state SmartSpot® indicator
- Time delay for motor starting and transformer inrush
- 300 kA interrupting rating, self certified (UL witnessed)
- Extremely current limiting for low peak let-thru current
- Most current limiting UL class fuse
- Small footprint requires less mounting space and allows smaller, more economical fuse blocks
- Easy 2-to-1 selectivity for prevention of nuisance shutdowns
- Unique class J dimensions prevent replacement errors
- High visibility orange label gives instant recognition
- Metal embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High grade silica filler ensures fast arc quenching
- Tin-plated copper, silver-plated copper contact
Specifications
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.
Mersen AMP-TRAP® 2000 SmartSpot® Power Fuse, Current Limiting Low Voltage North American Time Delay, Series: AJT, Indicating, Rejection, 400 A, 600 V AC, 200 kA Interrupt, Class: J, Blade Terminal, Clip Mounting, Cylindrical Body, Dual Element, Fiberglass, 2-1/8 in Dia x 7-1/8 in L Body
