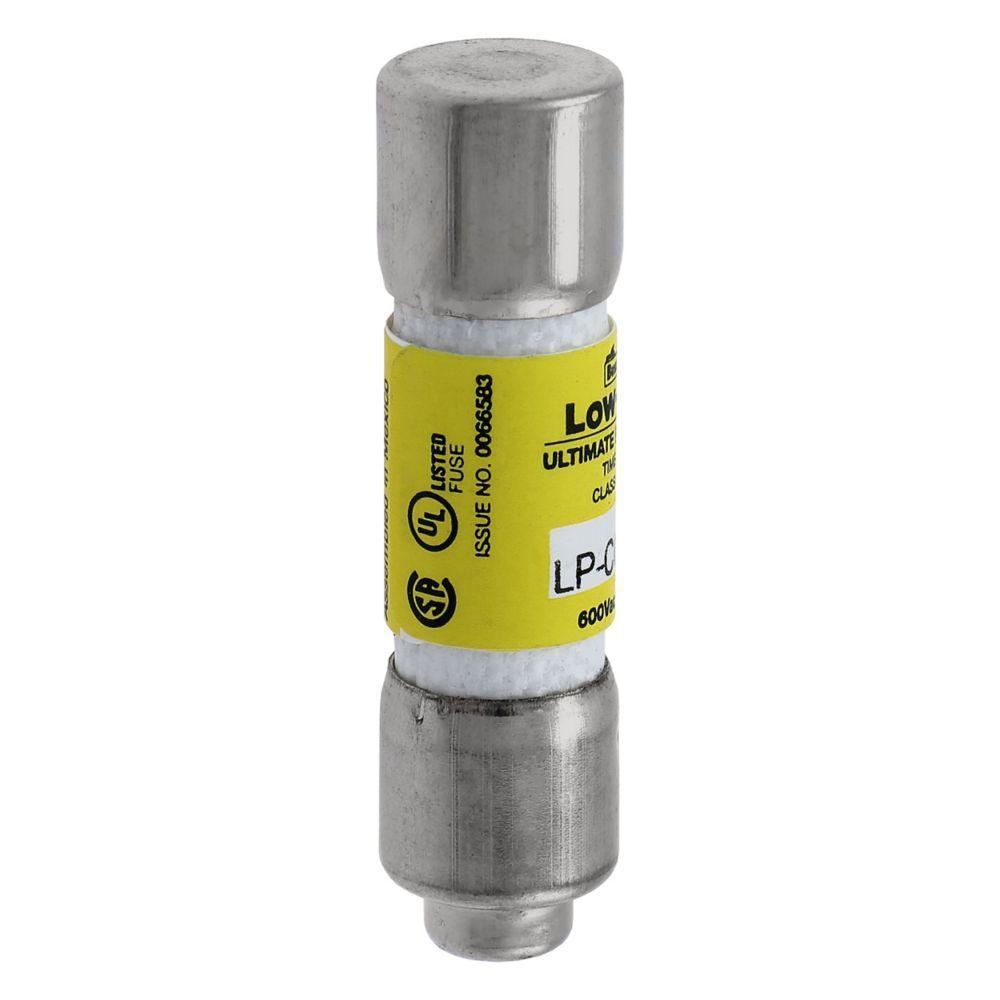

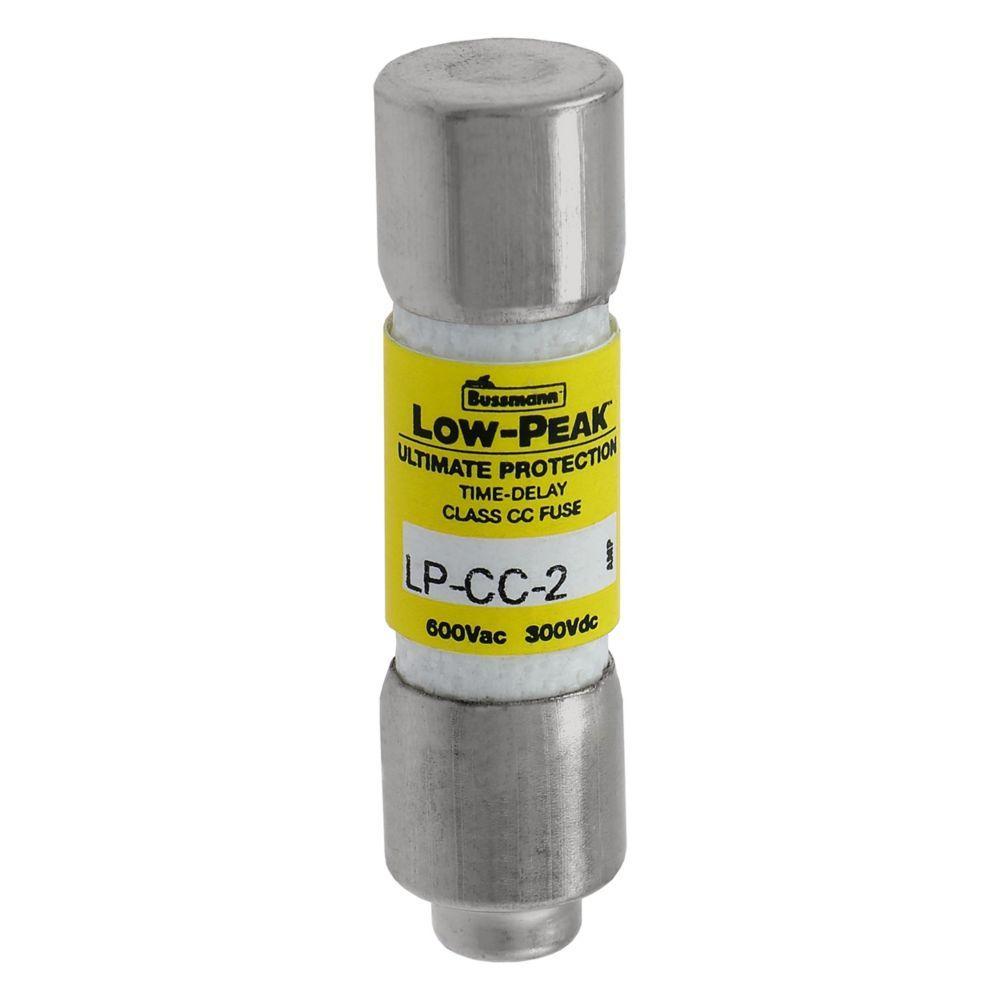

Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body
Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body
Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body
Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body
Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body
Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body

Click to enlarge
ALLFUSES.COM
LP-CC-2

Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body

Bussmann Low-Peak™ LP-CC-2 Current Limiting Time Delay Fuse, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, CC Class, Cylindrical Body

Catalog Number:
Manufacturer: ALLFUSES.COM
Brand: ALLFUSES.COM
Item ID: BUSS LP-CC-2
MPN: LP-CC-2
Min Order Qty: 1

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, Yellow, 13/32 in Dia x 1-1/2 in L Body Size

Sold As: EACH
Springfield

Features

  • Time delay coupled with Class CC current limiting response provides close sizing on small motor and relay circuits, and maximum component short circuit current rating protection
  • 200 kA interrupting rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Inventory consolidation of 13/32 x 1-1/2 in supplementary fuses reduces SKU investment and minimizes potential for misapplying fuse
  • Selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) prevents electrical shutdowns from extending beyond the failed circuit
  • Finger-safe design with the Bussmann series Class CF CUBE Fuse

Specifications

Amperage Rating
2 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Type
Cylindrical
Class
CC
Color
Yellow
Element
Dual
Indicating/Non-Indicating
Non-Indicating
Interrupt Rating
200 kA
Material
Melamine
Mounting Type
Holder
Rejection/Non-Rejection
Rejection
Response Time
12 s at 200%
Series
LP-CC
Terminal Type
Ferrule
Type
Current Limiting
Voltage Rating
600 V AC/300 V DC

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Low-Peak™ Time Delay Fuse, Current Limiting, Series: LP-CC, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 2 A, 600 V AC/300 V DC, 200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cylindrical Body Type, Dual Element, Melamine, Yellow, 13/32 in Dia x 1-1/2 in L Body Size
