3M
7000005944

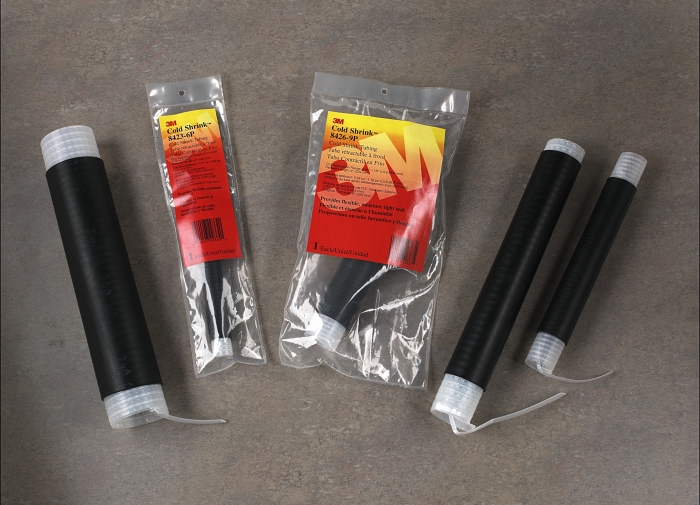

Cold Shrink 1 kV Insulator
Cold Shrink 1 kV Insulator
Catalog Number:
Manufacturer: 3M
Brand: 3M
Item ID: 3MIB 7000005944
MPN: 7000005944
Min Order Qty: 1
Minimum order quantities may apply.
Specifications
Cable Shielding
Wire Shield;Non-Shielded;Tape Shield;UniShield®
Cable Type
Power Cable
Color
Black
Conductor Material
Aluminum;Copper
Conductor Size Range
500 kcmil - 800 kcmil
Conductor Size
500 kcmil;750 kcmil;800 Kcmil;650 kcmil;600 kcmil;700 kcmil
Halogen Free
No
Inner Dia. After Shrink
0.949 in;24.1 mm
Inner Dia. Before Shrink
1.937 in;49.2 mm
Material
EPDM Rubber
Max. Operating Temperature
194 °F
Max. Overall Length
457.2 mm
Maximum Connector Length
14 in
Min. Operating Temperature
-40 °F
Min. Overall Length
18 in
No. of Conductors
1
Operating Voltage
1 kV
Relaxed Tube Length
18 in;457.2 mm
Splice Type
Cold Shrink
Type
Insulator
