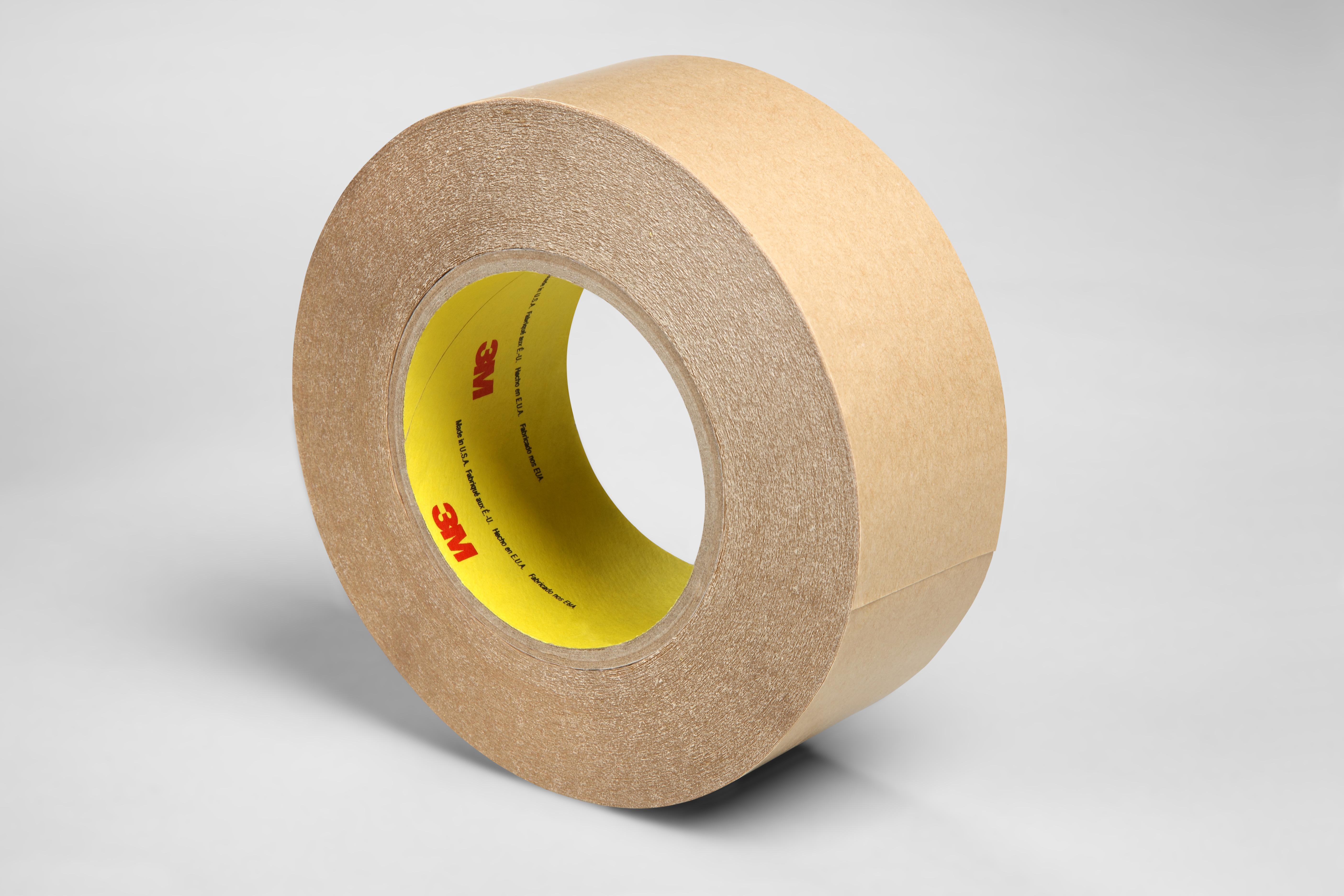

3M™ 7000048563 9576 Double Coated Tape, 60 yd L 2 in W, 4 mil THK, Polypropylene, Acrylic Adhesive, Transparent
3M™ 7000048563 9576 Double Coated Tape, 60 yd L 2 in W, 4 mil THK, Polypropylene, Acrylic Adhesive, Transparent

Click to enlarge
3M
7000048563

3M™ 7000048563 9576 Double Coated Tape, 60 yd L 2 in W, 4 mil THK, Polypropylene, Acrylic Adhesive, Transparent

3M™ 7000048563 9576 Double Coated Tape, 60 yd L 2 in W, 4 mil THK, Polypropylene, Acrylic Adhesive, Transparent

Catalog Number:
Manufacturer: 3M
Brand: 3M
Item ID: 3MIB 7000048563
MPN: 7000048563
Min Order Qty: 1
Minimum order quantities may apply.

3M™ Double Coated Tape 9576 is a medium tack tape for general splicing and roll closing applications. This tape offers ultra-high peel strength and excellent shear strength for durability. It is conformable to irregular surfaces and offers excellent UV and heat resistance.

3M™, 7000048563, Tape, Double Coated, Series: 9576, 60 yd Length, 2 in Width, 4 mil Thickness, Polypropylene, 60# Densified Kraft Paper Liner, Transparent, Acrylic Adhesive, 165 deg F Maximum Operating, -40 deg F Minimum Operating

Features

  • Bonds well to most substrates, including low surface energy plastics
  • Excellent UV and heat resistance
  • Conformable to irregular surfaces
  • Double sided adhesion increases dimensional stability for easy handling

Specifications

Adhesive Material
Acrylic
Back Side Adhesive Thickness
1.5 mil;0.04 mm
Back Side Adhesive Type
400 High Tack Acrylic
Backing Material
Polypropylene
Backing Thickness
1 mil;0.025 mm
Carrier Material
Polypropylene
Carrier Thickness
1 mil;0.03 mm
Color
Transparent
Face Side Adhesive Thickness
1.5 mil;0.04 mm
Face Side Adhesive Type
400 High Tack Acrylic
Length
60 yd
Liner Material
60# Densified Kraft Paper
Material Type
Polypropylene
Max. Operating Temperature
165 °F
Max. Overall Length
54.86 m
Max. Overall Width
2 in;50.8 mm
Maximum Operating Temperature
165 deg F
Min. Operating Temperature
-40 °F
Min. Overall Length
60 yd
Min. Overall Width
2 in;50.8 mm
Minimum Operating Temperature
-40 deg F
Overall Thickness
4 mil
Primary Liner Color
Tan
Primary Liner Thickness
4 mil;0.1 mm
Primary Liner
60# Densified Kraft Paper
Product Form
Roll
Series
9576
Specifications Met
ASTM D3330
Tape Type
Single Coated
Thickness
4 mil
Type
Double Coated
Width
2 in

3M™ Double Coated Tape 9576 is a medium tack tape for general splicing and roll closing applications. This tape offers ultra-high peel strength and excellent shear strength for durability. It is conformable to irregular surfaces and offers excellent UV and heat resistance.

3M™, 7000048563, Tape, Double Coated, Series: 9576, 60 yd Length, 2 in Width, 4 mil Thickness, Polypropylene, 60# Densified Kraft Paper Liner, Transparent, Acrylic Adhesive, 165 deg F Maximum Operating, -40 deg F Minimum Operating
