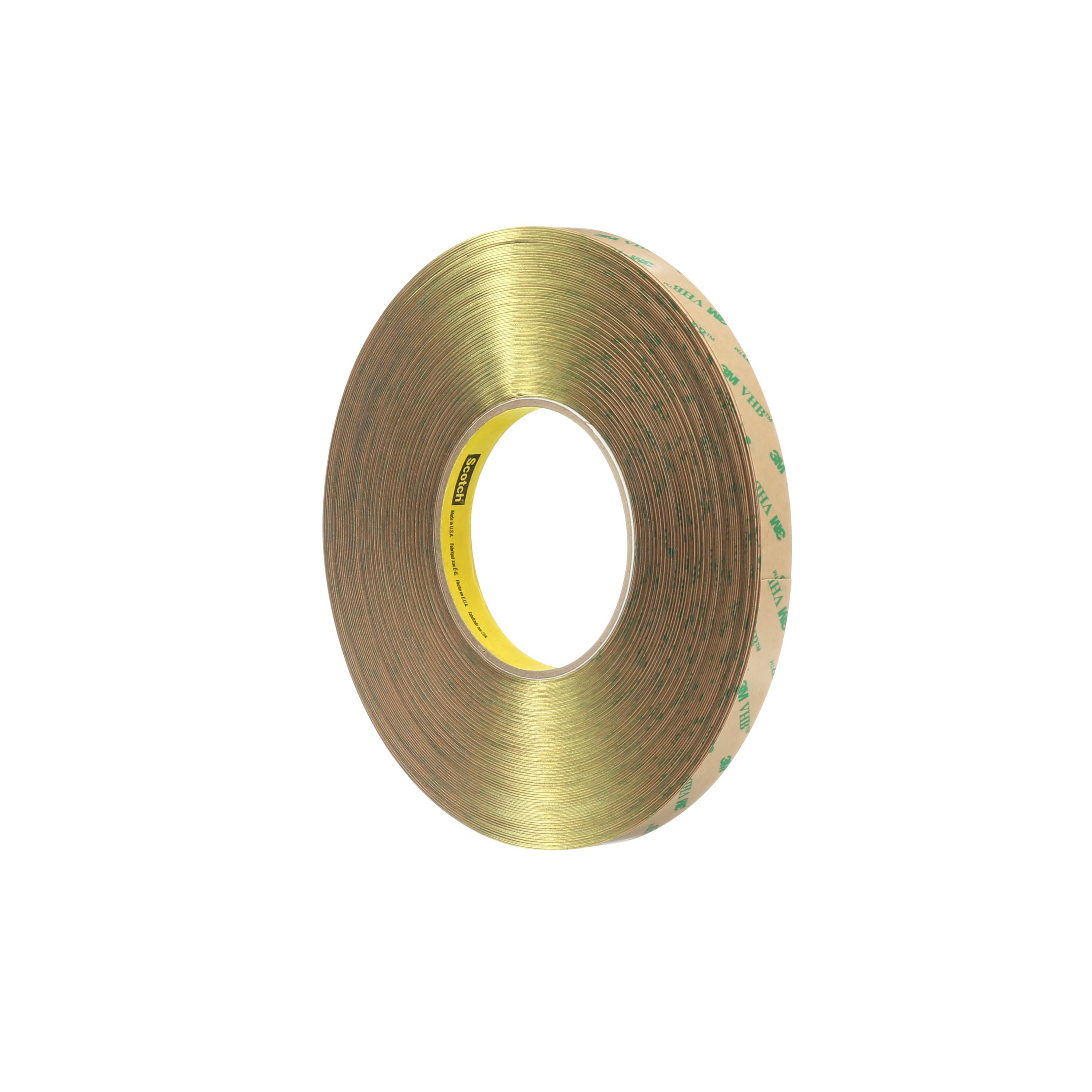

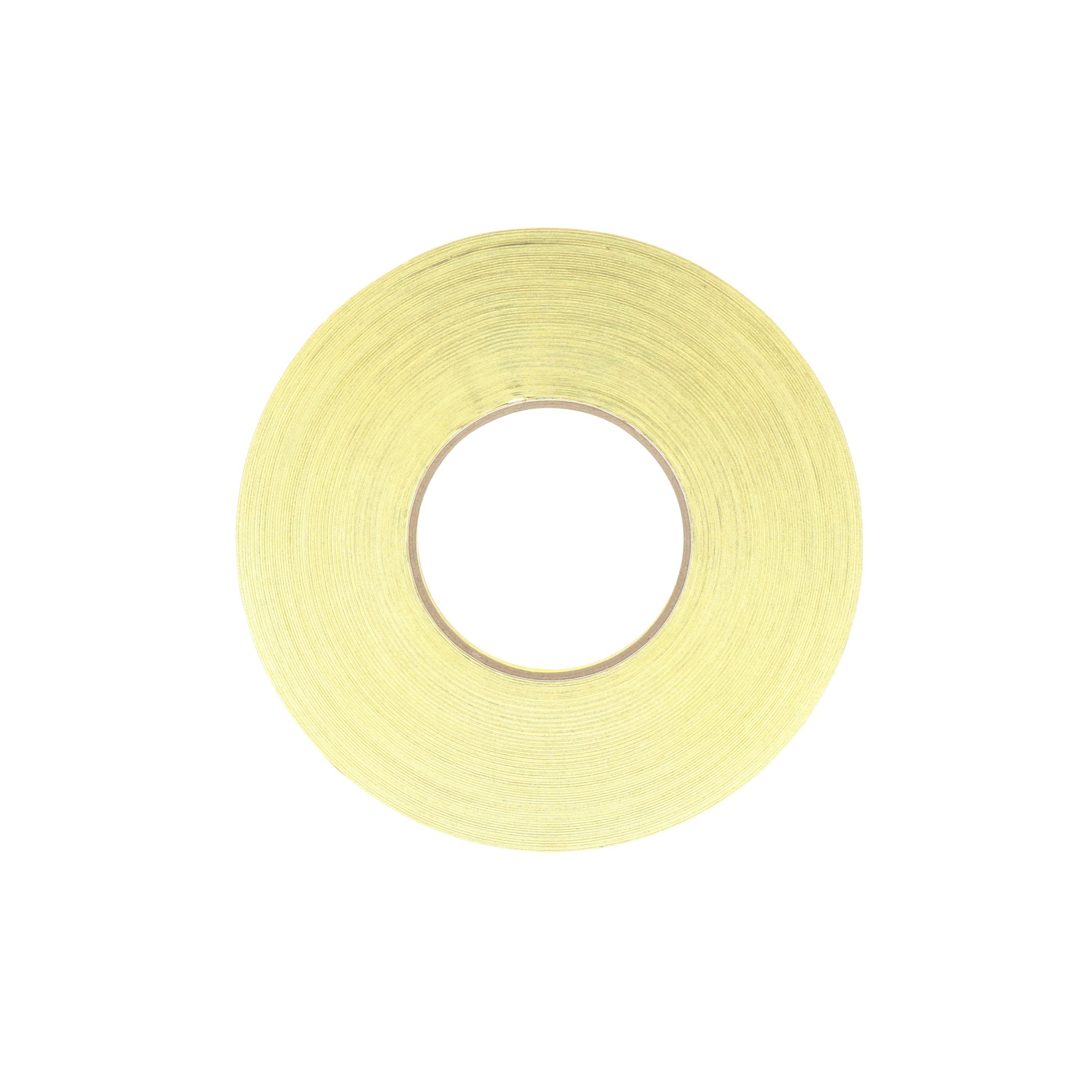

3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR
360 icon
3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR
3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR
3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR
3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR

Click to enlarge
3M
7000115616

3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR

3M F9473PC 3/4X60 VHB ADHESIVE CS12 TRANSFER TAPE CLEAR

Catalog Number:
Manufacturer: 3M
Brand: 3M
Item ID: 3MIB 7000115616
MPN: 7000115616
Min Order Qty: 1
Minimum order quantities may apply.

3M™ VHB™ Adhesive Transfer Tape F9473PC is a thin, double sided tape capable of conforming to a wide variety of applications. Designed with 10 mil 3M™ High Performance Acrylic Adhesive 100MP, VHB™ Adhesive Transfer Tape F9473PC establishes exceptional holding power and long-lasting adhesion for fast, strong results.

VHB™, 7000115616, Adhesive Transfer Tape, Double Sided, Series: F9473PC, 60 yd Length, 3/4 in Width, 10 mil Thickness, 58# Polycoated Kraft Paper Liner, Transparent, Acrylic Adhesive 100, 500 deg F Maximum Operating, -40 deg F Minimum Operating

Features

  • Short term temperature tolerance of up to 500 deg F (260 deg C)
  • Durable adhesive is chemical, UV and solvent resistant

Specifications

Adhesive Material
Acrylic Adhesive 100
Adhesive Type
Acrylic
Assembly Type
Large Surface Lamination;Mounting and Trim Attachment
Color
Transparent
Face Side Adhesive Thickness
10 mil;0.25 mm
Face Side Adhesive Type
3M™ High Performance Acrylic Adhesive 100MP
Indoor/Outdoor Use
Both
Length
60 yd
Liner Material
58# Polycoated Kraft Paper
Max. Operating Temperature
500 °F
Max. Overall Length
54.86 m
Max. Overall Width
0.75 in;19.05 mm
Maximum Operating Temperature
500 deg F
Min. Operating Temperature
-40 °F
Min. Overall Length
60 yd
Min. Overall Width
0.75 in;19.05 mm
Minimum Operating Temperature
-40 deg F
Overall Thickness
10 mil
Primary Liner Color
Tan
Primary Liner Thickness
4.2 mil;0.11 mm
Primary Liner
58# Polycoated Kraft Paper
Product Form
Roll
Series
F9473PC
Set Time
<10 sec
Shelf Life
24 Month
Standard
UL 746C
Thickness
10 mil
Type
Double Sided
Width
3/4 in

3M™ VHB™ Adhesive Transfer Tape F9473PC is a thin, double sided tape capable of conforming to a wide variety of applications. Designed with 10 mil 3M™ High Performance Acrylic Adhesive 100MP, VHB™ Adhesive Transfer Tape F9473PC establishes exceptional holding power and long-lasting adhesion for fast, strong results.

VHB™, 7000115616, Adhesive Transfer Tape, Double Sided, Series: F9473PC, 60 yd Length, 3/4 in Width, 10 mil Thickness, 58# Polycoated Kraft Paper Liner, Transparent, Acrylic Adhesive 100, 500 deg F Maximum Operating, -40 deg F Minimum Operating
