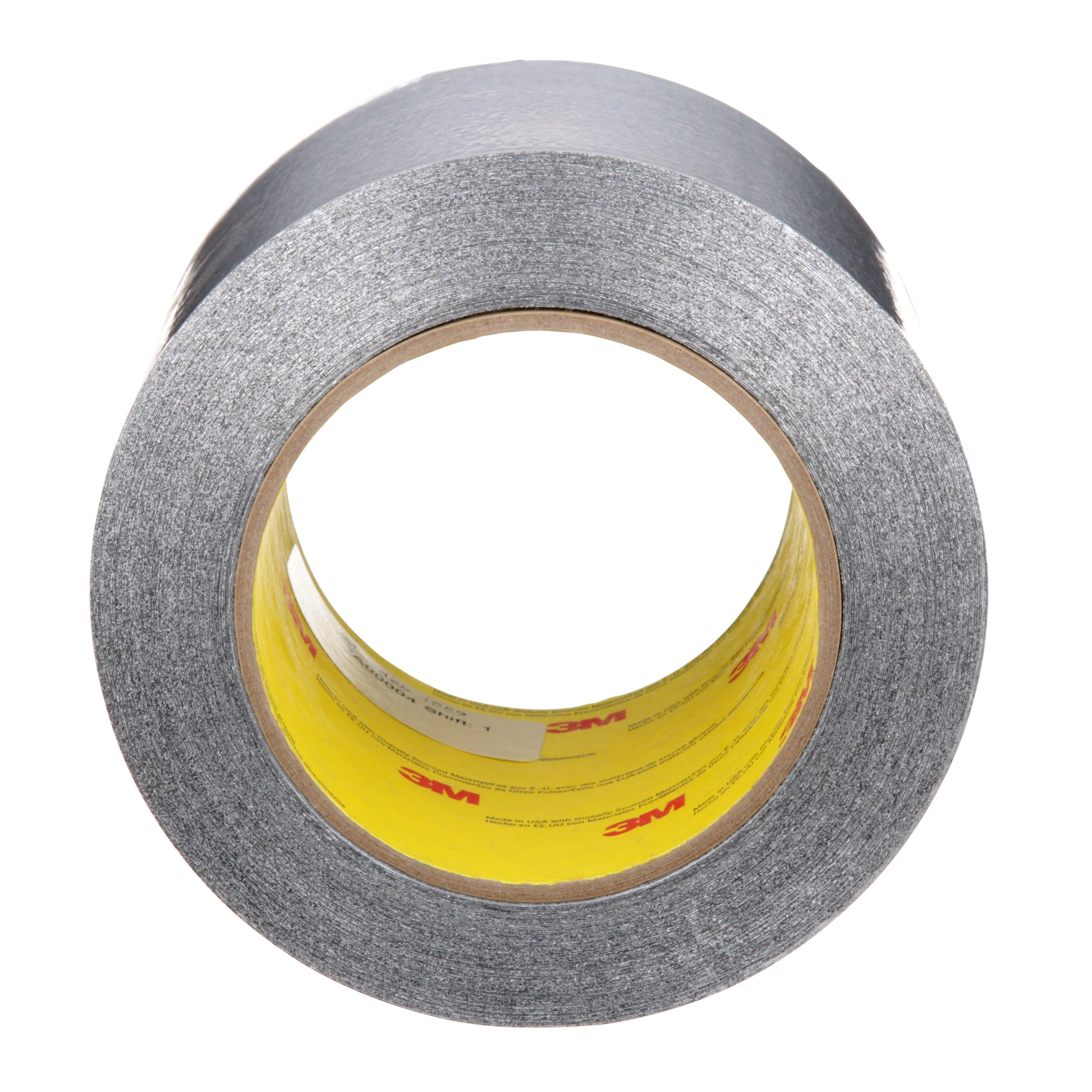

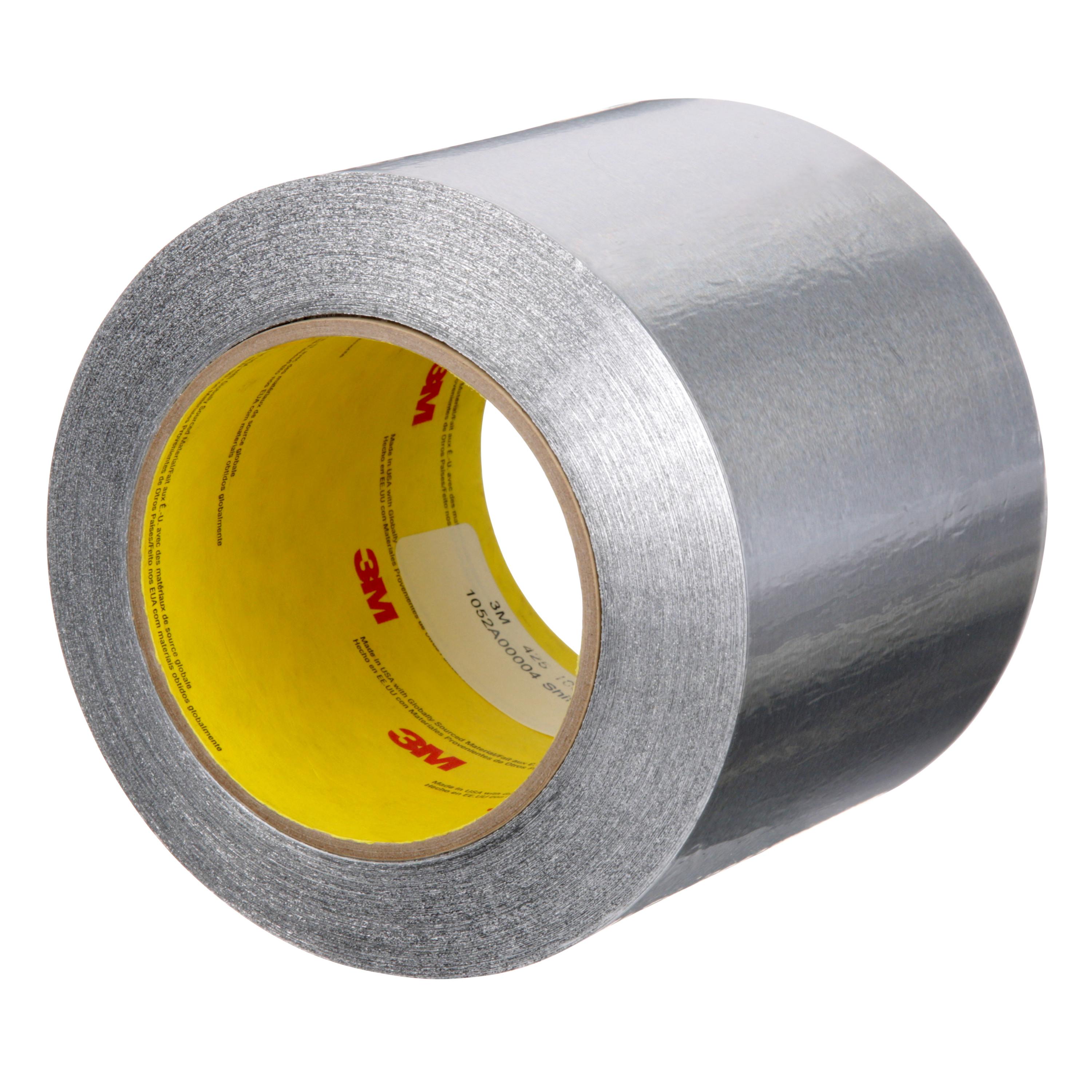

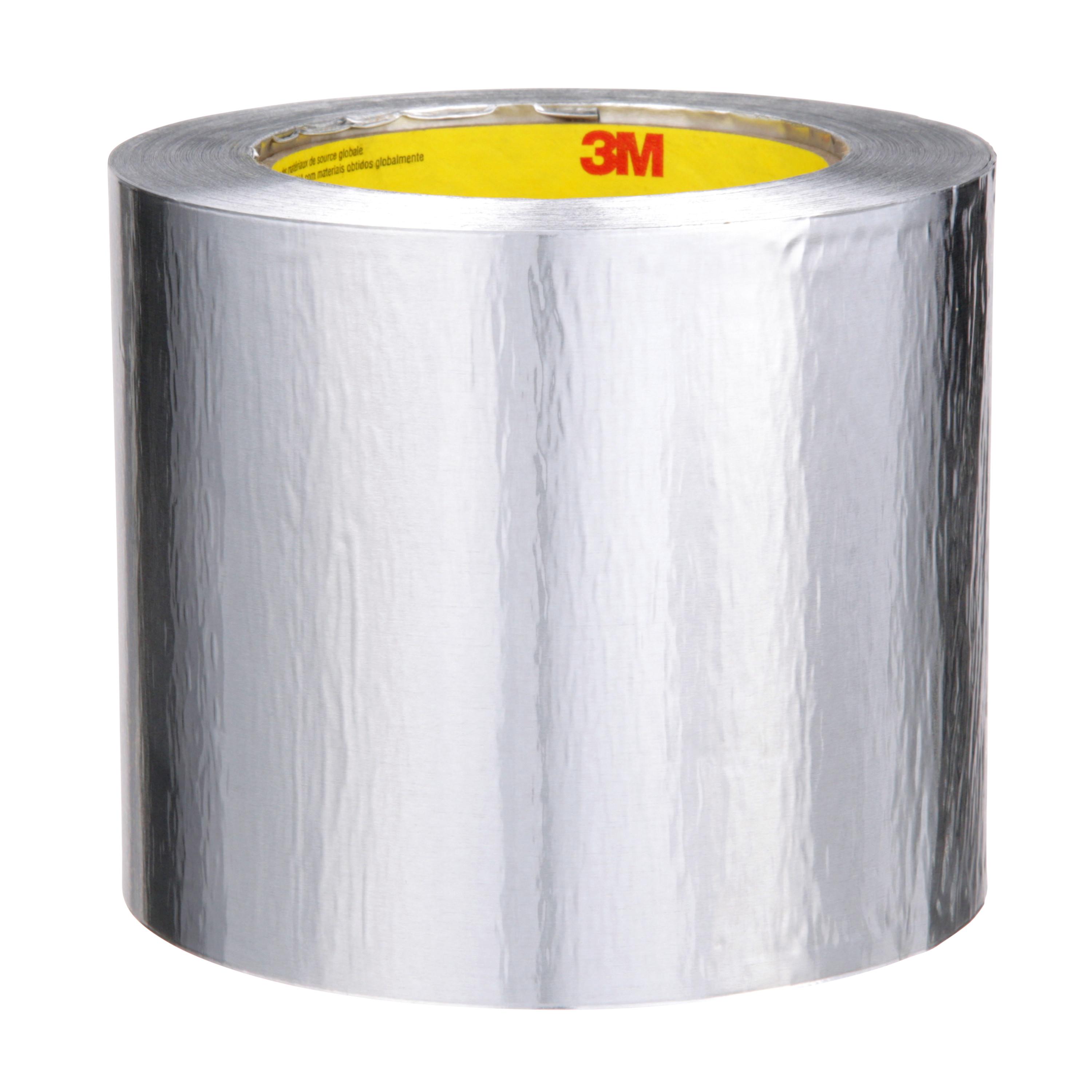

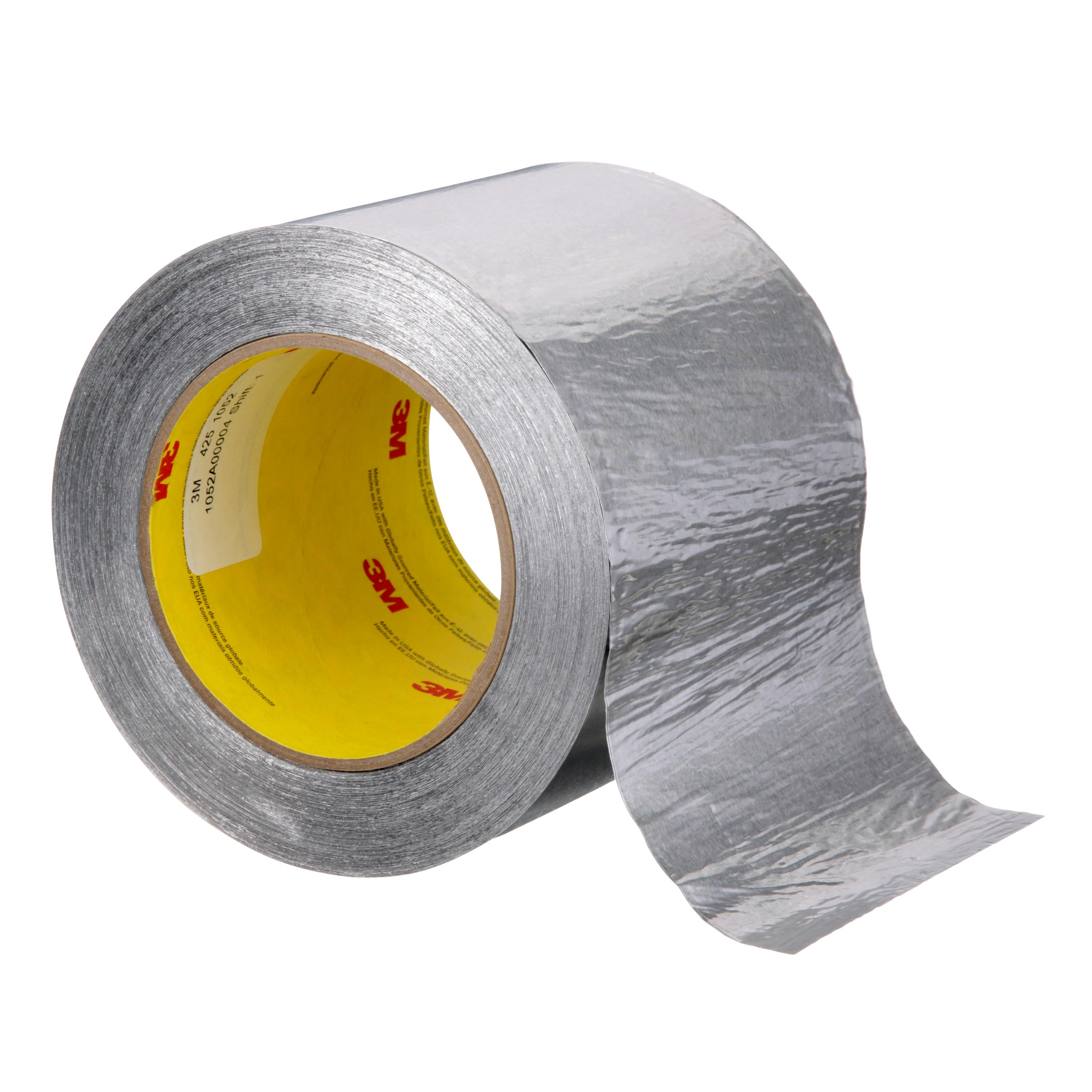

3M™ 7010314221 425 Foil Tape, 60 yd L 7 in W, 4.6 mil THK, Acrylic Adhesive, Aluminum Foil Backing, Silver

3M™ 7010314221 425 Foil Tape, 60 yd L 7 in W, 4.6 mil THK, Acrylic Adhesive, Aluminum Foil Backing, Silver

Catalog Number:
Manufacturer: 3M
Brand: 3M
Item ID: 3MIB 7010314221
MPN: 7010314221
Min Order Qty: 1

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

3M™, 7010314221, Foil Tape, Series: 425, 60 yd Length, 7 in Width, 4.6 mil Thickness, Silver, Acrylic Adhesive, Aluminum Foil Backing, 28 lb/in Tensile Strength, 300 deg F Maximum Operating, -65 deg F Minimum Operating

Features

  • Heat and light reflective tape protects surfaces and enhances lighting efficiency
  • Resistant to chemicals to protect surfaces during de-paint process and other chemical masking operations
  • Thermally conductive tape helps dissipate heat and improves heating and cooling efficiency to protect temperature sensitive materials
  • Withstands exposure to flame, weathering, moisture and UV
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces

Specifications

Adhesion Strength
47 in-oz
Adhesive Material
Acrylic
Adhesive Type
Acrylic
Backing Material2
Aluminum Foil
Backing Material
Aluminum Foil
Backing Thickness3
2.8 mil;0.07 mm
Backing Thickness
2.8 mil;0.07 mm
Color
Silver
Elongation at Break
0.06
Length
60 yd
Material Type
Paper Liner
Max. Operating Temperature
300 °F
Max. Overall Length
54.86 m
Max. Overall Width
7 in;177.8 mm
Maximum Operating Temperature
300 deg F
Min. Operating Temperature
-65 °F
Min. Overall Length
60 yd
Min. Overall Width
7 in;177.8 mm
Minimum Operating Temperature
-65 deg F
Overall Thickness
4.6 mil
Series
425
Tensile Strength
28 lb/in
Thickness
4.6 mil
Type
High Performance Single Coated
Width
7 in

3M™ Aluminum Foil Tape 425 is the go-to foil tape for numerous applications across a broad range of industries. Comprised of a dead soft aluminum foil backing and coated with a highly engineered pressure sensitive acrylic adhesive, it is ideal for heat shielding, heat reflecting, chemical masking, light enhancement, chemical milling, seaming, sealing and de-paint operations.

3M™, 7010314221, Foil Tape, Series: 425, 60 yd Length, 7 in Width, 4.6 mil Thickness, Silver, Acrylic Adhesive, Aluminum Foil Backing, 28 lb/in Tensile Strength, 300 deg F Maximum Operating, -65 deg F Minimum Operating
