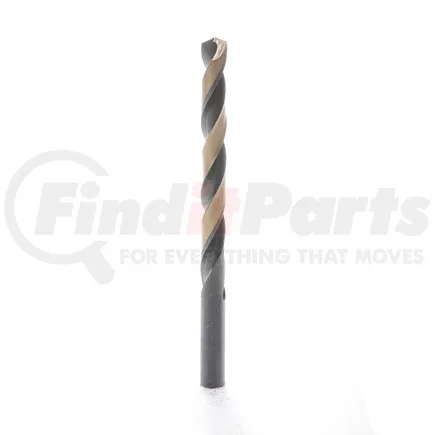

Alfa USA® BB74117 Heavy Duty Jobber Length Drill Bit, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 135 deg Point, M-7 HSS, Black Oxide/Gold
Alfa USA® BB74117 Heavy Duty Jobber Length Drill Bit, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 135 deg Point, M-7 HSS, Black Oxide/Gold

Click to enlarge
ALFA TOOLS
BB74117

Alfa USA® BB74117 Heavy Duty Jobber Length Drill Bit, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 135 deg Point, M-7 HSS, Black Oxide/Gold

Alfa USA® BB74117 Heavy Duty Jobber Length Drill Bit, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 135 deg Point, M-7 HSS, Black Oxide/Gold

Catalog Number:
Manufacturer: ALFA TOOLS
Brand: ALFA TOOLS
Item ID: ALFA BB74117
MPN: BB74117
Min Order Qty: 1
Minimum order quantities may apply.

Alfa USA®, BB74117, Jobber Length Drill Bit, Heavy Duty, Imperial, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 4-1/2 in Overall Length, Spiral Flute, 3-3/16 in Flute Length, Straight Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting Direction, M-7 HSS, Black Oxide/Gold, Applicable Materials: Mild Steel, Titanium Alloy, Stainless Steel and Non-Ferrous Materials

Features

  • Engineered for heavy duty work, BLITZ BITS® are high performance drills for production as well as tough maintenance applications
  • Made from a premium grade of M-7 molybdenum high speed steel, which has a special black and gold surface treatment to increase lubricity and reduce friction
  • The strong web construction provides greater strength and rigidity to drill in hard to drill materials like stainless steel and titanium alloys
  • The buttressed cutting edge, with an acute rake, makes the BLITZ BIT® cut cleanly and accurately with less effort. The extra clearance behind the side margin reduces friction, enabling balanced cutting action with closer hole tolerances, at higher speeds

Specifications

Applicable Materials
Mild Steel, Titanium Alloy, Stainless Steel and Non-Ferrous Materials
Cutting Direction
Right Hand
Drill Diameter Measurement System
Imperial
Drill Size - Decimal Inch
0.3125 in
Drill Size - Fraction
5/16 in
Finish
Black Oxide/Gold
Flute Length
3-3/16 in
Flute Type
Spiral
Material
M-7 HSS
Overall Length
4-1/2 in
Point Angle
135 deg
Point Type
Self-Centering
Shank Type
Straight
Type
Heavy Duty

Alfa USA®, BB74117, Jobber Length Drill Bit, Heavy Duty, Imperial, 5/16 in Drill - Fraction, 0.3125 in Drill - Decimal Inch, 4-1/2 in Overall Length, Spiral Flute, 3-3/16 in Flute Length, Straight Shank, 135 deg Point, Self-Centering Point, Right Hand Cutting Direction, M-7 HSS, Black Oxide/Gold, Applicable Materials: Mild Steel, Titanium Alloy, Stainless Steel and Non-Ferrous Materials
