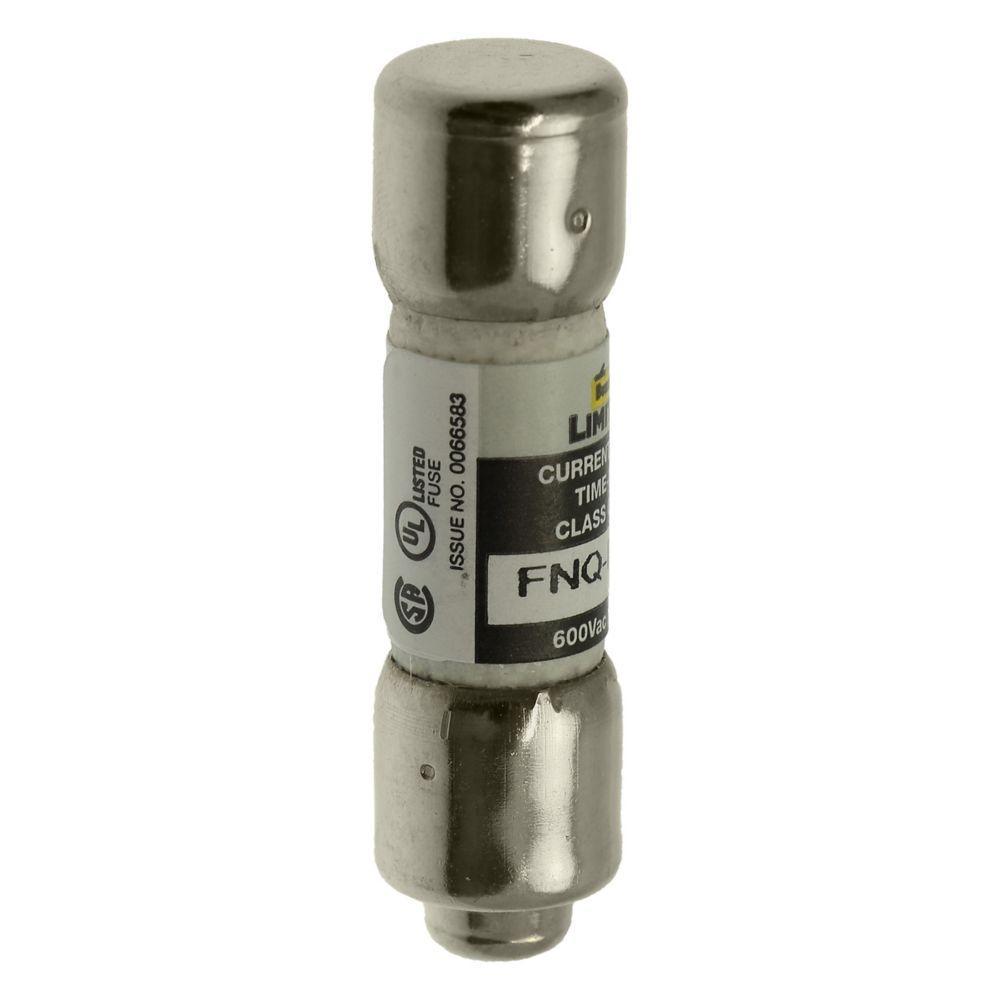

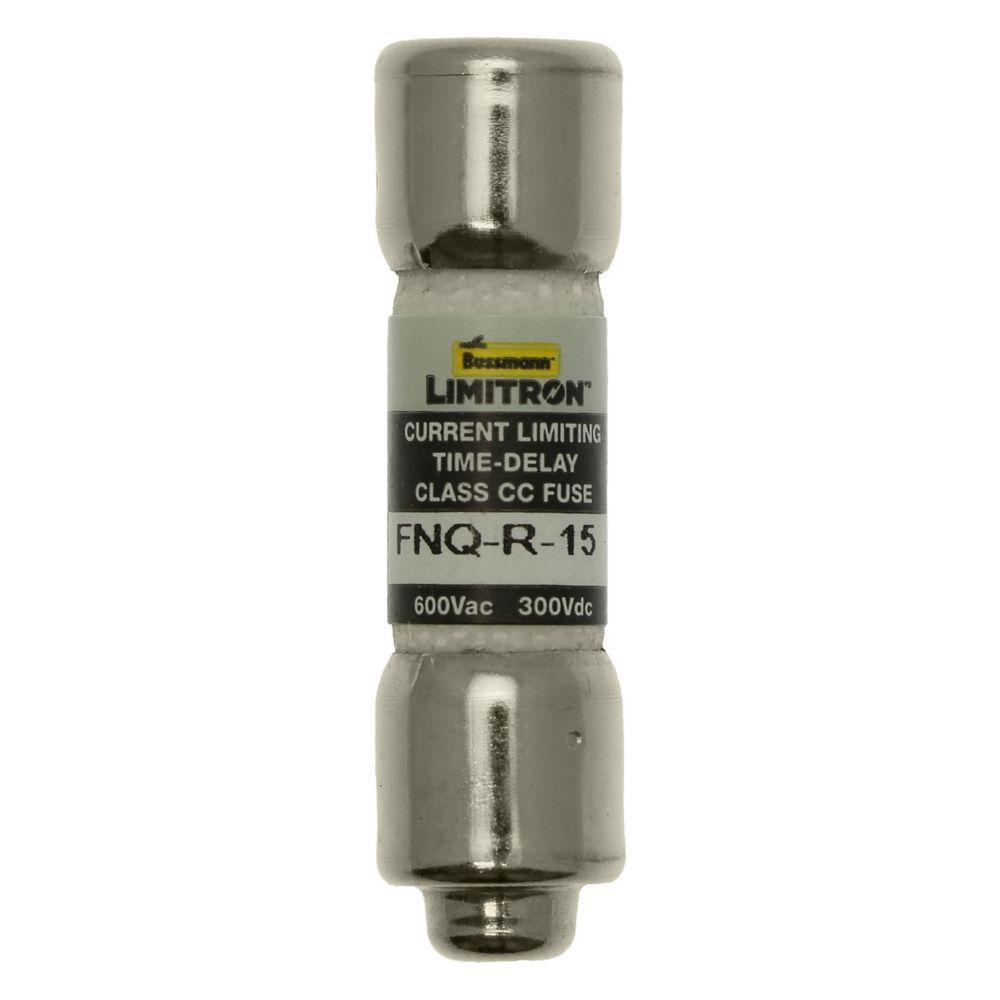

Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body
Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body

Click to enlarge
ALLFUSES.COM

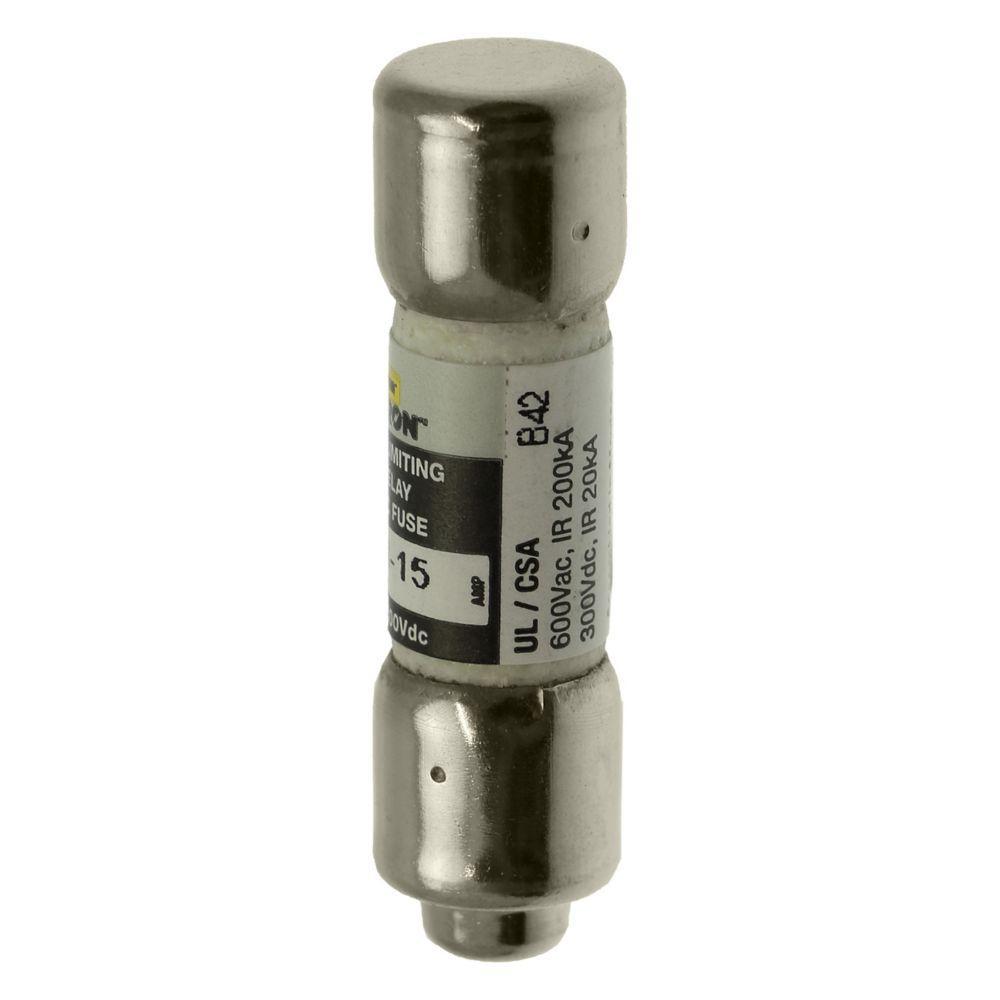

FNQ-R-15

Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body

Bussmann Limitron™ CC-Tron® FNQ-R-15 Advanced Protection Current Limiting High Inrush Low Voltage Time Delay Fuse, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, CC Class, Cartridge Body

Catalog Number:
Manufacturer: ALLFUSES.COM
Brand: ALLFUSES.COM
Item ID: BUSS FNQ-R-15
MPN: FNQ-R-15
Min Order Qty: 1

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Limitron™ CC-Tron® Time Delay Fuse, Advanced Protection Current Limiting High Inrush Low Voltage, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size

Sold As: EACH
Springfield

Features

  • Time delay compatible with inrush characteristic of small control transformers
  • Provides 10X better current limitation to help prevent equipment damage caused by short circuit events
  • 200 kA interrupt rating provides high ratings for control circuit locations
  • Class CC rejection feature with appropriate fuse block, prevents inserting lesser rated supplementary fuse
  • Fast acting fuse helps prevent equipment damage caused by short circuit events
  • Rejection type fuse fits both standard and rejection style holders
  • Ideal for critical industrial or commercial applications that have specific current limitation requirements
  • 200 kA at 600 VAC rms symmetrical, 20 kA at 300 VDC interrupt rating
  • Response time 12 s minimum at 200%
  • Melamine tube, nickel plated brass end caps

Specifications

Amperage Rating
15 A
Body Size
13/32 in Dia x 1-1/2 in L
Body Type
Cartridge
Class
CC
Element
Dual
Indicating/Non-Indicating
Non-Indicating
Interrupt Rating
20/200 kA
Material
Melamine
Mounting Type
Holder
Rejection/Non-Rejection
Rejection
Response Time
12 s at 200%
Series
FNQ-R
Terminal Type
Ferrule
Type
Advanced Protection Current Limiting High Inrush Low Voltage
Voltage Rating
600 V AC/300 V DC

Bussmann's Class CC fuses set the standard in Class CC fuse performance in the industry. Recognized for their superior performance, Bussmann has the right product for your circuit and equipment protection needs. These branch circuit rated, 600v, 200,000a IR fuses offer exceptional protection in the smallest package of any UL class of fuses. Choose from the ultimate protection provided by our Low Peak LP-CC fuses, the time delay of our FNQ-R's for your control transformer and similar control applications or the fast acting protection of our KTK-R Limitron fuses for specialized circuits such as lighting protection

Bussmann Limitron™ CC-Tron® Time Delay Fuse, Advanced Protection Current Limiting High Inrush Low Voltage, Series: FNQ-R, Indicating/Non-Indicating: Non-Indicating, Rejection/Non-Rejection: Rejection, 15 A, 600 V AC/300 V DC, 20/200 kA Interrupt, Class: CC, 12 s at 200% Response, Ferrule Terminal, Holder Mount, Cartridge Body Type, Dual Element, Melamine, 13/32 in Dia x 1-1/2 in L Body Size
