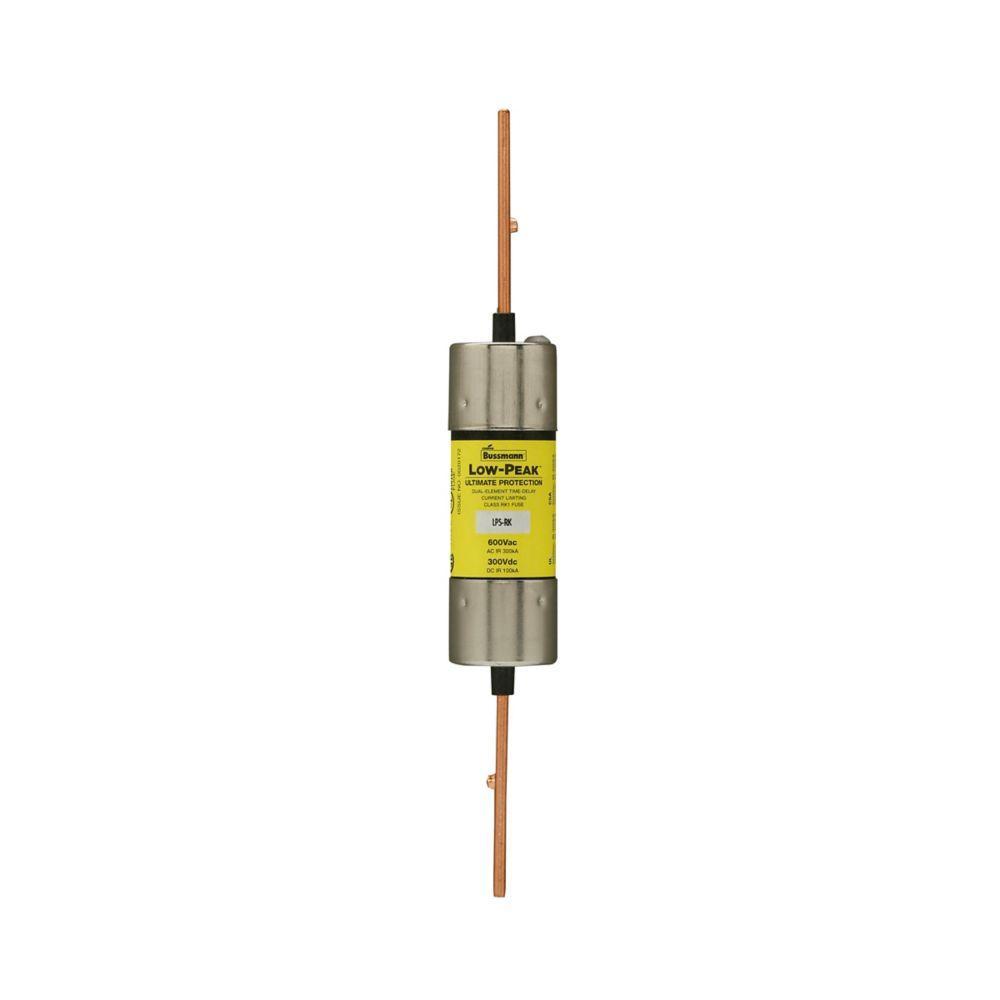

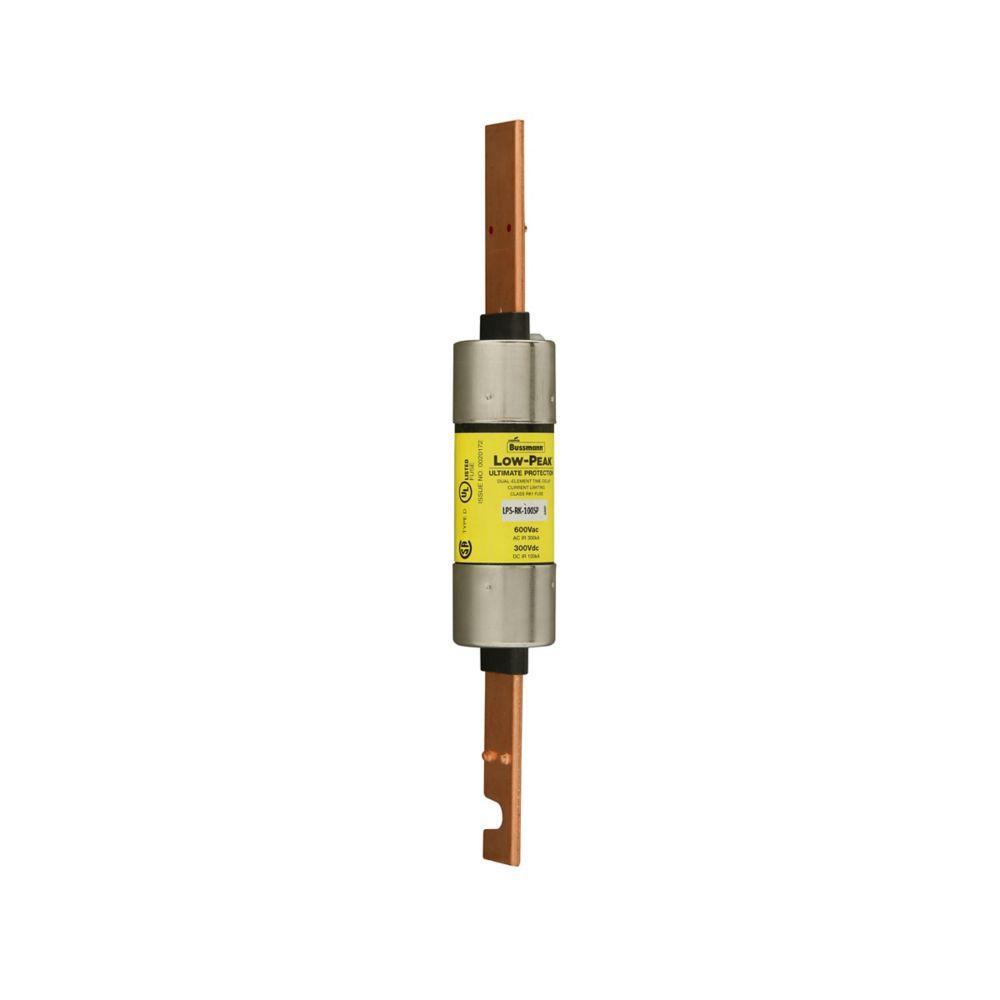

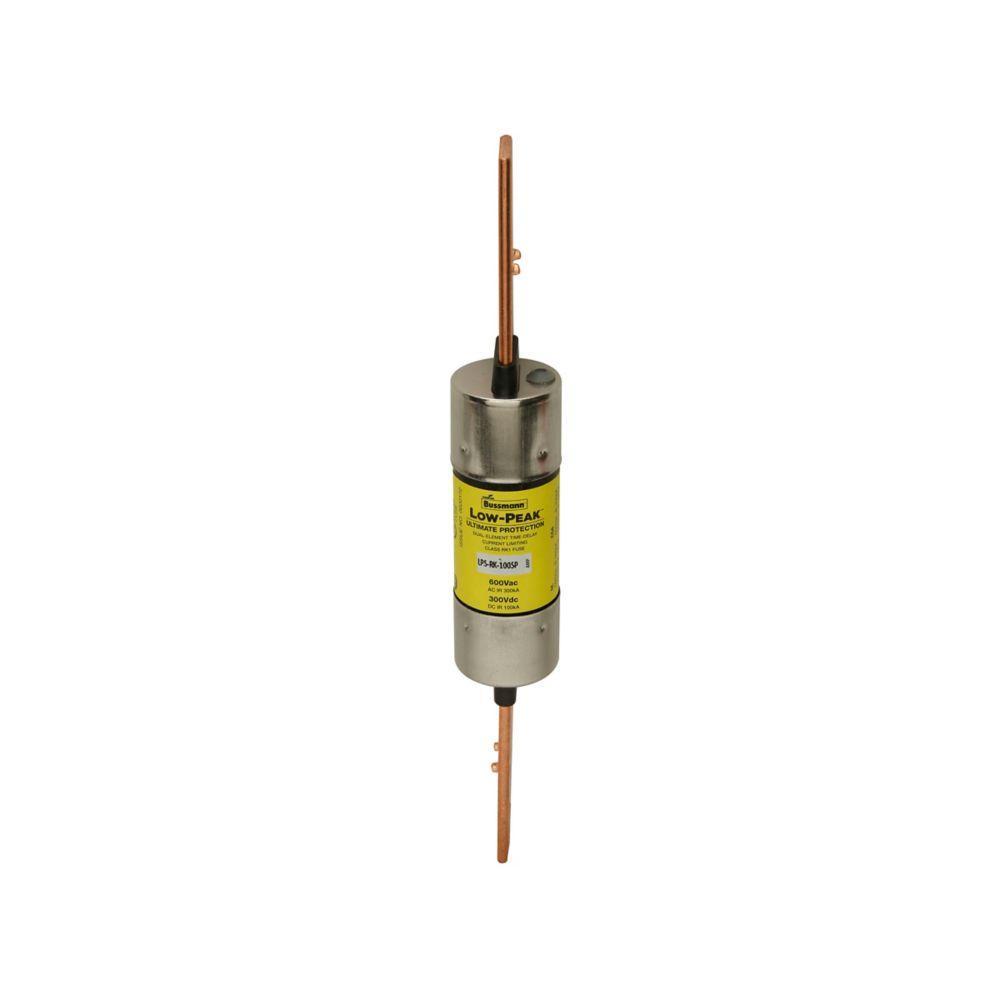

Bussmann Low-Peak™ LPS-RK-70SP Low Voltage Current Limiting Time Delay Fuse, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, RK1 Class, Cartridge Body

Bussmann Low-Peak™ LPS-RK-70SP Low Voltage Current Limiting Time Delay Fuse, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, RK1 Class, Cartridge Body

Catalog Number:
Manufacturer: ALLFUSES.COM
Brand: ALLFUSES.COM
Item ID: FUSE LPS-RK-70SP
MPN: LPS-RK-70SP
Min Order Qty: 1

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.

Bussmann Low-Peak™ Time Delay Fuse, Low Voltage Current Limiting, Series: LPS, Indicating/Non-Indicating: Non-Indicating, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: RK1, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, 1.11 in Dia x 7.88 in L Body Size

Sold As: EACH

Features

  • Separate overload and short circuit elements provide time delay for close sizing of high inrush loads linked with RK1 current limitation and selective co-ordination ratio of 2:1 (within Low-Peak™ fuse family) prevents widespread blackouts
  • Time delay permits 130% FLA sizing for backup motor protection
  • 300 kA rms symmetrical interrupt rating provides adequate ratings without obsolescence for all electrical systems, big or small, allows for simple, worry free installation in virtually any application
  • Reduces existing fuse inventory by up to 33% when upgrading to Low-Peak™ fuses
  • Consistent 2:1 ampacity ratios for all Low-Peak™ fuses make selective co-ordination easy
  • Current limitation protects downstream components against damaging thermal and magnetic effects of short circuit currents
  • Protects against 1 ph motor damage
  • Proper sizing can provide "no damage" type 2 motor starter protection for NEMA® and IEC® motor controllers
  • Electrically isolated end cap
  • 10 s at 500% of rated current response time
  • 300 kA at 600 VAC, 100 kA at 300 VDC interrupt rating

Specifications

Amperage Rating
70 A
Body Size
1.11 in Dia x 7.88 in L
Body Type
Cartridge
Class
RK1
Element
Dual
Indicating/Non-Indicating
Non-Indicating
Interrupt Rating
100/300 kA
Mounting Type
Holder
Response Time
10 s at 500%
Series
LPS
Terminal Type
Blade
Type
Low Voltage Current Limiting
Voltage Rating
600 V AC/300 V DC

Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.

Bussmann Low-Peak™ Time Delay Fuse, Low Voltage Current Limiting, Series: LPS, Indicating/Non-Indicating: Non-Indicating, 70 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: RK1, 10 s at 500% Response, Blade Terminal, Holder Mount, Cartridge Body Type, Dual Element, 1.11 in Dia x 7.88 in L Body Size
