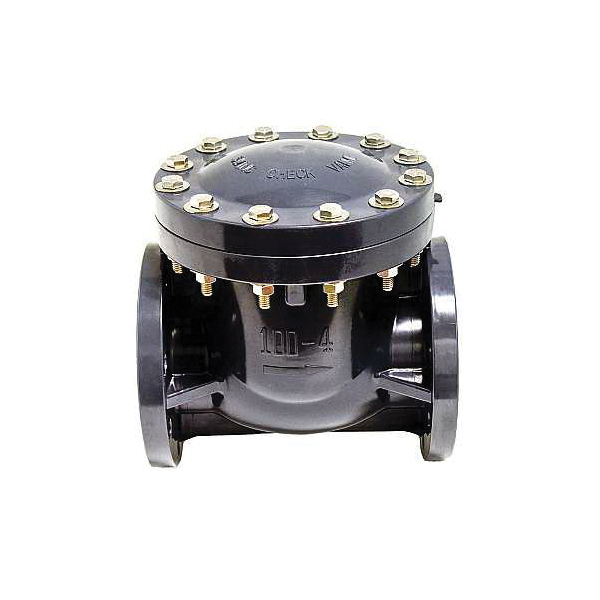

American Valve® 1100 P440F Swing Check Valve, 6 in Nominal, Flanged End Style, 150 lb, EPDM/PVC, PVC Body
American Valve® 1100 P440F Swing Check Valve, 6 in Nominal, Flanged End Style, 150 lb, EPDM/PVC, PVC Body
AVOS Thermoplastic Valves & Fittings P440F Flanged swing check valves are designed for industrial applications to prevent backflow and mitigate water hammer. The bolted access cover allows easy access for cleaning and general maintenance.
American Valve® Swing Check Valve, Series: P440F, 6 in Nominal, Flanged End Style, 100 psi Pressure, 150 lb Pressure Class, 140 deg F, Yes Low Lead Compliance, Media: Water, 15-3/4 in Inlet to Outlet Length, 11.22 in Top to Inlet Center, PVC Body, EPDM/PVC Trim, EPDM/PVC Softgoods
Features
- For tank inlets/outlets, preventing backflow into the pump
- For one-way mixing, water hammer mitigation, pressure balancing, process intakes
- Minimum flow resistance
- Top access cover for easy maintenance without removal from pipeline
- EPDM gasket and PVC washer
- May be installed either vertically or horizontally
Specifications
AVOS Thermoplastic Valves & Fittings P440F Flanged swing check valves are designed for industrial applications to prevent backflow and mitigate water hammer. The bolted access cover allows easy access for cleaning and general maintenance.
American Valve® Swing Check Valve, Series: P440F, 6 in Nominal, Flanged End Style, 100 psi Pressure, 150 lb Pressure Class, 140 deg F, Yes Low Lead Compliance, Media: Water, 15-3/4 in Inlet to Outlet Length, 11.22 in Top to Inlet Center, PVC Body, EPDM/PVC Trim, EPDM/PVC Softgoods
