AMERICAN VALVE
013125

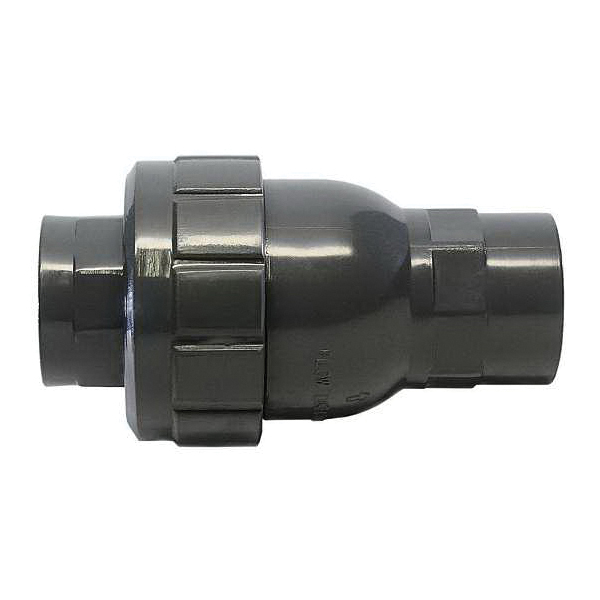

American Valve® 1125 P460S Ball Check Valve, 2 in Nominal, Socket End Style, PVC Body, EPDM Softgoods
American Valve® 1125 P460S Ball Check Valve, 2 in Nominal, Socket End Style, PVC Body, EPDM Softgoods
Catalog Number:
Manufacturer: AMERICAN VALVE
Brand: AMERICAN VALVE
Item ID: AVAL 013125
MPN: 013125
Min Order Qty: 1
American Valve® Ball Check Valve, Series: P460S, 2 in Nominal, Socket End Style, 150 psi Pressure, 140 deg F, Media: Water, 7.01 in Inlet to Outlet Length, PVC Ball, PVC Body, EPDM Trim, EPDM Softgoods, 4.21 in OD Dimensions
Sold As: 24/PK
Features
- The ball seals by gravity in vertical position
- The ball seals at 2 to 4 psi back pressure in positions other than vertical
- Uni-directional, arrow indicates the flow direction
- Female socket dimensions comply with ASTM D2467
- EPDM seat
- EPDM seal
- 150 psi at 73 deg F
Specifications
Ball Material
PVC
Body Material
PVC
Dimensions
4.21 in OD
End Style
Socket
Inlet to Outlet Length
7.01 in
Media
Water
Nominal Size
2 in
Pressure Rating
150 psi
Series
P460S
Softgoods Material
EPDM
Temperature Rating
140 deg F
Trim Material
EPDM
American Valve® Ball Check Valve, Series: P460S, 2 in Nominal, Socket End Style, 150 psi Pressure, 140 deg F, Media: Water, 7.01 in Inlet to Outlet Length, PVC Ball, PVC Body, EPDM Trim, EPDM Softgoods, 4.21 in OD Dimensions
