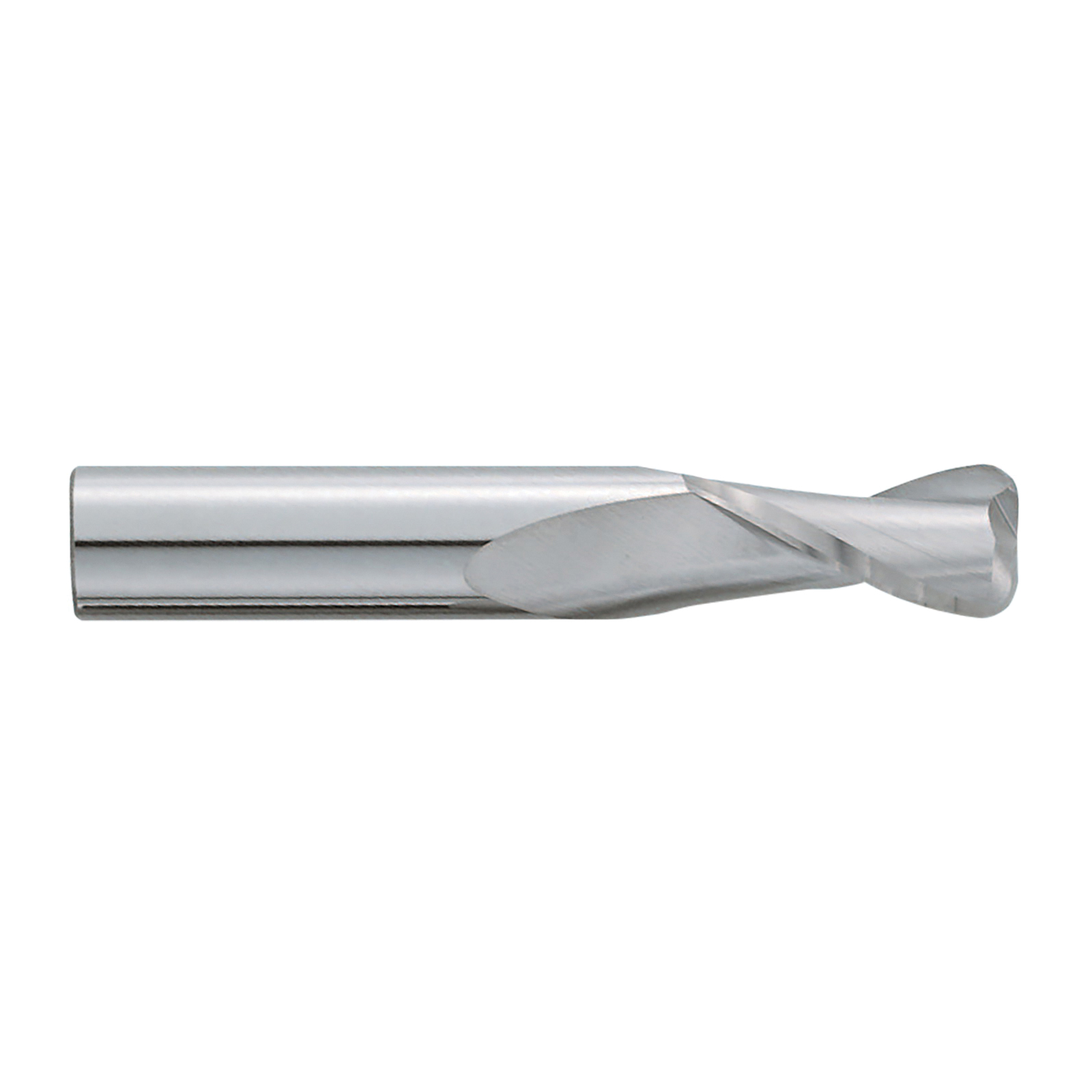

GARR 36536 820R Center Cutting Standard Length Corner Radius End Mill, 8 mm Dia Cutter, 3 mm Corner Radius, 22 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 65 mm OAL
GARR 36536 820R Center Cutting Standard Length Corner Radius End Mill, 8 mm Dia Cutter, 3 mm Corner Radius, 22 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 65 mm OAL
GARR 36536 820R Center Cutting Standard Length Corner Radius End Mill, 8 mm Dia Cutter, 3 mm Corner Radius, 22 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 65 mm OAL

Click to enlarge
ANTI-SEIZE TECHNOLOGY
36536

GARR 36536 820R Center Cutting Standard Length Corner Radius End Mill, 8 mm Dia Cutter, 3 mm Corner Radius, 22 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 65 mm OAL

GARR 36536 820R Center Cutting Standard Length Corner Radius End Mill, 8 mm Dia Cutter, 3 mm Corner Radius, 22 mm Length of Cut, 2 Flutes, 8 mm Dia Shank, 65 mm OAL

Catalog Number:
Manufacturer: ANTI-SEIZE TECHNOLOGY
Brand: ANTI-SEIZE TECHNOLOGY
Item ID: ASTI 36536
MPN: 36536
Min Order Qty: 1

GARR Corner Radius End Mill, Center Cutting Standard Length, Series: 820R, 8 mm Diameter Cutter, 3 mm Corner Radius, 65 mm Overall Length, 22 mm Length of Cut, 2 Flutes, 8 mm Shank Diameter, 30 deg Helix Angle, Solid Submicron Grain Carbide

Sold As: EACH

Features

  • General Purpose
  • Extremely versatile

Specifications

Corner Radius
3 mm
Cutter Diameter
8 mm
Helix Angle
30 deg
Length of Cut
22 mm
Material
Solid Submicron Grain Carbide
Number of Flutes
2
Overall Length
65 mm
Series
820R
Shank Diameter
8 mm
Type
Center Cutting Standard Length

GARR Corner Radius End Mill, Center Cutting Standard Length, Series: 820R, 8 mm Diameter Cutter, 3 mm Corner Radius, 65 mm Overall Length, 22 mm Length of Cut, 2 Flutes, 8 mm Shank Diameter, 30 deg Helix Angle, Solid Submicron Grain Carbide
