Bassett B00025 MSE-4B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
Bassett B00025 MSE-4B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

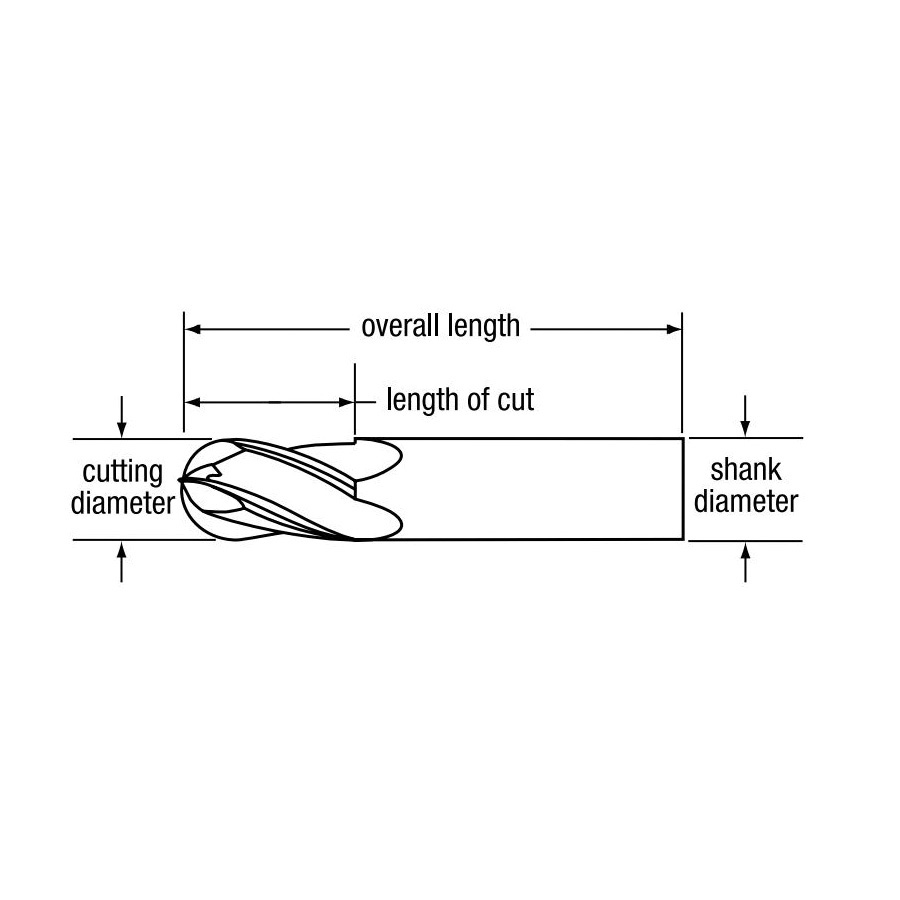

Bassett End Mill, Ball Nose Center Cutting General Purpose Regular Length Single End, Series: MSE-4B, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated
Features
- 10% Cobalt submicron grain carbide substrate
- 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
- 4-Flute end mills are most commonly used in profiling and in harder materials, stiffer construction results in minimal deflection
- 4-Flute end mills provide good surface finishes and wear resistant characteristics for excellent size control
- Applicable on steel, cast iron, high temperature alloys, non-ferrous materials, low carbon steels and plastics
Specifications
Bassett End Mill, Ball Nose Center Cutting General Purpose Regular Length Single End, Series: MSE-4B, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 1 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated
