Bassett B00241 MSE-2B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
Bassett B00241 MSE-2B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated
Bassett B00241 MSE-2B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

Click to enlarge
CLEVELAND
B00241

Bassett B00241 MSE-2B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

Bassett B00241 MSE-2B Ball Nose Center Cutting General Purpose Regular Length Single End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 2 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, TiAlN Coated

Catalog Number:
Manufacturer: Greenfield
Brand: CLEVELAND
Item ID: GRFL B00241
MPN: B00241
Min Order Qty: 1

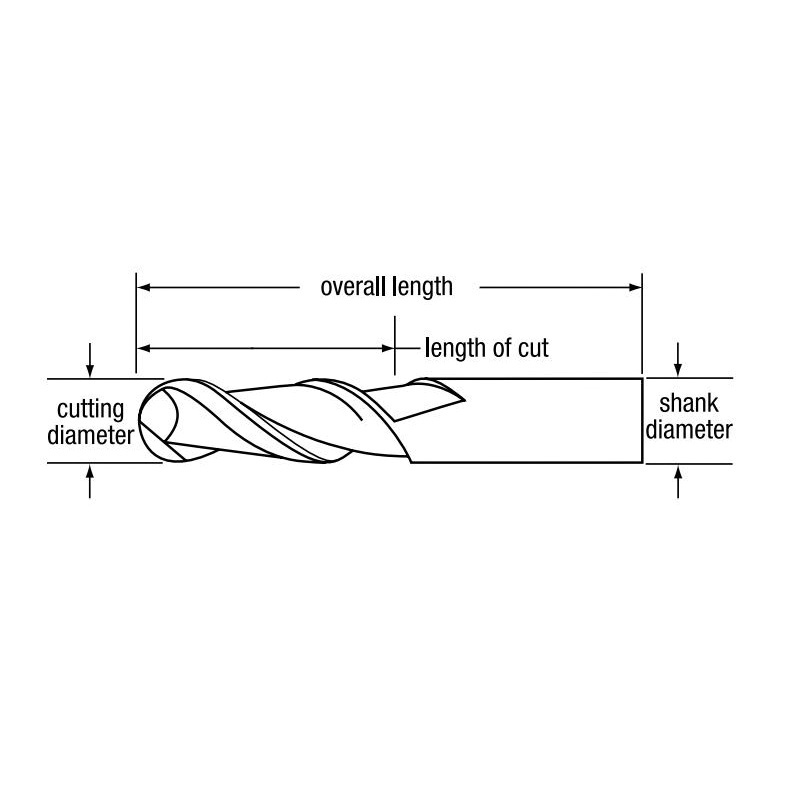

Bassett End Mill, Ball Nose Center Cutting General Purpose Regular Length Single End, Series: MSE-2B, 5/16 in Diameter Cutter, 2-1/2 in Overall Length, 13/16 in Length of Cut, 2 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated

Sold As: 1/PK
Springfield

Features

  • 10% Cobalt submicron grain carbide substrate
  • 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
  • Applicable on steel, cast iron, high temperature alloys, non-ferrous materials, low carbon steels and plastics

Specifications

Center Cutting
Yes
Coating/Finish
TiAlN
Cutter Diameter
5/16 in
Cutting Direction
Right Hand
Diameter (Decimal)
0.31
Diameter (Fractional)
5/16
Diameter (Metric)
7.94
Diameter
0.31 Inch
Finish
TiAlN Coated
Flute Type
Spiral
Hand Of Spiral
Right
Helix Angle
30 deg
LOC Designation
Regular
Length of Cut
13/16 in
Material
Solid Carbide
Number Of Flutes
2
Overall Length (Decimal)
2.5
Overall Length
2-1/2 in
Series
MSE-2B
Shank Diameter
5/16 in
Shank Size (Decimal)
0.31
Shank Size
0.31 Inch
Shank Type
Straight
Type
Ball Nose Center Cutting General Purpose Regular Length Single End
Unit of Measure
Imperial

Bassett End Mill, Ball Nose Center Cutting General Purpose Regular Length Single End, Series: MSE-2B, 5/16 in Diameter Cutter, 2-1/2 in Overall Length, 13/16 in Length of Cut, 2 Flutes, Spiral Flute, 5/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Solid Carbide, TiAlN Coated
