CLEVELAND
C42184

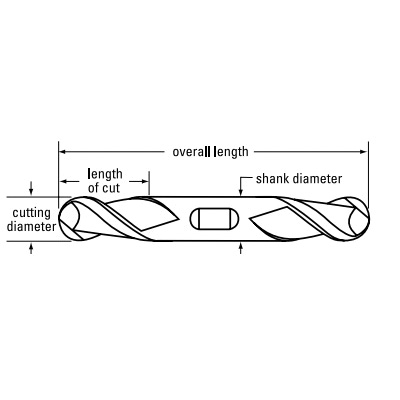

Cleveland® C42184 HD-2B Ball Nose Center Cutting Double End General Purpose End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/16 in OAL, Bright

Cleveland® C42184 HD-2B Ball Nose Center Cutting Double End General Purpose End Mill, 1/8 in Dia Cutter, 3/8 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-1/16 in OAL, Bright

Catalog Number:
Manufacturer: Greenfield
Brand: CLEVELAND
Item ID: CTDT C42184
MPN: C42184
Min Order Qty: 1

Cleveland® End Mill, Ball Nose Center Cutting Double End General Purpose, Series: HD-2B, 1/8 in Diameter Cutter, 3-1/16 in Overall Length, 3/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Bright

Sold As: 1/PK

Features

  • 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Applicable on alloy steel, tool steel, carbon steel and cast iron

Specifications

Center Cutting
Yes
Coating/Finish
Bright
Cutter Diameter
1/8 in
Cutting Direction
Right Hand
Diameter (Decimal)
0.13
Diameter (Fractional)
1/8
Diameter (Metric)
3.18
Diameter
0.13 Inch
Double Ended
Yes
Finish
Bright
Flute Type
Spiral
Hand Of Spiral
Right
Helix Angle
30 deg
Length of Cut
3/8 in
Material
HSS
Number Of Flutes
2
Overall Length (Decimal)
3.06
Overall Length (Metric)
77.79
Overall Length
3-1/16 in
Series
HD-2B
Shank Diameter
3/8 in
Shank Size (Decimal)
0.38
Shank Size (Metric)
9.52
Shank Size
0.38 Inch
Shank Type
Straight/Weldon Flat
Type
Ball Nose Center Cutting Double End General Purpose
Unit of Measure
Imperial

Cleveland® End Mill, Ball Nose Center Cutting Double End General Purpose, Series: HD-2B, 1/8 in Diameter Cutter, 3-1/16 in Overall Length, 3/8 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Bright
