COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure
COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure
COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure
COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure
COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure
COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure

Click to enlarge
COXREELS
112-3-150-CM

COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure

COXREELS® 112-3-150-CM CM Series Hand Crank Caddy Hose Reel, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure

Catalog Number:
Manufacturer: COXREELS
Brand: COXREELS
Item ID: COXR 112-3-150-CM
MPN: 112-3-150-CM
Min Order Qty: 1

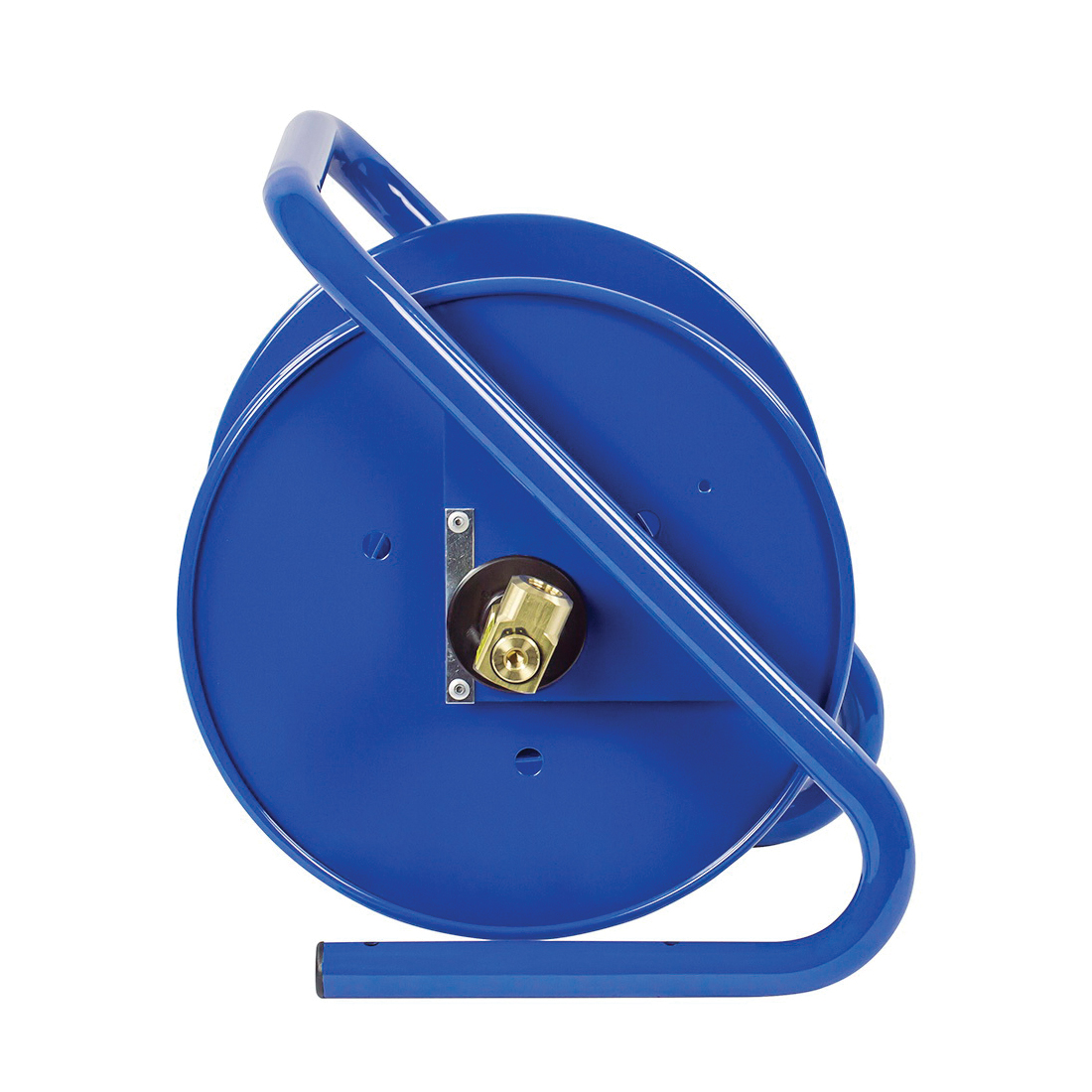

COXREELS® CM Series caddy mount Hand Crank Hose Reels offer lightweight, compact portability for long lengths of hose. Eliminate the task of manually coiling and uncoiling hose and easily transport it to the job site with its convenient carrying handle. High pressure applications are no problem with a 4000 psi rating. Also, a 4 ft inlet hose with 3/4 in female fitting and male garden adapter is available with this series for use with garden hose. See options below.

COXREELS® Hand Crank Caddy Hose Reel, Series: CM Series, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure, Hand Crank Drive, Floor/Vehicle/Wall Mounting, Brass Swivel, Nitrile Seal, 13-1/8 in L x 23 in W x 14-3/4 in H Dimensions, Steel, CPC™ Powder Coated

Features

  • Swivel - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation
  • No need to remove the reel from its mount
  • Frame design - high quality one-piece 1 in steel tube frame structure
  • Base has holes for temporary or permanent installation
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Adjustable tension brake - tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage
  • Steel construction - high quality steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, hose control bar and direct hand crank for easy mechanical retraction
  • Without hose

Specifications

Dimensions
13-1/8 in L x 23 in W x 14-3/4 in H
Drive Type
Hand Crank
Finish
CPC™ Powder Coated
Hose Capacity
3/8 in ID x 5/8 in OD x 150 ft L
Material
Steel
Mounting Type
Floor/Vehicle/Wall
Pressure Rating
4000 psi
Seal Type
Nitrile
Series
CM Series
Swivel Material
Brass

COXREELS® CM Series caddy mount Hand Crank Hose Reels offer lightweight, compact portability for long lengths of hose. Eliminate the task of manually coiling and uncoiling hose and easily transport it to the job site with its convenient carrying handle. High pressure applications are no problem with a 4000 psi rating. Also, a 4 ft inlet hose with 3/4 in female fitting and male garden adapter is available with this series for use with garden hose. See options below.

COXREELS® Hand Crank Caddy Hose Reel, Series: CM Series, 3/8 in ID x 5/8 in OD x 150 ft L Hose, 4000 psi Pressure, Hand Crank Drive, Floor/Vehicle/Wall Mounting, Brass Swivel, Nitrile Seal, 13-1/8 in L x 23 in W x 14-3/4 in H Dimensions, Steel, CPC™ Powder Coated
