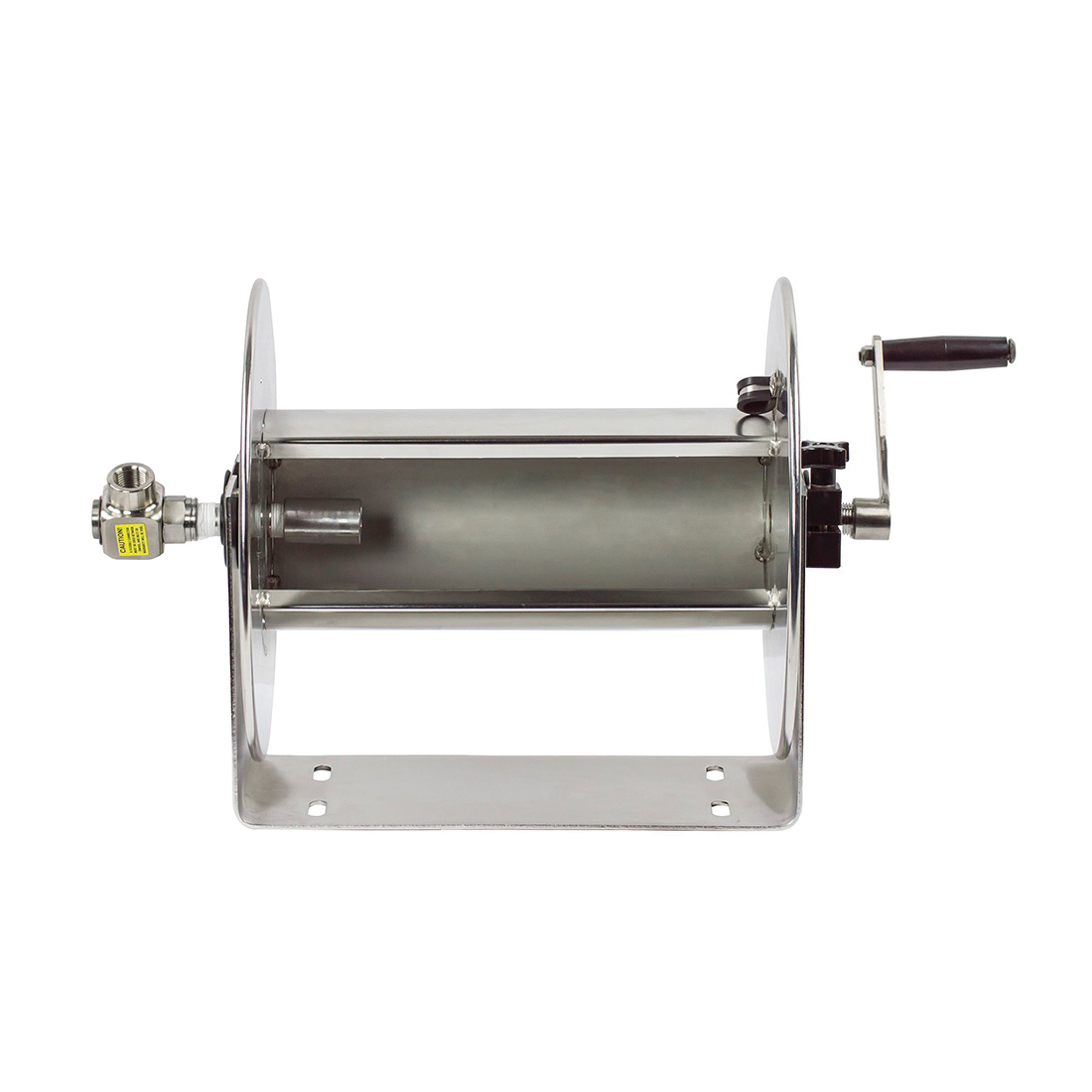

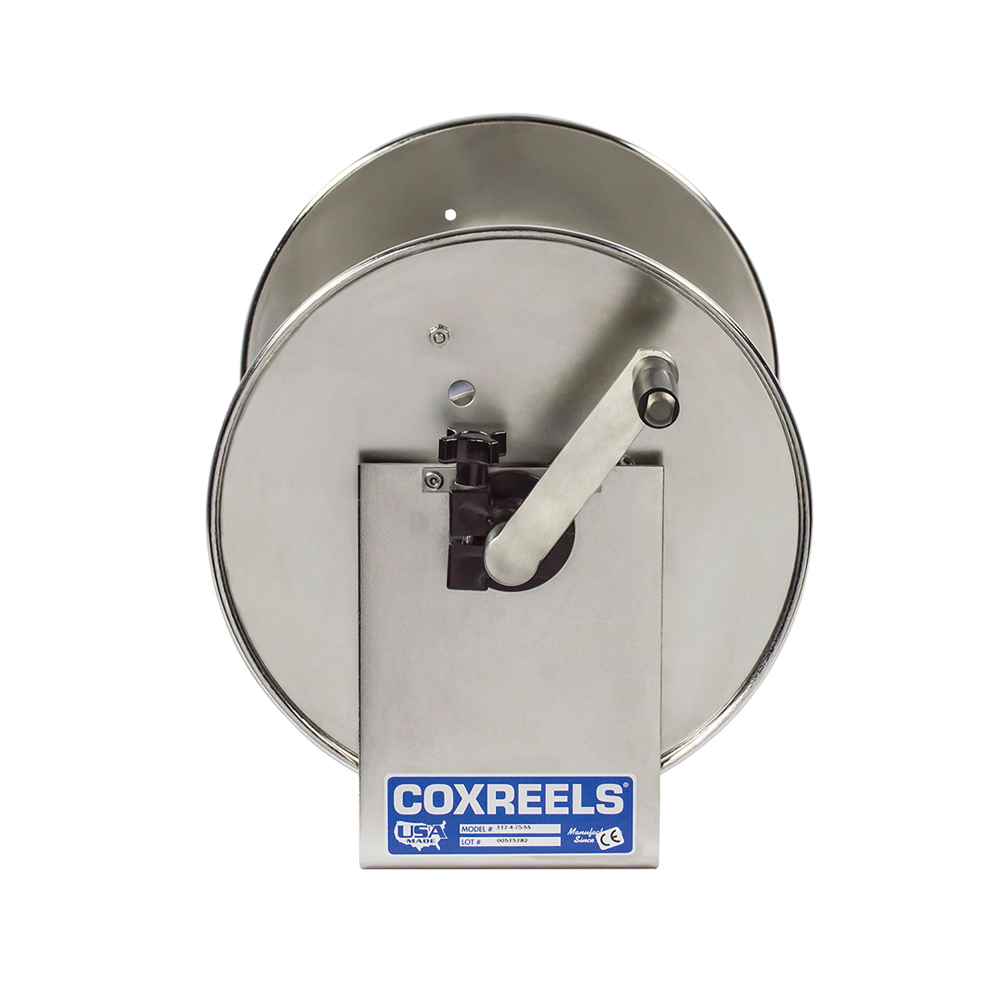

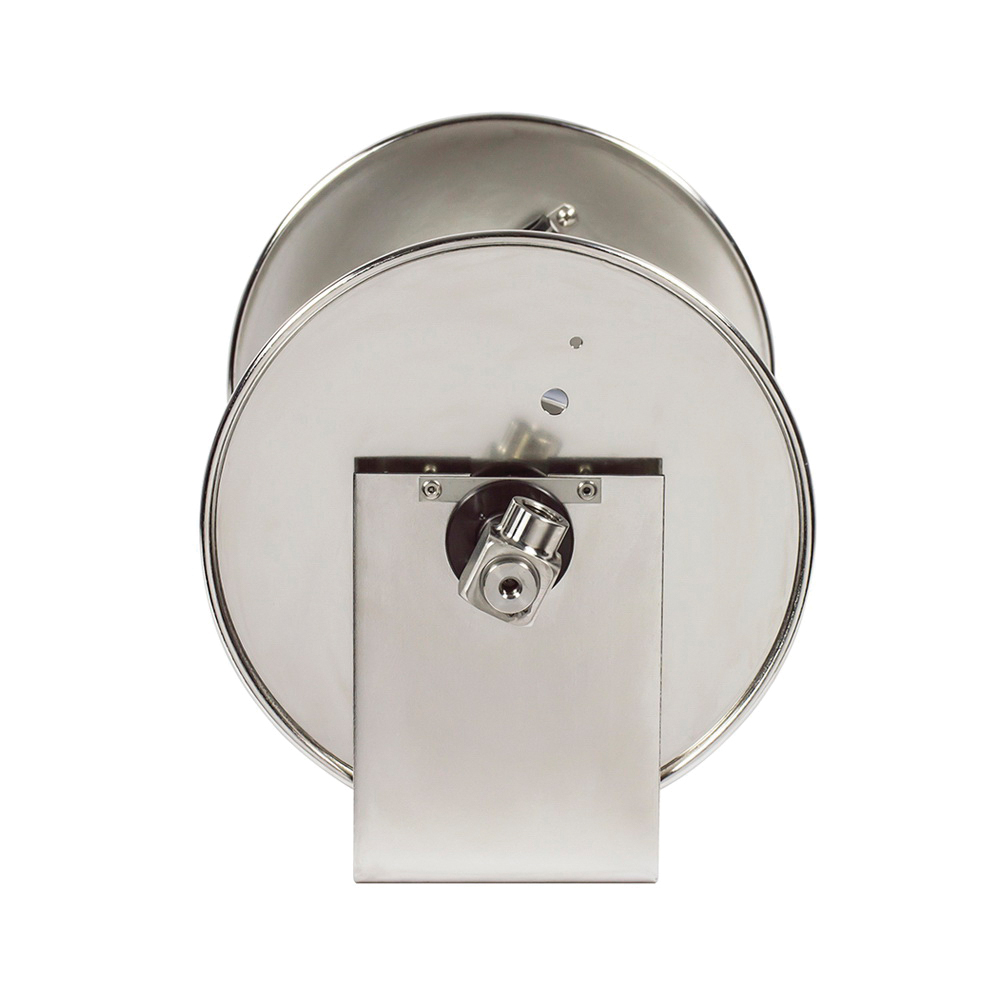

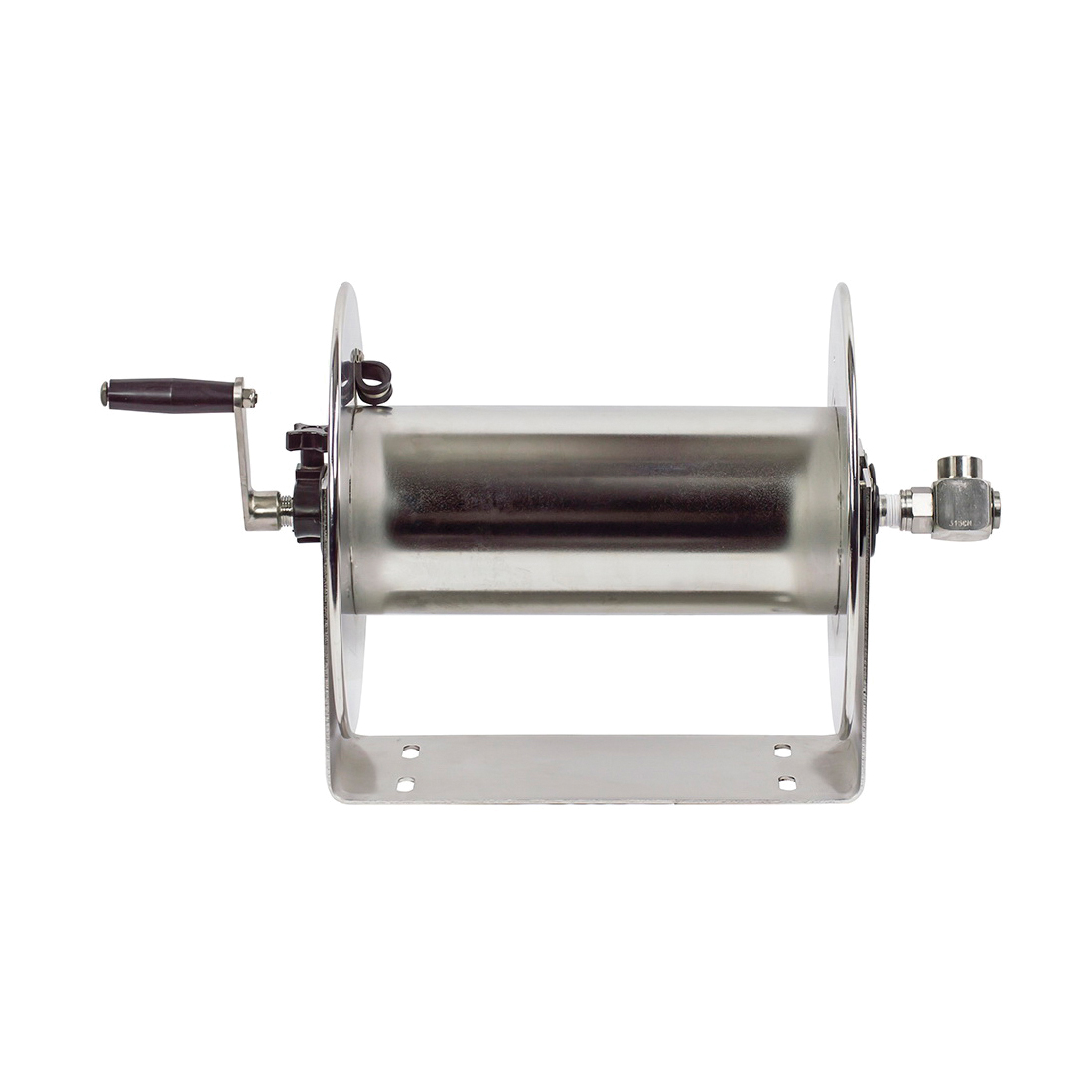

COXREELS® 112-4-75-SS 100 Stainless Steel Series Hand Crank Hose Reel, 1/2 in ID x 7/8 in OD x 75 ft L Hose, 4000 psi Pressure

COXREELS® 112-4-75-SS 100 Stainless Steel Series Hand Crank Hose Reel, 1/2 in ID x 7/8 in OD x 75 ft L Hose, 4000 psi Pressure

Catalog Number:
Manufacturer: COXREELS
Brand: COXREELS
Item ID: COXR 112-4-75-SS
MPN: 112-4-75-SS
Min Order Qty: 1

COXREELS® SS Series stainless steel Hand Crank Hose Reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas and anywhere that rust, corrosion and contamination thrive.

COXREELS® Hand Crank Hose Reel, Series: 100 Stainless Steel Series, 1/2 in ID x 7/8 in OD x 75 ft L Hose, 4000 psi Pressure, Hand Crank Drive, Floor/Vehicle/Wall Mounting, Stainless Steel Swivel, Nitrile Seal, 12 in L x 22-3/4 in W x 13 in H Dimensions, Stainless Steel, Electro-Polished

Features

  • Swivel - non-corrosive external fluid path with machined from high quality stainless steel 90 deg full flow NPT swivel inlet
  • U-shaped frame design - solid one-piece electro-polished finish stainless steel U shaped frame
  • Professional grade, compact, lightweight and simple design
  • CNC spun disc - heavy duty stainless steel CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Adjustable tension brake - tension brake adjusts the speed of the draw to your desired preference and prevents your reel from free wheeling during operation, transport or storage
  • Steel construction - high quality stainless steel construction provides superior strength and durability for heavy duty applications in commercial and industrial settings
  • Electro-polished stainless steel finish, long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish and direct hand crank for easy mechanical retraction
  • Without hose

Specifications

Dimensions
12 in L x 22-3/4 in W x 13 in H
Drive Type
Hand Crank
Finish
Electro-Polished
Hose Capacity
1/2 in ID x 7/8 in OD x 75 ft L
Material
Stainless Steel
Mounting Type
Floor/Vehicle/Wall
Pressure Rating
4000 psi
Seal Type
Nitrile
Series
100 Stainless Steel Series
Swivel Material
Stainless Steel

COXREELS® SS Series stainless steel Hand Crank Hose Reels have similar features to their related series, but are constructed of high quality electro-polished stainless steel with stainless steel fluid paths. They offer clean, non-corrosive performance in applications that require it, such as food and chemical processing, marinas and anywhere that rust, corrosion and contamination thrive.

COXREELS® Hand Crank Hose Reel, Series: 100 Stainless Steel Series, 1/2 in ID x 7/8 in OD x 75 ft L Hose, 4000 psi Pressure, Hand Crank Drive, Floor/Vehicle/Wall Mounting, Stainless Steel Swivel, Nitrile Seal, 12 in L x 22-3/4 in W x 13 in H Dimensions, Stainless Steel, Electro-Polished
