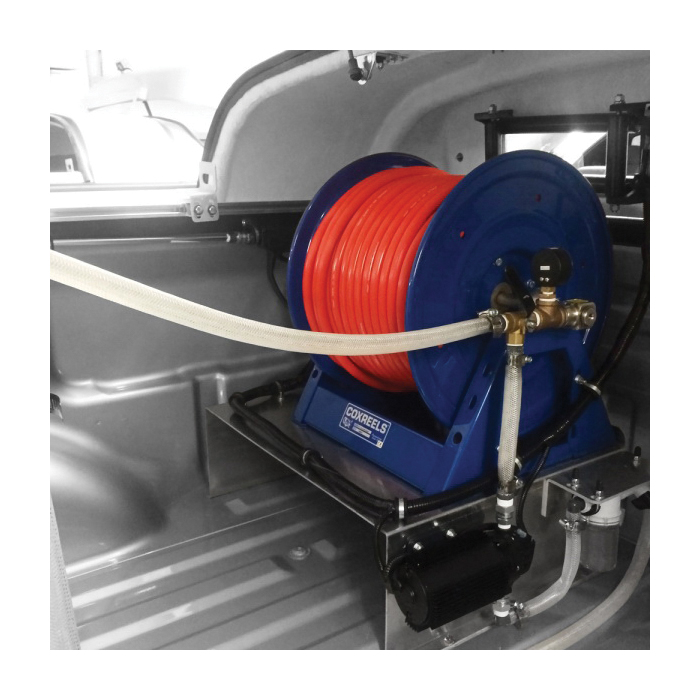

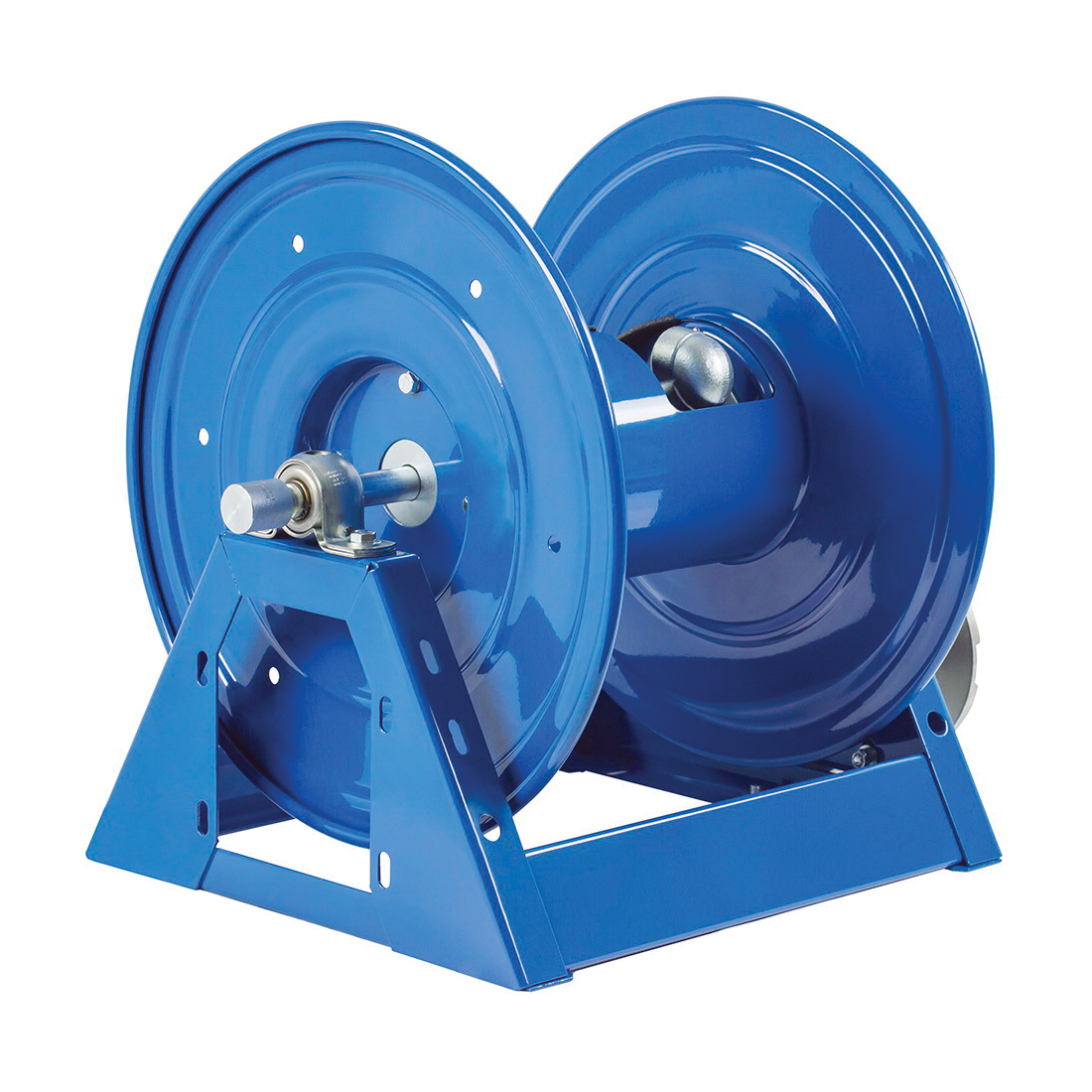

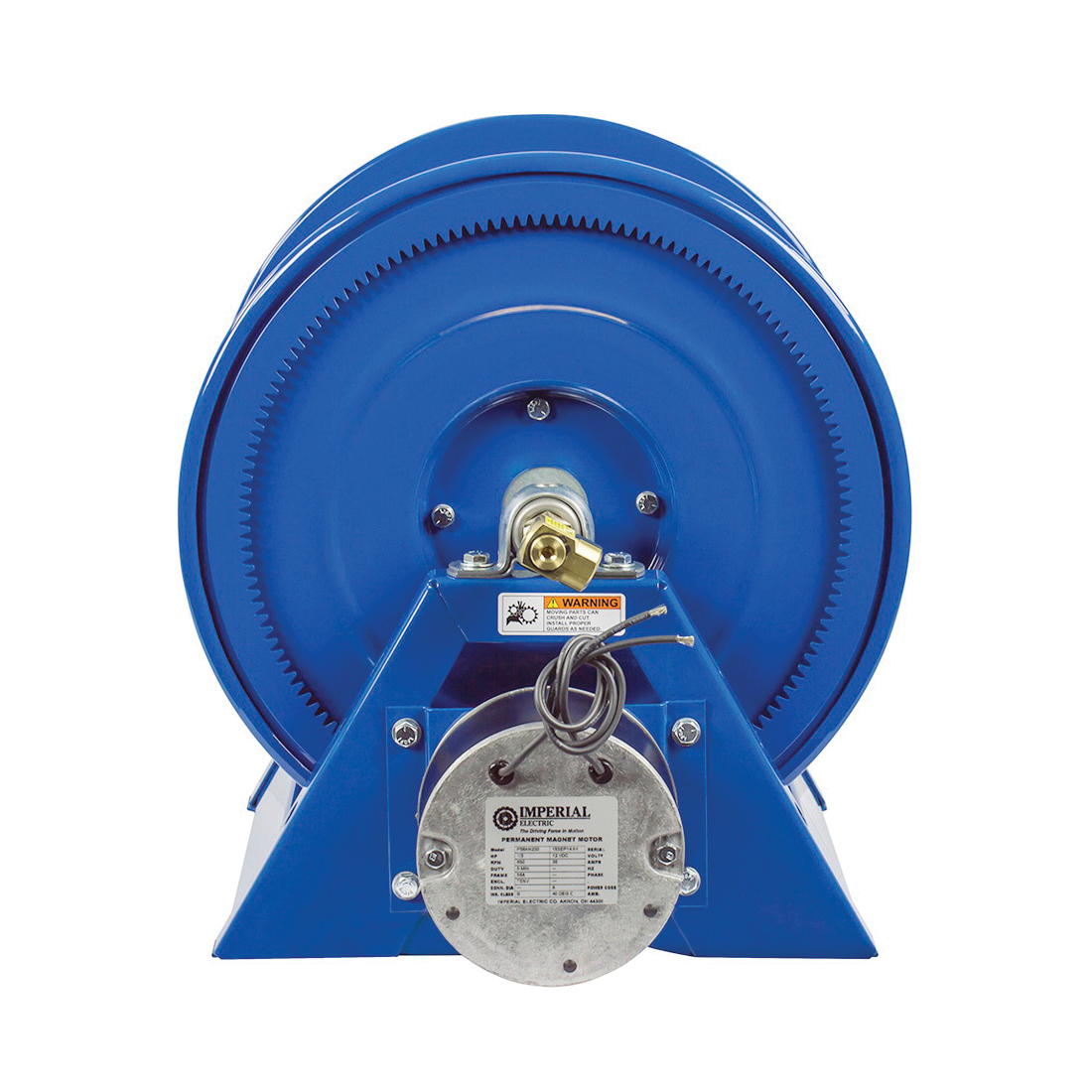

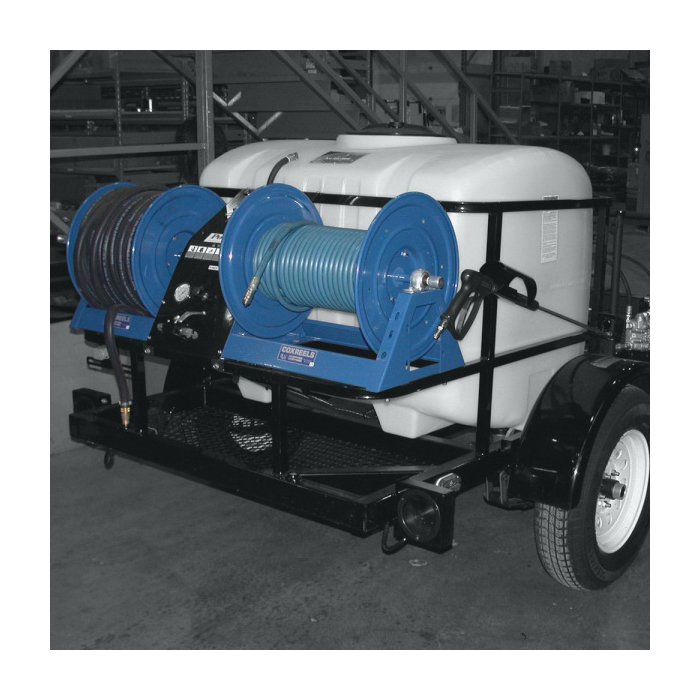

COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure
COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure
COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure
COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure
COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure
COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure

Click to enlarge
COXREELS
1125-4-325-E

COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure

COXREELS® 1125-4-325-E Reversible Motorized Hose Reel, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure

Catalog Number:
Manufacturer: COXREELS
Brand: COXREELS
Item ID: COXR 1125-4-325-E
MPN: 1125-4-325-E
Min Order Qty: 1

COXREELS® 1125 Series Motorized Hose Reels have the features demanded by industry professionals. The industry preferred design features a sturdy one-piece all welded A-frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

COXREELS® Motorized Hose Reel, Reversible, Series: 1125 Series, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure, Electric Motor/Direct Hand Crank Drive, 12 V DC, 1/3 hp Electrical Rating, Floor/Vehicle/Wall Mounting, Brass Swivel, Nitrile Seal, 17-5/8 in L x 31-3/4 in W x 19-1/4 in H Dimensions, Steel, CPC™ Powder Coated

Features

  • Swivel - machined from solid brass 90 deg full flow NPT swivel for simple seal maintenance and fast and easy hose installation
  • No need to remove the reel from its mount
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • Outlet riser - exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap
  • A-frame - sturdy one-piece, all CNC robotically welded 12 ga steel A-frame base, not bolted, for superior reel structure
  • Mounting pattern located in the steel base for easy reel installation and detachment
  • Permanently lubricated bearing - sturdy permanently lubricated and self-aligning pillow block bearing for smooth rotation and trouble-free operation
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish and electrical 12 VDC, 1/3 hp reversible motor
  • Without hose

Specifications

Dimensions
17-5/8 in L x 31-3/4 in W x 19-1/4 in H
Drive Type
Electric Motor/Direct Hand Crank
Electrical Ratings
12 V DC, 1/3 hp
Finish
CPC™ Powder Coated
Hose Capacity
1/2 in ID x 7/8 in OD x 325 ft L
Material
Steel
Mounting Type
Floor/Vehicle/Wall
Pressure Rating
3000 psi
Seal Type
Nitrile
Series
1125 Series
Swivel Material
Brass
Type
Reversible

COXREELS® 1125 Series Motorized Hose Reels have the features demanded by industry professionals. The industry preferred design features a sturdy one-piece all welded A-frame base, low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.

COXREELS® Motorized Hose Reel, Reversible, Series: 1125 Series, 1/2 in ID x 7/8 in OD x 325 ft L Hose, 3000 psi Pressure, Electric Motor/Direct Hand Crank Drive, 12 V DC, 1/3 hp Electrical Rating, Floor/Vehicle/Wall Mounting, Brass Swivel, Nitrile Seal, 17-5/8 in L x 31-3/4 in W x 19-1/4 in H Dimensions, Steel, CPC™ Powder Coated
