COXREELS
PC13-3512-A

COXREELS® PC13-3512-A 1-Pedestal Spring Driven Cord Reel, 115 V, 20 A, 35 ft L Cord, 12/3 AWG Conductor

COXREELS® PC13-3512-A 1-Pedestal Spring Driven Cord Reel, 115 V, 20 A, 35 ft L Cord, 12/3 AWG Conductor

Catalog Number:
Manufacturer: COXREELS
Brand: COXREELS
Item ID: COXR PC13-3512
MPN: PC13-3512-A
Min Order Qty: 1

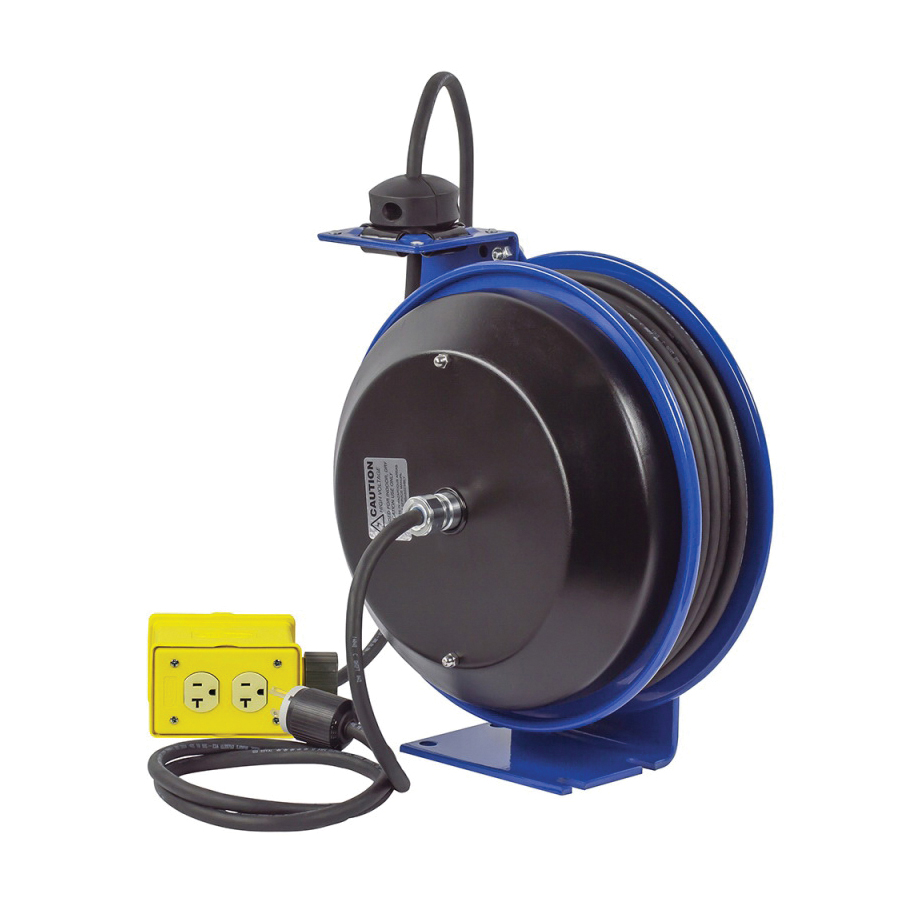

COXREELS® PC Series Spring Driven Power Cord Reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH series, the PC Series are designed for long lasting, trouble free performance even under the most demanding conditions.

COXREELS® Spring Driven Cord Reel, 1-Pedestal, Series: PC Series, 115 V, 20 A, 35 ft Cord Length, 12/3 AWG Conductor, Steel Reel, Bench/Ceiling/Floor/Vehicle Reel Mounting, Single Industrial Receptacle, Industrial Grade, Steel, 13-1/2 in L x 8-1/2 in W x 14-7/8 in H Dimensions

Features

  • Rolled edges and ribbed discs provide strength and safety
  • Made in the USA - sold and supported worldwide
  • Component cover - external, easily accessible, heavy gauge CPC™ powder coated steel components cover for fast and simple slip ring routine maintenance
  • No need to remove the reel from its mount
  • CNC spun disc - heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
  • 1/4 in steel base - sturdy single pedestal design with solid one-piece steel base and support post, no weld, for maximum stability
  • Multi-position guide arm - versatile guide arm adjusts to wall, floor, ceiling and vehicle mounting positions
  • Long-lasting, chip-resistant and rust inhibiting CPC™ powder coat finish, adjustable solid rubber cord stop, 5 ft lead cable and grounding plug, sturdy permanently lubricated precision bearing and single industrial receptacle

Specifications

Amperage Rating
20 A
Conductor Size
12/3 AWG
Cord Length
35 ft
Dimensions
13-1/2 in L x 8-1/2 in W x 14-7/8 in H
Grade
Industrial
Material
Steel
Receptacle Type
Single Industrial
Reel Material
Steel
Reel Mounting Type
Bench/Ceiling/Floor/Vehicle
Series
PC Series
Type
1-Pedestal
Voltage Rating
115 V

COXREELS® PC Series Spring Driven Power Cord Reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH series, the PC Series are designed for long lasting, trouble free performance even under the most demanding conditions.

COXREELS® Spring Driven Cord Reel, 1-Pedestal, Series: PC Series, 115 V, 20 A, 35 ft Cord Length, 12/3 AWG Conductor, Steel Reel, Bench/Ceiling/Floor/Vehicle Reel Mounting, Single Industrial Receptacle, Industrial Grade, Steel, 13-1/2 in L x 8-1/2 in W x 14-7/8 in H Dimensions
