DESTACO INDUSTRIES
2007-U

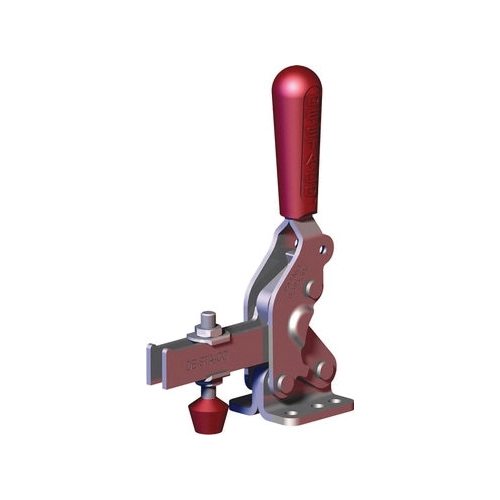

DESTACO 2007-U Standard Vertical Hold-Down Toggle Locking Clamp, Steel, 1000 lb, 1-1/4 in, M8x1.25
DESTACO 2007-U Standard Vertical Hold-Down Toggle Locking Clamp, Steel, 1000 lb, 1-1/4 in, M8x1.25
Catalog Number:
Manufacturer: DESTACO INDUSTRIES
Brand: DESTACO INDUSTRIES
Item ID: DEST 2007-U
MPN: 2007-U
Min Order Qty: 1
DESTACO Toggle Locking Clamp, Standard Vertical Hold-Down, Series: 2007 Series, 1000 lb Holding, 1-1/4 in Height Under Arm, 7.17 in Overall Height, 6.6 in Overall Length, M8x1.25 Thread, Straight Handle, U-Bar Bar, 76 deg Bar Opening, Flanged Base, 3/4 x 1-1/4 in Mounting Centers, Steel, Electro Plated Zinc
Sold As: 1/PK
Features
- New generation toggle clamp with over 2.5X the capacity of our legacy models
- Longer handle with greater hand clearance
- Longer clamp arm
- Spindle contacts workpiece vertically
Specifications
Bar Opening
76 deg
Bar Type
U-Bar
Base Type
Flanged
Finish
Electro Plated Zinc
Handle Type
Straight
Height Under Arm
1-1/4 in
Holding Capacity
1000 lb
Material
Steel
Mounting Centers
3/4 x 1-1/4 in
Overall Height
7.17 in
Overall Length
6.6 in
Series
2007 Series
Thread Size
M8x1.25
Type
Standard Vertical Hold-Down
DESTACO Toggle Locking Clamp, Standard Vertical Hold-Down, Series: 2007 Series, 1000 lb Holding, 1-1/4 in Height Under Arm, 7.17 in Overall Height, 6.6 in Overall Length, M8x1.25 Thread, Straight Handle, U-Bar Bar, 76 deg Bar Opening, Flanged Base, 3/4 x 1-1/4 in Mounting Centers, Steel, Electro Plated Zinc
