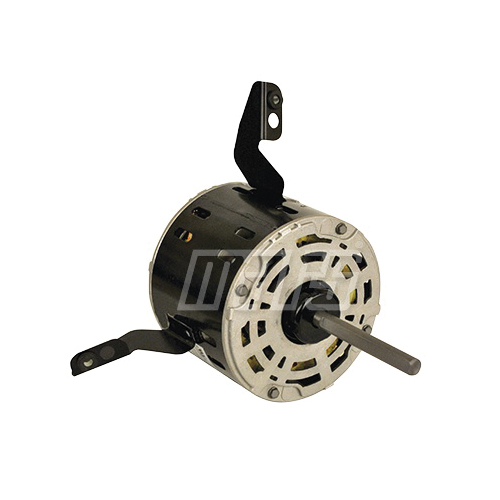

Mars® 10690 Direct Drive Blower Motor, OAO Enclosure, 3/4 hp, 208 to 230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Torsion Flex Mount
Mars® 10690 Direct Drive Blower Motor, OAO Enclosure, 3/4 hp, 208 to 230 V AC, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed, Torsion Flex Mount
Mars® torsion flex mount motors are designed for direct drive furnace blower applications. The unique torsion flex mounting speeds installationwhile the special steel of the torsion flex bracket absorbs vibration for quieter operations. All models are electrically reversible, 3 speed motors.
Mars® Direct Drive Blower Motor, Fan & Blower Motors Application, 3/4 hp, 208 to 230 V AC, 4.5 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, Sleeve Bearing, Torsion Flex Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
Features
- Fan duty, continuous, air-over
- Automatic overload thermal protection
- Capacitor not included
- 10 uF at 370 VAC capacitor required
Specifications
Mars® torsion flex mount motors are designed for direct drive furnace blower applications. The unique torsion flex mounting speeds installationwhile the special steel of the torsion flex bracket absorbs vibration for quieter operations. All models are electrically reversible, 3 speed motors.
Mars® Direct Drive Blower Motor, Fan & Blower Motors Application, 3/4 hp, 208 to 230 V AC, 4.5 A Full Load, 60 Hz Frequency, 1 ph, 1075 rpm Speed, 3 Speed, OAO Enclosure, 48 Frame, 1/2 in Dia x 4-1/2 in L Shaft, Reversible Rotation, Sleeve Bearing, Torsion Flex Mounting, 60 deg C, Insulation Class: Class B, 5-1/2 in Dia Dimensions
