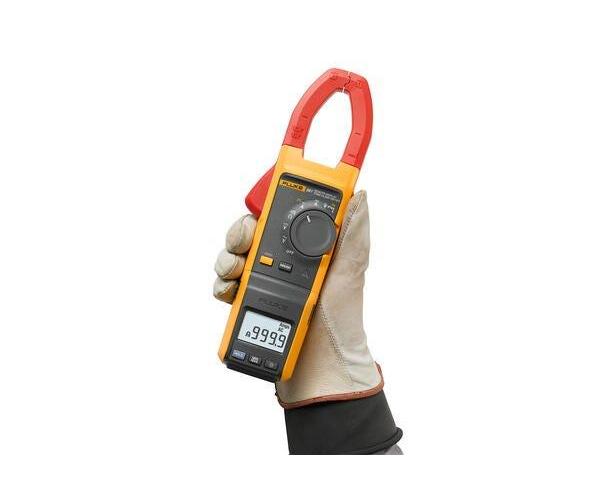

Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display
Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display
Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display
Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display
Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display

Click to enlarge
FLUKE ELECTRONICS
5065875

Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display

Fluke® 5065875 Clamp Meter, 999.9 A, 600/1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-7/16 in Jaw, LCD Backlit Display

Catalog Number:
Manufacturer: Fluke Electronics
Brand: FLUKE ELECTRONICS
Item ID: FLUK 5065875
MPN: 5065875
Min Order Qty: 1

Fluke®, 5065875, Clamp Meter, 999.9 A, 600/1000 V AC/V DC Electrical Rating, 60000 Ohm Resistance, 5 to 500 Hz Frequency, 1-7/16 in Jaw, 6000 Count, LCD Backlit Display, 3% +/- 5 Digits AC Current Accuracy, 1.5% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -10 to 50 deg C Operating, 43 mm H x 88 mm W x 277 mm L Dimensions, Yellow

Features

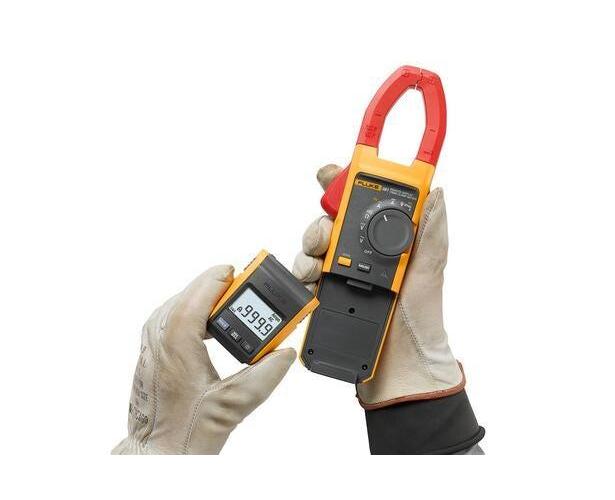

  • Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement with measurement accuracy
  • Removable magnetic display can be mounted where it is easily seen

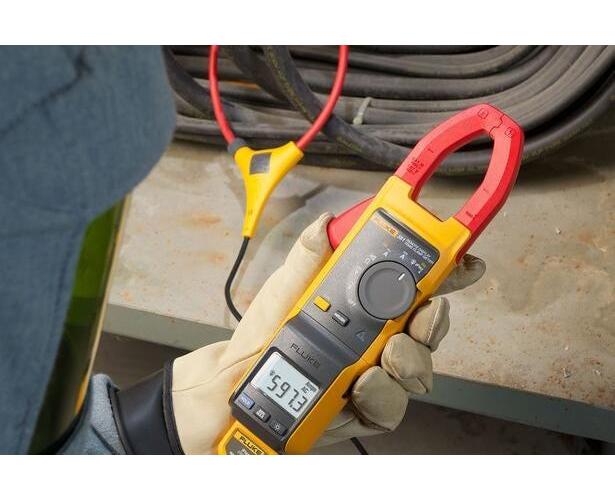

  • iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
  • Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
  • Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
  • Ergonomic design fits in your hand and can be used while wearing protective equipment
  • Radio transmitter automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Specifications

AC Current Accuracy
3% +/- 5 Digits
Color
Yellow
Counts
6000
Dimensions
43 mm H x 88 mm W x 277 mm L
Display Type
LCD Backlit
Electrical Ratings
999.9 A, 600/1000 V AC/V DC
Frequency Rating
5 to 500 Hz
Jaw Capacity
1-7/16 in
Operating Temperature
-10 to 50 deg C
Power Source
AA Alkaline Battery
Resistance
60000 Ohm
Safety Rating
CAT IV 600 V, CAT III 1000 V
Voltage Accuracy
1.5% +/-5 Digits

Fluke®, 5065875, Clamp Meter, 999.9 A, 600/1000 V AC/V DC Electrical Rating, 60000 Ohm Resistance, 5 to 500 Hz Frequency, 1-7/16 in Jaw, 6000 Count, LCD Backlit Display, 3% +/- 5 Digits AC Current Accuracy, 1.5% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -10 to 50 deg C Operating, 43 mm H x 88 mm W x 277 mm L Dimensions, Yellow
