Fluke® 5065965 Clamp Meter, 999.9 A, 1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-1/8 in Jaw, LCD Backlit Display

Fluke® 5065965 Clamp Meter, 999.9 A, 1000 V AC/V DC, 60000 Ohm, 5 to 500 Hz, 1-1/8 in Jaw, LCD Backlit Display

Catalog Number:
Manufacturer: Fluke Electronics
Brand: FLUKE ELECTRONICS
Item ID: FLUK 5065965
MPN: 5065965
Min Order Qty: 1
Minimum order quantities may apply.

Fluke®, 5065965, Clamp Meter, 999.9 A, 1000 V AC/V DC Electrical Rating, 60000 Ohm Resistance, 5 to 500 Hz Frequency, 1-1/8 in Jaw, 6000 Count, LCD Backlit Display, 3% +/- 5 Digits AC Current Accuracy, 1% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -10 to 50 deg C Operating, 45 mm H x 85 mm W x 249 mm L Dimensions, Yellow

Features

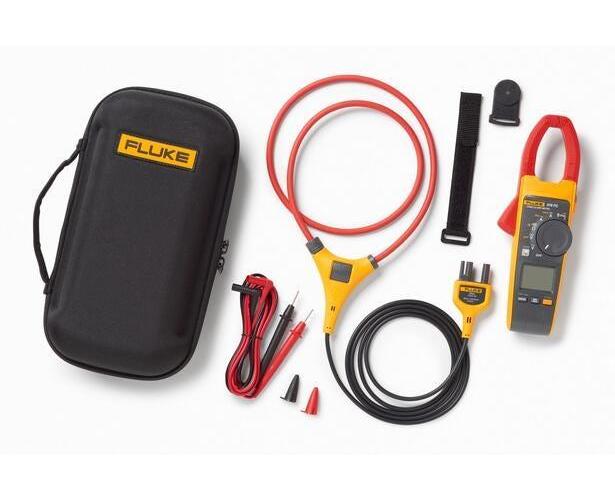

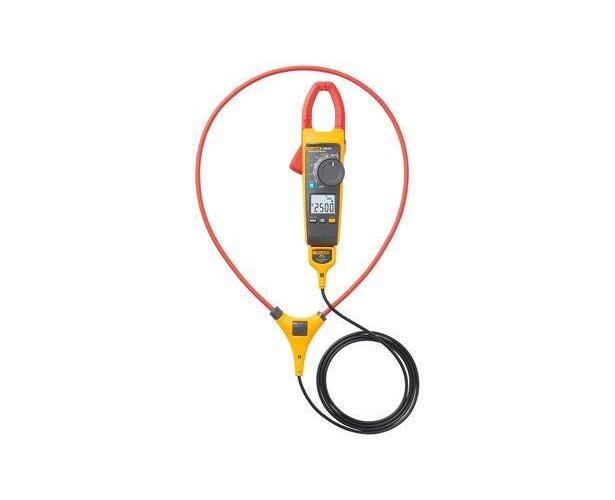

  • Measures AC/DC current with included iFlex current probe
  • VFD low pass filter for accurate measurements of non-linear signals

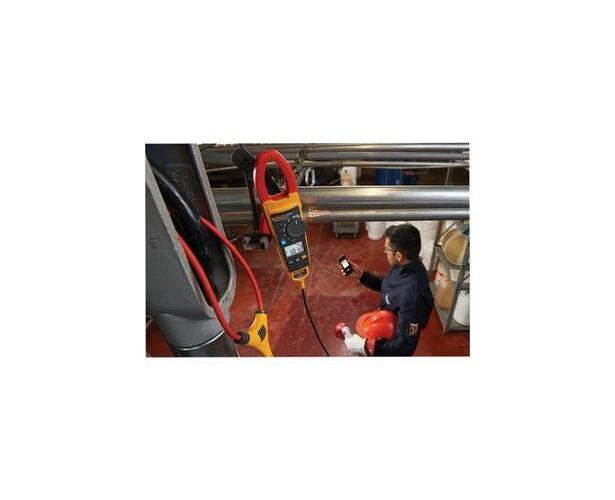

  • Remotely log, trend and monitor to pinpoint intermittent faults
  • Inrush measurement to filter out noise and capture starting current
  • Min, max, average, and inrush recording to capture variations automatically 500 mV DC measurement range to interface with other accessories
  • 500 mV DC measurement range to interface with other accessories

Specifications

AC Current Accuracy
3% +/- 5 Digits
Color
Yellow
Counts
6000
Dimensions
45 mm H x 85 mm W x 249 mm L
Display Type
LCD Backlit
Electrical Ratings
999.9 A, 1000 V AC/V DC
Frequency Rating
5 to 500 Hz
Jaw Capacity
1-1/8 in
Operating Temperature
-10 to 50 deg C
Power Source
AA Alkaline Battery
Resistance
60000 Ohm
Safety Rating
CAT IV 600 V, CAT III 1000 V
Voltage Accuracy
1% +/-5 Digits

Fluke®, 5065965, Clamp Meter, 999.9 A, 1000 V AC/V DC Electrical Rating, 60000 Ohm Resistance, 5 to 500 Hz Frequency, 1-1/8 in Jaw, 6000 Count, LCD Backlit Display, 3% +/- 5 Digits AC Current Accuracy, 1% +/-5 Digits Voltage Accuracy, Safety Rating: CAT IV 600 V, CAT III 1000 V, AA Alkaline Battery Power Source, -10 to 50 deg C Operating, 45 mm H x 85 mm W x 249 mm L Dimensions, Yellow
