FREUD
16-108
Freud® 16-108 Router Bit, Down Shear Mortising Router, 1-1/4 in Dia Cutting, 2-3/8 in OAL, 1/2 in D Cutting, 2 Flutes, 1/2 in Dia Shank, Solid Carbide
Freud® 16-108 Router Bit, Down Shear Mortising Router, 1-1/4 in Dia Cutting, 2-3/8 in OAL, 1/2 in D Cutting, 2 Flutes, 1/2 in Dia Shank, Solid Carbide
Catalog Number:
Manufacturer: FREUD
Brand: FREUD
Item ID: FREU 16-108
MPN: 16-108
Min Order Qty: 1

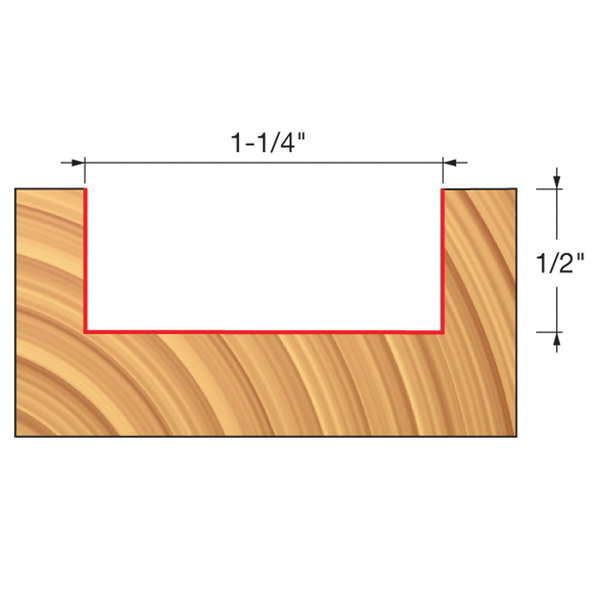

Freud® Router Bit, Down Shear Mortising Router Style, 1-1/4 in Diameter Cutting, 2-3/8 in Overall Length, 1/2 in Cutting Depth, 2 Flutes, 1/2 in Flute Length, 1/2 in Shank Diameter, 1-7/8 in Shank Length, Solid Carbide, Red Non-Stick Perma-SHIELD™ Coated
Features
- Freud® mortising bits are designed with deep center gullets for maximum material removal without chip loading
- Applicable material wood
- Cuts all composition materials, plywood's, hardwoods and softwoods
- Down shear works to eliminate splintering
- Use on CNC and other automatic routers as well as hand-held and table mounted portable routers
Specifications
Cutting Depth
1/2 in
Cutting Diameter
1-1/4 in
Finish
Red Non-Stick Perma-SHIELD™ Coated
Flute Length
1/2 in
Material
Solid Carbide
Number of Flutes
2
Overall Length
2-3/8 in
Router Style
Down Shear Mortising
Shank Diameter
1/2 in
Shank Length
1-7/8 in
Freud® Router Bit, Down Shear Mortising Router Style, 1-1/4 in Diameter Cutting, 2-3/8 in Overall Length, 1/2 in Cutting Depth, 2 Flutes, 1/2 in Flute Length, 1/2 in Shank Diameter, 1-7/8 in Shank Length, Solid Carbide, Red Non-Stick Perma-SHIELD™ Coated
