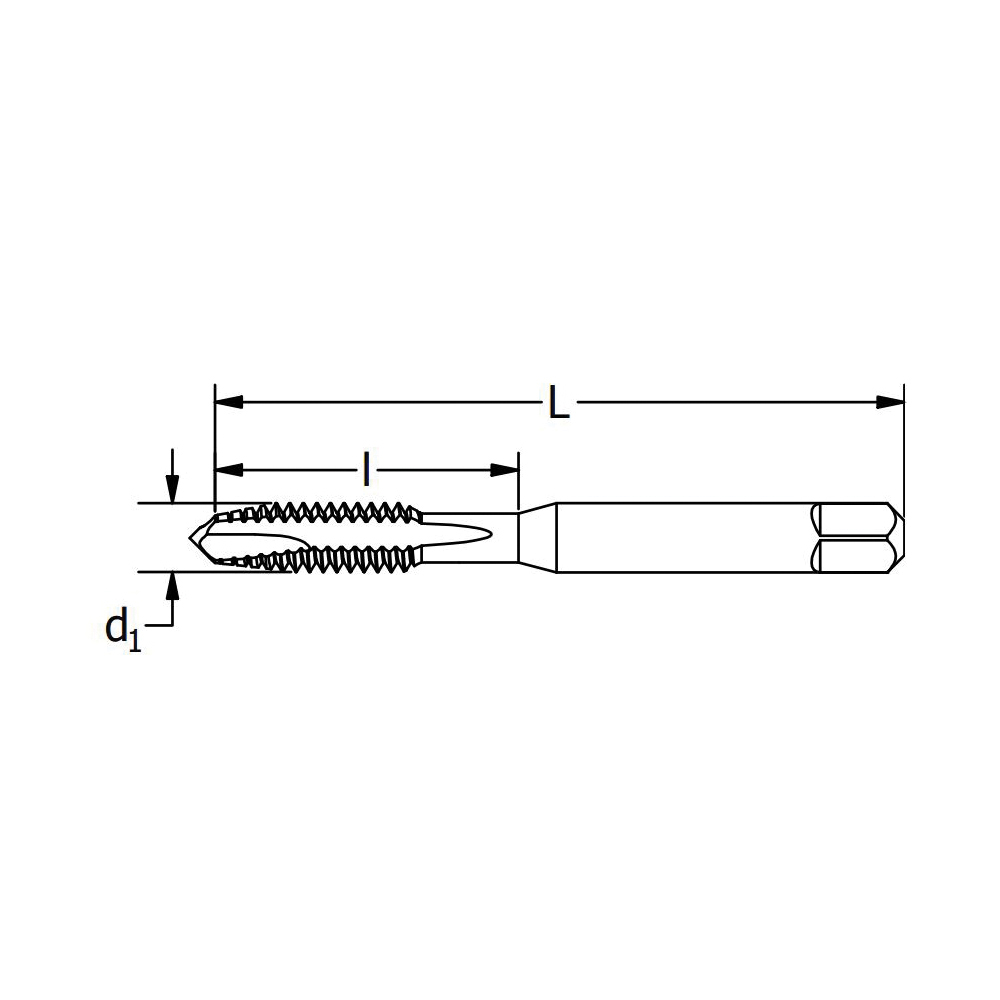

Greenfield Threading Vermont Tap and Die® 280207 SPHD CNC Heavy Duty Spiral Point Machine Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS
Greenfield Threading Vermont Tap and Die® 280207 SPHD CNC Heavy Duty Spiral Point Machine Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS
Greenfield Threading Vermont Tap and Die® 280207 SPHD CNC Heavy Duty Spiral Point Machine Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS

Click to enlarge
GREENFIELD
280207

Greenfield Threading Vermont Tap and Die® 280207 SPHD CNC Heavy Duty Spiral Point Machine Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS

Greenfield Threading Vermont Tap and Die® 280207 SPHD CNC Heavy Duty Spiral Point Machine Tap, Right Hand Cutting, #10-24 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, TiN Coated, HSS

Catalog Number:
Manufacturer: Greenfield
Brand: GREENFIELD
Item ID: GRFL 280207
MPN: 280207
Min Order Qty: 1

Greenfield Threading Vermont Tap and Die® Spiral Point Machine Tap, CNC Heavy Duty, Series: SPHD, Ground/UNC Thread Standard, #10-24 Thread, Plug Chamfer, 3 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 1/2 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Diameter, 1/4 in Shank Length, Steel and Stainless Steel Material Application, H3 Thread Limit

Sold As: 1/PK
Springfield

Specifications

Chamfer Type
Plug
Class of Fit
2B
Coating/Finish
TiN
Cutting Direction
Right Hand
Depth Of Cut
2xD
Diameter (Decimal)
0.19
Diameter (Metric)
4.83
Diameter
0.19 Inch
Finish/Coating
TiN Coated
Flute Type
Straight
Material Application
Steel and Stainless Steel
Material
HSS
Number Of Flutes
3
Operation Type
Thru Hole
Overall Length (Decimal)
2.38
Overall Length (Metric)
60.32
Overall Length
2-3/8 in
Series
SPHD
Shank Diameter
0.194 in
Shank Length
1/4 in
Shank Size (Decimal)
0.19
Shank Size (Metric)
4.93
Shank Square Length (Decimal)
0.25
Shank Square Width (Decimal)
0.15
Shank Type
Straight w/ Square
Tap Blank Construction
USCTI Table 302A
Tap Construction
CNC Heavy Duty
Tap Ground Threads
Yes
Tap Neck Length
0.88
Tap Spiral Point
Yes
Thread Length (Decimal)
0.5
Thread Length
1/2 in
Thread Limit
H3
Thread Pitch
24
Thread Size Decimal Equiv
0.19
Thread Size
#10-24
Thread Standard
Ground/UNC
Thread Tolerance
2B
Type
CNC Heavy Duty
Unit of Measure
Inch

Greenfield Threading Vermont Tap and Die® Spiral Point Machine Tap, CNC Heavy Duty, Series: SPHD, Ground/UNC Thread Standard, #10-24 Thread, Plug Chamfer, 3 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 1/2 in Thread Length, 2-3/8 in Overall Length, 0.194 in Shank Diameter, 1/4 in Shank Length, Steel and Stainless Steel Material Application, H3 Thread Limit
