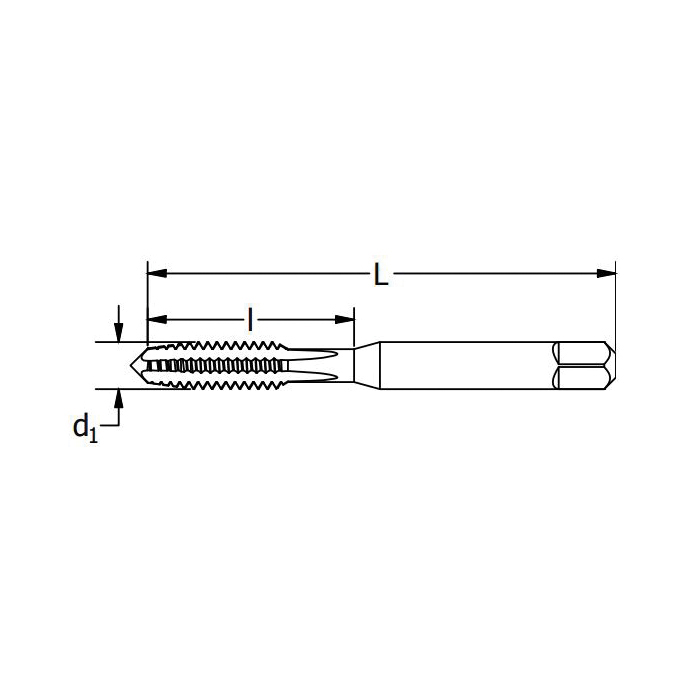

Greenfield Threading Vermont Tap and Die® 300047 HTGP-TN General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, #0-80 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, TiN Coated, HSS
Greenfield Threading Vermont Tap and Die® 300047 HTGP-TN General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, #0-80 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, TiN Coated, HSS
Greenfield Threading Vermont Tap and Die® 300047 HTGP-TN General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, #0-80 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, TiN Coated, HSS

Click to enlarge
GREENFIELD
300047

Greenfield Threading Vermont Tap and Die® 300047 HTGP-TN General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, #0-80 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, TiN Coated, HSS

Greenfield Threading Vermont Tap and Die® 300047 HTGP-TN General Purpose Standard Straight Flute Hand Tap, Right Hand Cutting, #0-80 Thread, H2 Thread Limit, Plug Chamfer, 2 Flutes, TiN Coated, HSS

Catalog Number:
Manufacturer: Greenfield
Brand: GREENFIELD
Item ID: GRFL 300047
MPN: 300047
Min Order Qty: 1
Minimum order quantities may apply.

Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP-TN, Measurement System: Imperial, Ground/UNF Thread Standard, #0-80 Thread, Plug Chamfer, 2 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 5/16 in Thread Length, 1-5/8 in Overall Length, 0.141 in Shank Diameter, Cast Iron, Steel and Stainless Steel Material Application, H2 Thread Limit

Sold As: 1/PK

Specifications

Chamfer Type
Plug
Chamfer
Plug
Class of Fit
2B
Coating/Finish
TiN
Cutting Direction
Right Hand
Depth Of Cut
2xD
Diameter (Decimal)
0.06
Diameter (Metric)
1.52
Diameter
0.06 Inch
Finish/Coating
TiN Coated
Flute Type
Straight
Material Application
Cast Iron, Steel and Stainless Steel
Material
HSS
Measurement System
Imperial
Number Of Flutes
2
Operation Type
Blind Hole
Overall Length (Decimal)
1.63
Overall Length (Metric)
41.27
Overall Length
1-5/8 in
Series
HTGP-TN
Shank Diameter
0.141 in
Shank Size (Decimal)
0.14
Shank Size (Metric)
3.58
Shank Square Length (Decimal)
0.19
Shank Square Width (Decimal)
0.11
Shank Type
Straight w/ Square
Tap Blank Construction
USCTI Table 302A
Tap Construction
Standard
Tap Ground Threads
Yes
Thread Length (Decimal)
0.31
Thread Length
5/16 in
Thread Limit
H2
Thread Pitch
80
Thread Size Decimal Equiv
0.06
Thread Size
#0-80
Thread Standard
Ground/UNF
Thread Tolerance
2B
Type
General Purpose Standard
Unit of Measure
Inch

Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, General Purpose Standard, Series: HTGP-TN, Measurement System: Imperial, Ground/UNF Thread Standard, #0-80 Thread, Plug Chamfer, 2 Flutes, HSS, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 5/16 in Thread Length, 1-5/8 in Overall Length, 0.141 in Shank Diameter, Cast Iron, Steel and Stainless Steel Material Application, H2 Thread Limit
