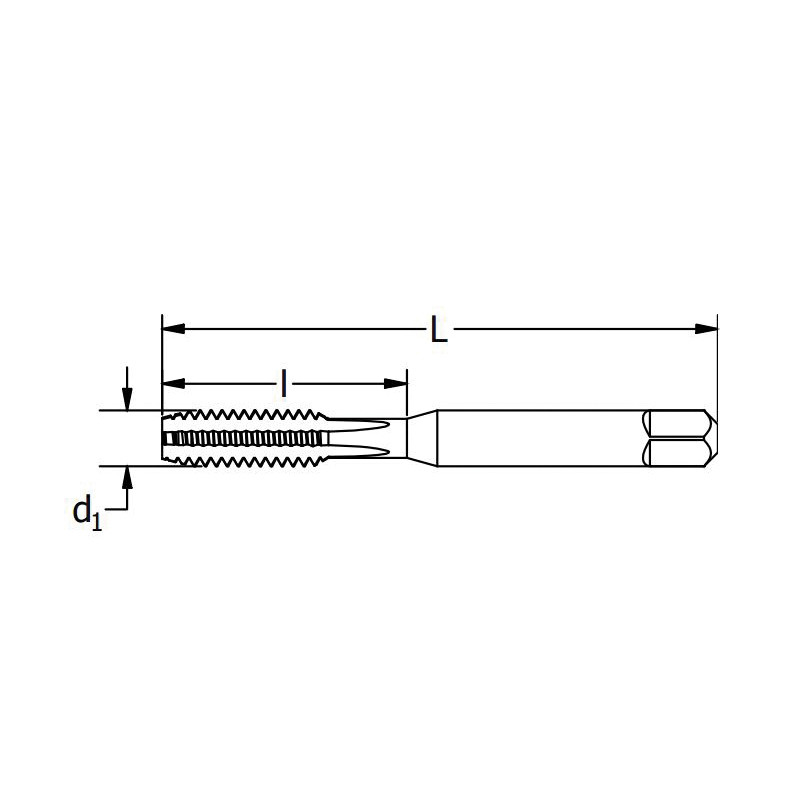

Greenfield Threading Vermont Tap and Die® 300217 HTHM-TC High Performance Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E
Greenfield Threading Vermont Tap and Die® 300217 HTHM-TC High Performance Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E
Greenfield Threading Vermont Tap and Die® 300217 HTHM-TC High Performance Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

Click to enlarge
GREENFIELD
300217

Greenfield Threading Vermont Tap and Die® 300217 HTHM-TC High Performance Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

Greenfield Threading Vermont Tap and Die® 300217 HTHM-TC High Performance Straight Flute Hand Tap, Right Hand Cutting, 5/16-18 Thread, H3 Thread Limit, Semi-Bottoming Chamfer, 4 Flutes, TiCN Coated, HSS-E

Catalog Number:
Manufacturer: Greenfield
Brand: GREENFIELD
Item ID: GRFL 300217
MPN: 300217
Min Order Qty: 1
Minimum order quantities may apply.

Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, High Performance, Series: HTHM-TC, Measurement System: Imperial, Ground/UNC Thread Standard, 5/16-18 Thread, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 11/16 in Thread Length, 2.7188 in Overall Length, 0.318 in Shank Diameter, Cast Iron and Hard Materials Material Application, H3 Thread Limit

Sold As: 1/PK

Specifications

Chamfer Type
Semi-Bottoming
Chamfer
Semi-Bottoming
Class of Fit
2B
Coating/Finish
TiCN
Cutting Direction
Right Hand
Depth Of Cut
2xD
Diameter (Decimal)
0.31
Diameter (Fractional)
5/16
Diameter (Metric)
7.94
Diameter
0.31 Inch
Finish/Coating
TiCN Coated
Flute Type
Straight
Material Application
Cast Iron and Hard Materials
Material
HSS-E
Measurement System
Imperial
Number Of Flutes
4
Operation Type
Blind Hole
Overall Length (Decimal)
2.72
Overall Length (Metric)
69.06
Overall Length
2.7188 in
Series
HTHM-TC
Shank Diameter
0.318 in
Shank Size (Decimal)
0.32
Shank Size (Metric)
8.08
Shank Square Length (Decimal)
0.38
Shank Square Width (Decimal)
0.24
Shank Type
Straight w/ Square
Tap Blank Construction
USCTI Table 302A
Tap Construction
CNC For Cast Iron & Harder Materials
Tap Ground Threads
Yes
Tap Neck Length
1.125
Thread Length (Decimal)
0.69
Thread Length
11/16 in
Thread Limit
H3
Thread Pitch
18
Thread Size Decimal Equiv
0.31
Thread Size
5/16-18
Thread Standard
Ground/UNC
Thread Tolerance
2B
Type
High Performance
Unit of Measure
Inch

Greenfield Threading Vermont Tap and Die® Straight Flute Hand Tap, High Performance, Series: HTHM-TC, Measurement System: Imperial, Ground/UNC Thread Standard, 5/16-18 Thread, Semi-Bottoming Chamfer, 4 Flutes, HSS-E, TiCN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 11/16 in Thread Length, 2.7188 in Overall Length, 0.318 in Shank Diameter, Cast Iron and Hard Materials Material Application, H3 Thread Limit
