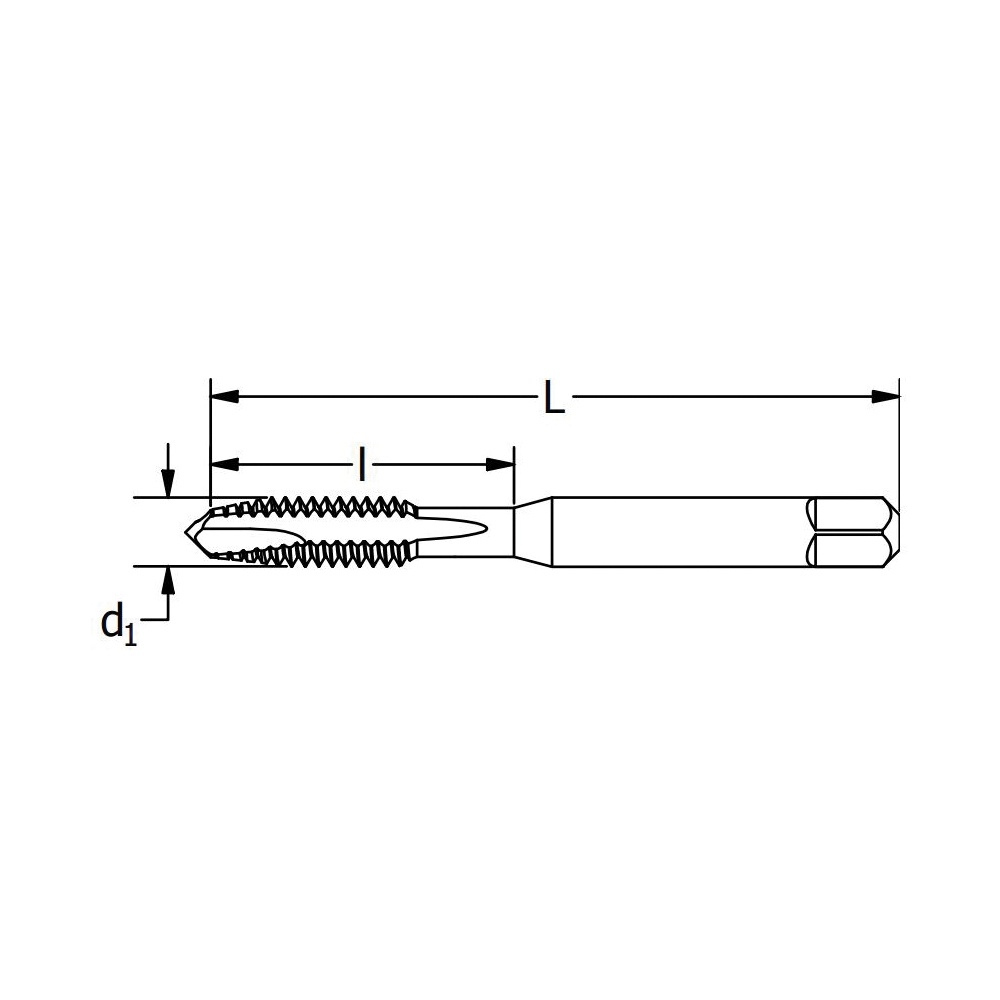

Greenfield Threading Vermont Tap and Die® 330180 SPLS Low Shear Spiral Point Machine Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS
Greenfield Threading Vermont Tap and Die® 330180 SPLS Low Shear Spiral Point Machine Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS
Greenfield Threading Vermont Tap and Die® 330180 SPLS Low Shear Spiral Point Machine Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS

Click to enlarge
GREENFIELD
330180

Greenfield Threading Vermont Tap and Die® 330180 SPLS Low Shear Spiral Point Machine Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS

Greenfield Threading Vermont Tap and Die® 330180 SPLS Low Shear Spiral Point Machine Tap, Right Hand Cutting, #10-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS

Catalog Number:
Manufacturer: Greenfield
Brand: GREENFIELD
Item ID: GRFL 330180
MPN: 330180
Min Order Qty: 1

Greenfield Threading Vermont Tap and Die® Spiral Point Machine Tap, Low Shear, Series: SPLS, Ground/UNC Thread Standard, #10-32 Thread, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting Direction, 1/2 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Diameter, 1/4 in Shank Length, Cast Iron, Steel and Hard Materials Material Application, H3 Thread Limit

Sold As: 1/PK
Springfield

Specifications

Chamfer Type
Plug
Chamfer
Plug
Class of Fit
2B
Coating/Finish
Bright
Cutting Direction
Right Hand
Depth Of Cut
2xD
Diameter (Decimal)
0.19
Diameter (Metric)
4.83
Diameter
0.19 Inch
Finish/Coating
Bright
Flute Type
Straight
Material Application
Cast Iron, Steel and Hard Materials
Material
HSS
Number Of Flutes
2
Operation Type
Thru Hole
Overall Length (Decimal)
2.38
Overall Length (Metric)
60.45
Overall Length
2.38 in
Series
SPLS
Shank Diameter
0.194 in
Shank Length
1/4 in
Shank Size (Decimal)
0.19
Shank Size (Metric)
4.93
Shank Square Length (Decimal)
0.25
Shank Square Width (Decimal)
0.15
Shank Type
Straight w/ Square
Tap Blank Construction
USCTI Table 302A
Tap Construction
Low Shear
Tap Ground Threads
Yes
Tap Neck Length
0.39
Tap Spiral Point
Yes
Thread Length (Decimal)
0.5
Thread Length
1/2 in
Thread Limit
H3
Thread Pitch
32
Thread Size Decimal Equiv
0.19
Thread Size
#10-32
Thread Standard
Ground/UNC
Thread Tolerance
2B
Type
Low Shear
Unit of Measure
Inch

Greenfield Threading Vermont Tap and Die® Spiral Point Machine Tap, Low Shear, Series: SPLS, Ground/UNC Thread Standard, #10-32 Thread, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B, Right Hand Cutting Direction, 1/2 in Thread Length, 2.38 in Overall Length, 0.194 in Shank Diameter, 1/4 in Shank Length, Cast Iron, Steel and Hard Materials Material Application, H3 Thread Limit
