KNIPEX TOOLS
12 11 180

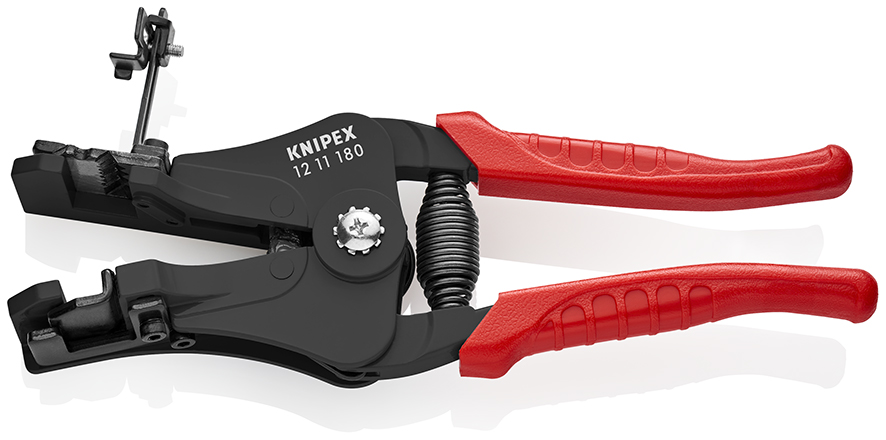

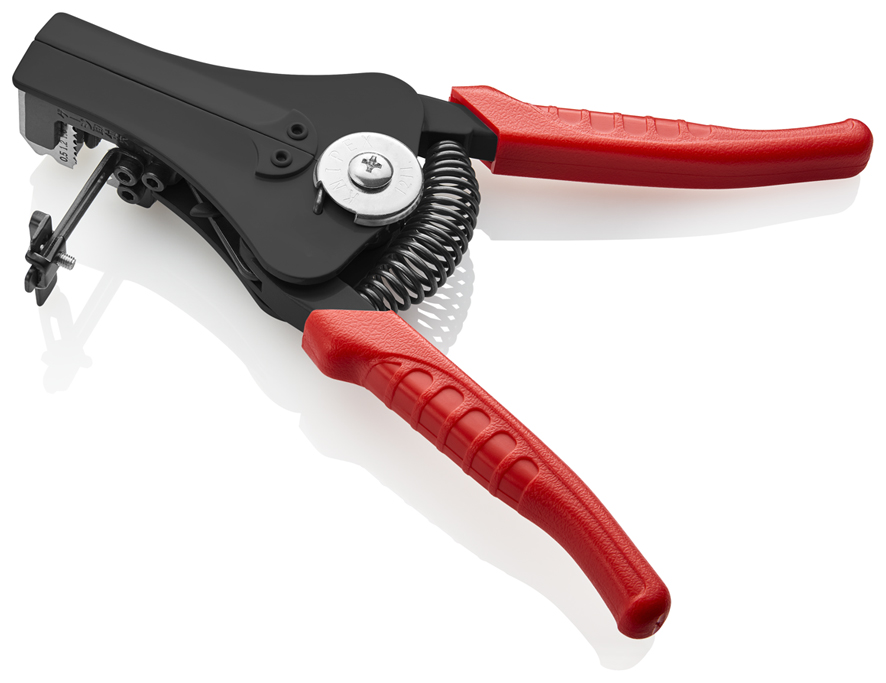

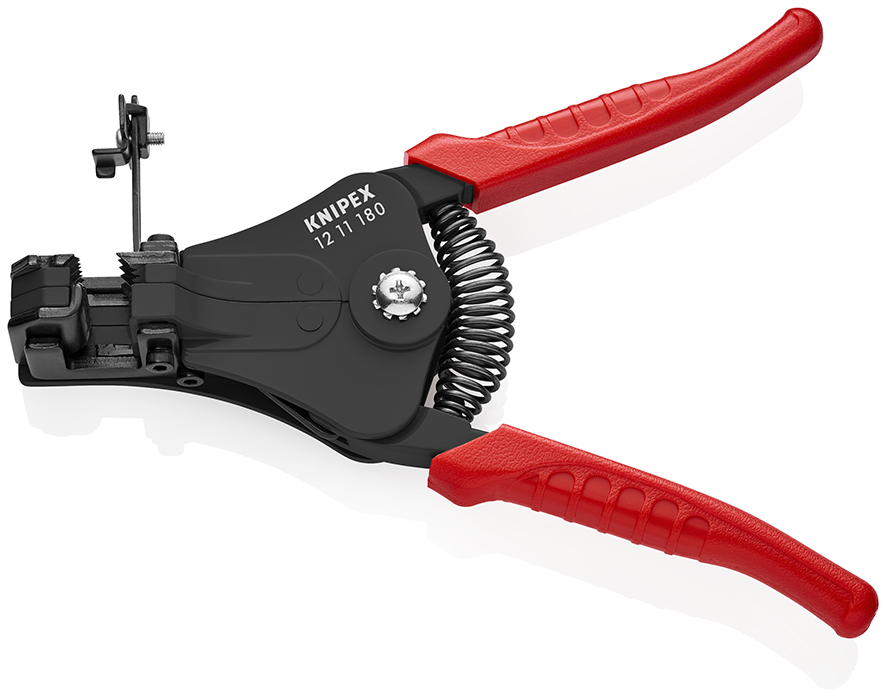

7 1/4" Automatic Wire Stripper

7 1/4" Automatic Wire Stripper

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: ANGA 1211180
MPN: 12 11 180
UPC: 843221003913
Min Order Qty: 1

Features

  • Leaves wires undamaged due to precision-ground blade shapes, even multi-stranded conductors are stripped gently
  • During stripping, the wire is held firmly by clamping jaws
  • Built-in adjustable length stop for consistent stripping length during repetitive work
  • A spring leads the stripper back to the starting position
  • Replacement blade part number 12 19 180
  • Pliers body is made of aluminum
  • Blade is made of special tool steel, oil-hardened

    • Specifications

    Color
    Red
    Handle Length
    4"
    Handle Type
    Plastic
    Joint Type
    Bolted
    Material Type
    Blades: Special Tool Steel, Oil-hardened, Aluminum Body
    Nominal Length
    7 1/4"
    Other Surface Finish
    Black Lacquered
    Spare Part
    12 19 180 17|12 19 180 22|12 19 180
    Stripping Capacity
    0.5/1.2/1.6/2.0 mm
    Tool Height-Decimal
    1.35"
    Tool Height
    1 3/8"
    Tool Nominal Length-Decimal
    7.25"
    Tool Weight
    0.8
    Tool Width-Decimal
    2.3"
    Tool Width
    2 1/4"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_12_Insulation+Stripper.pdf
