KNIPEX TOOLS
13 01 160

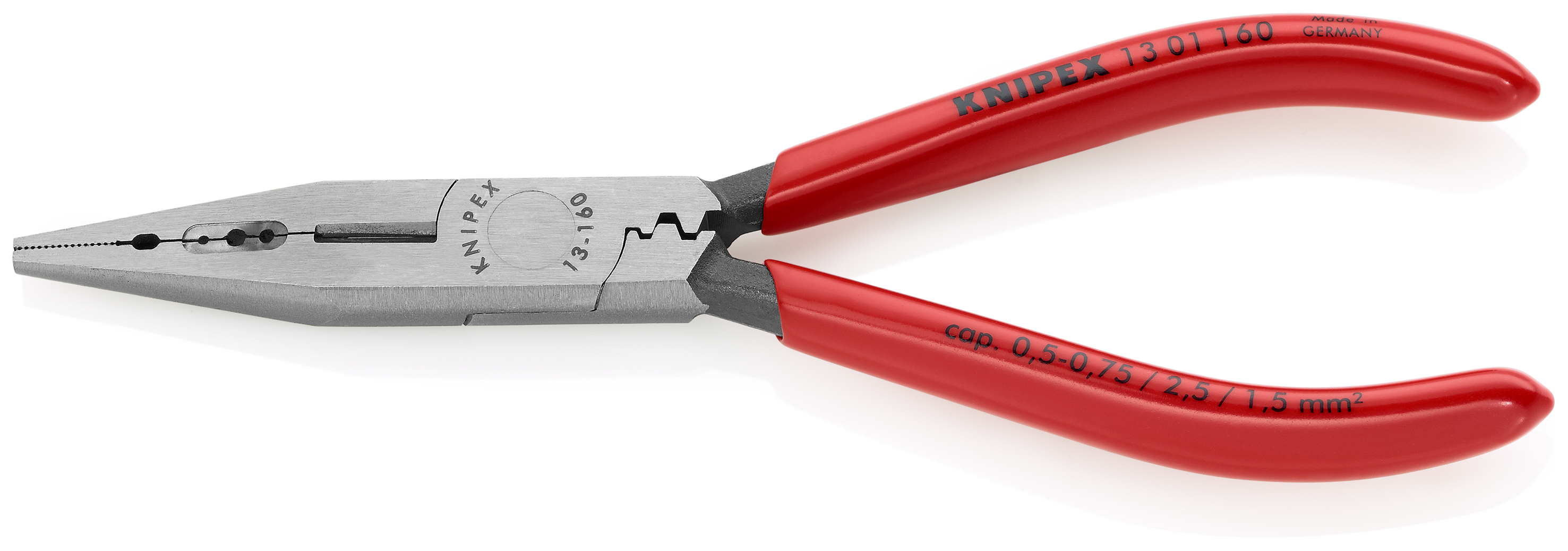

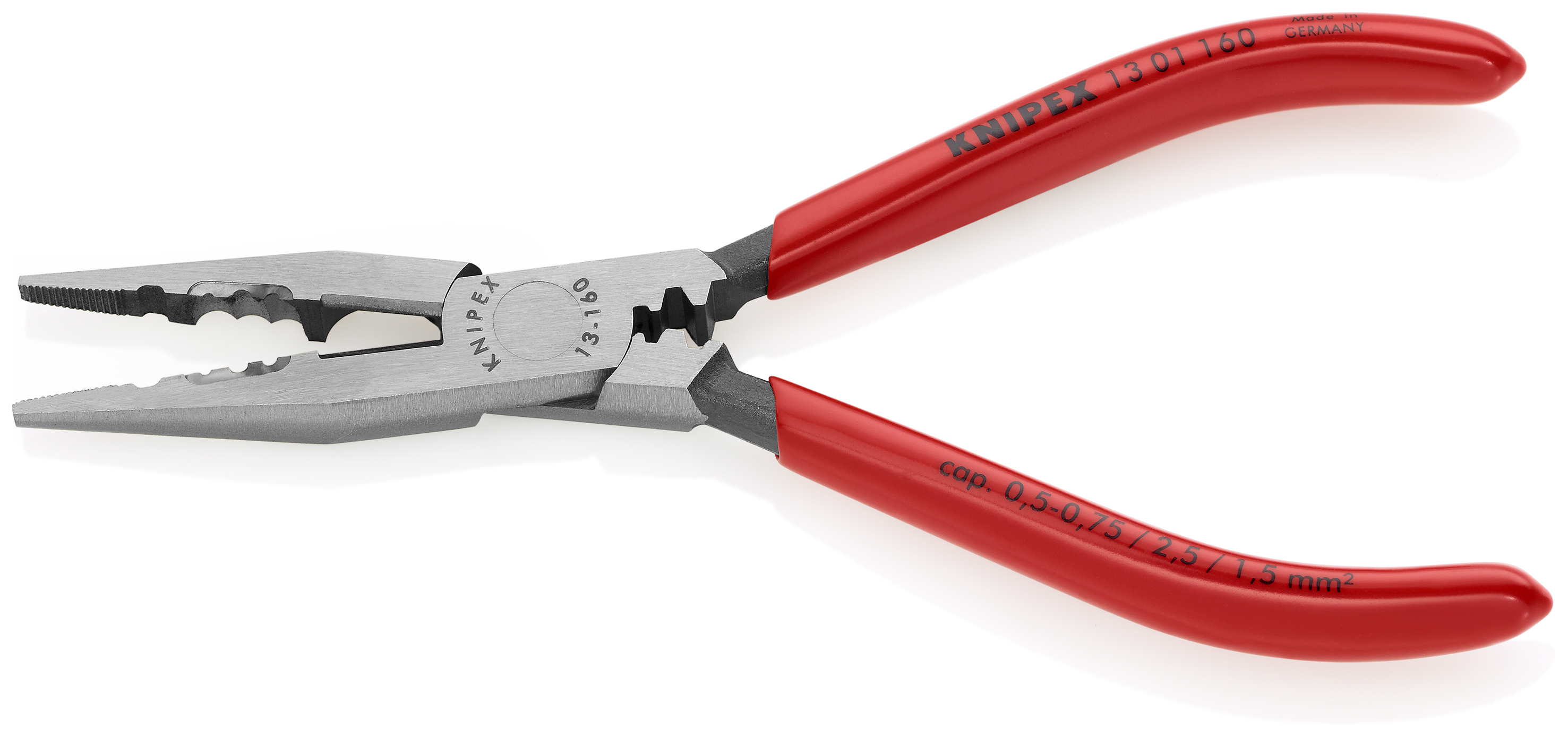

6 1/4" 4-in-1 Electricians' Pliers-Metric Wire

6 1/4" 4-in-1 Electricians' Pliers-Metric Wire

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: ANGA KN1301160
MPN: 13 01 160
UPC: 843221002497
Min Order Qty: 1

Features

  • 4 functions in one pliers - grips, cuts, strips and crimps
  • Ideal for cable and wire work
  • For cutting soft, medium and hard wire
  • Precision cutting edges induction hardened, cutting edge hardness (approx. 60 HRC)
  • Suitable for metric wire 0.5 to 0.74 and 1.5 to 2.5 mm2
  • Precision stripping holes and crimping die for ferrules (end sleeves)
  • Cutting capacity - up to 3/32" for medium hard wire and up to 1/16" for hard wire
  • Vanadium steel; forged, multi-stage oil-hardened

    • Specifications

    Color
    Red
    Crimping Capacity - mm2
    0.5 to 0.75, 1.5 and 2.5
    Crimping Positions
    3
    Cutting Capacity - Hard Wire (Steel Wire)
    1/16"
    Cutting Capacity - Medium Hard Wire (Nail)
    3/32"
    Cutting Edge HRC
    Approx. 60 HRC
    Cutting Edge Shape
    Bevel
    Gripping Surface
    Serrated
    Handle Type
    Non-slip Plastic
    Jaw Type
    Flat
    Joint Type
    Rivet
    Material Type
    Vanadium Electric Steel, Forged, Multi Stage Oil-hardened
    Nominal Length
    6 1/4"
    Other Surface Finish
    Black Atramentized
    Stripping Capacity - mm2
    0.5 to 0.75/1.5/2.5
    Surface Finish
    Polished
    Terminal Type
    End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
    Tool Height-Decimal
    0.6"
    Tool Height
    5/8"
    Tool Nominal Length-Decimal
    6.25"
    Tool Weight
    0.24
    Tool Width-Decimal
    2"
    Tool Width
    2"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_13_Electricians+Pliers.pdf
