KNIPEX TOOLS
13 72 8

8" Forged Wire Stripper 20-10 AWG

8" Forged Wire Stripper 20-10 AWG

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: KNPX 13 72 8
MPN: 13 72 8
UPC: 843221023911
Min Order Qty: 1

Features

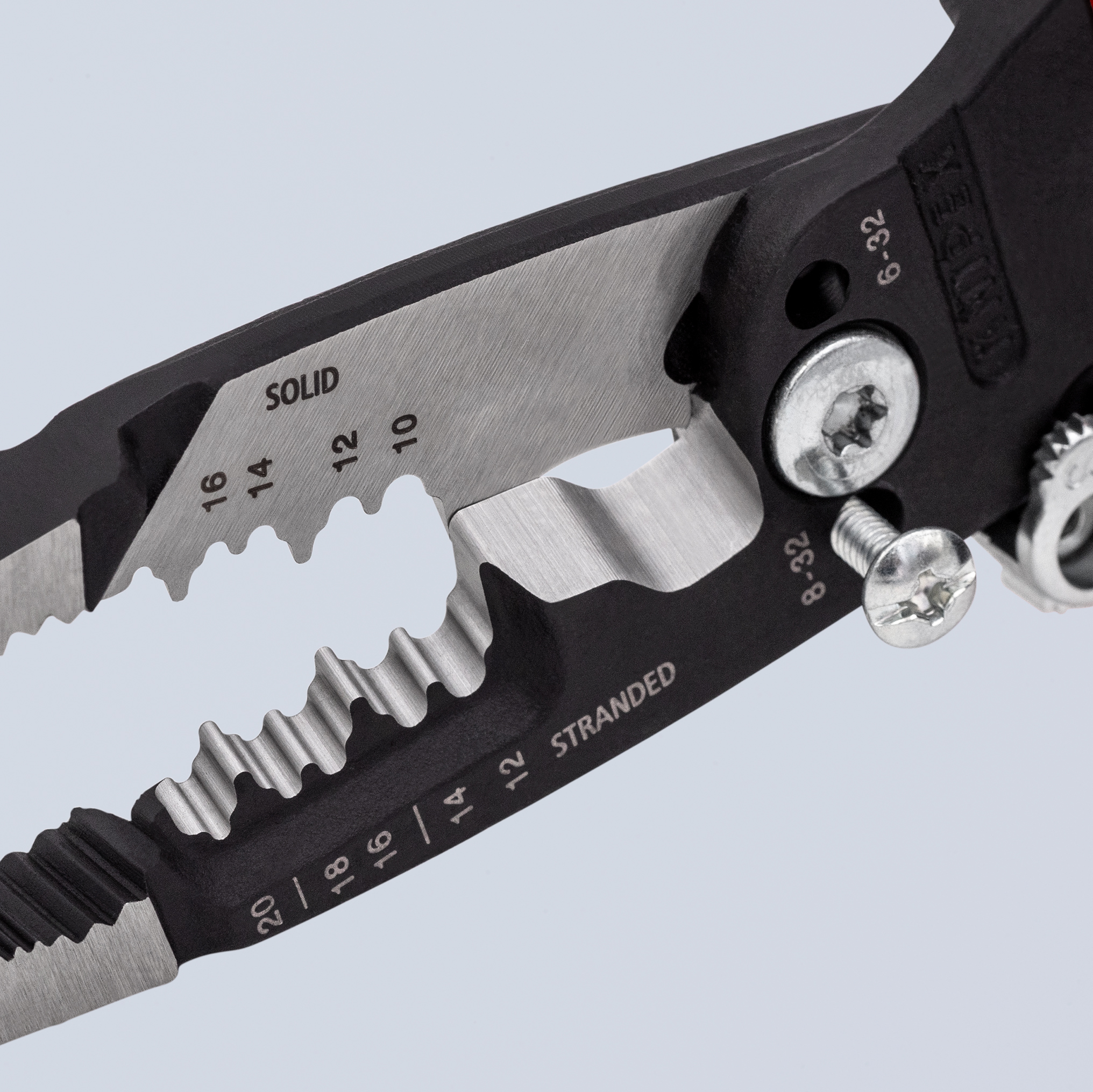

  • Cuts 6-32 and 8-32 screws without threading
  • Locating ridges - easy to locate stripping holes by using one of the locating ridges

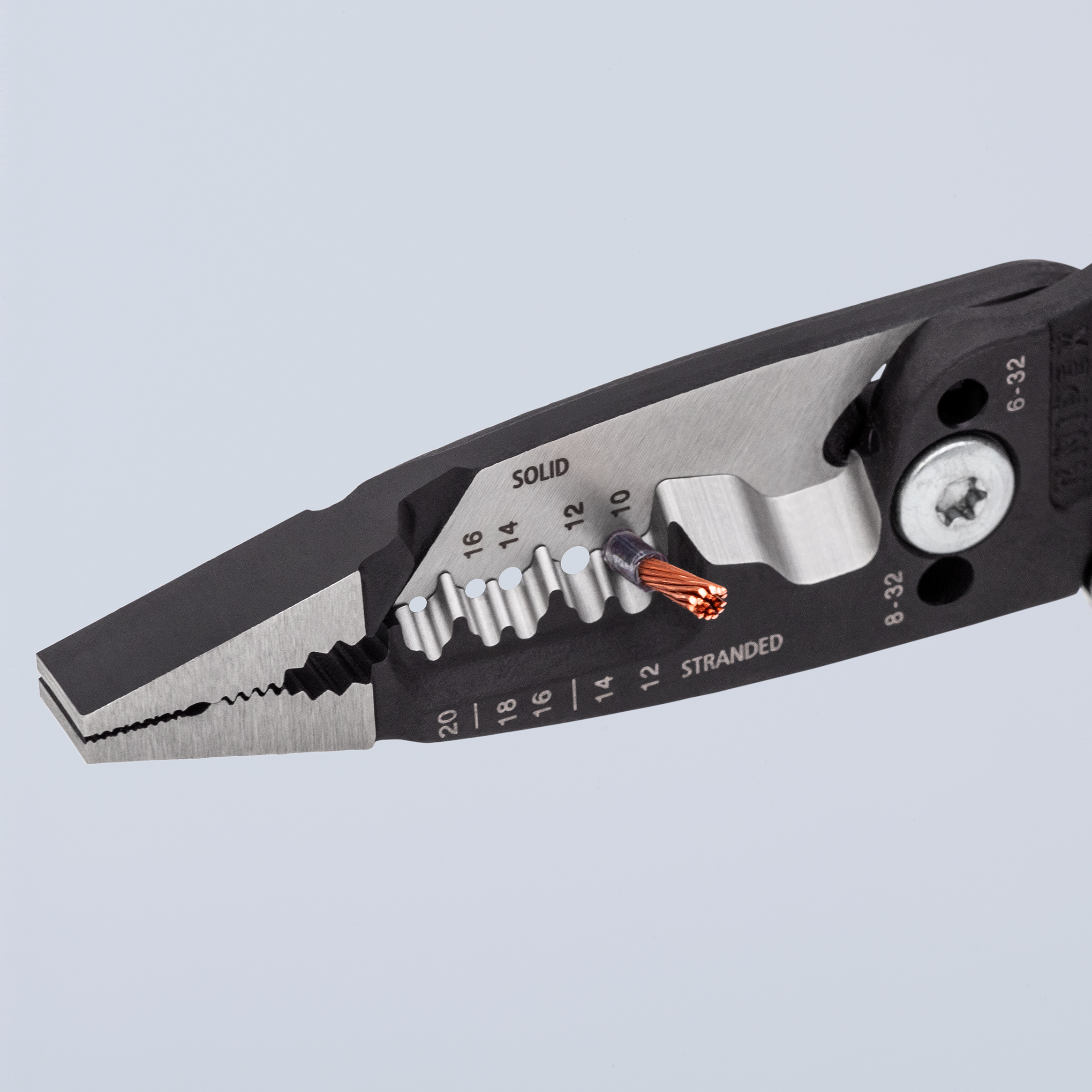

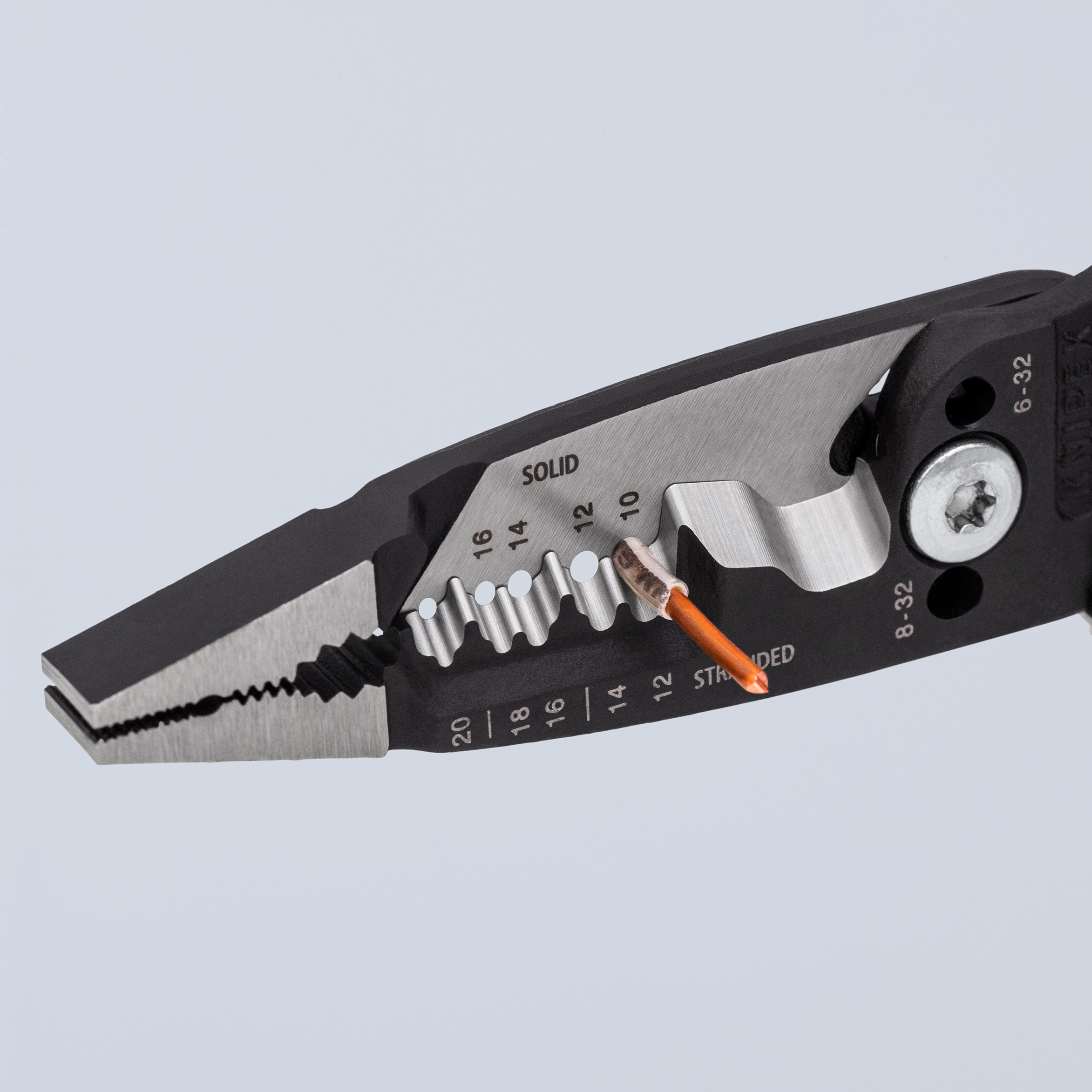

  • Strips 10 to 20 AWG - both solid and stranded wire
  • Integrated opening spring makes frequent cutting easier
  • Shear cutting blades offer 50% higher cutting capacity than competition and 25% cutting power reduction

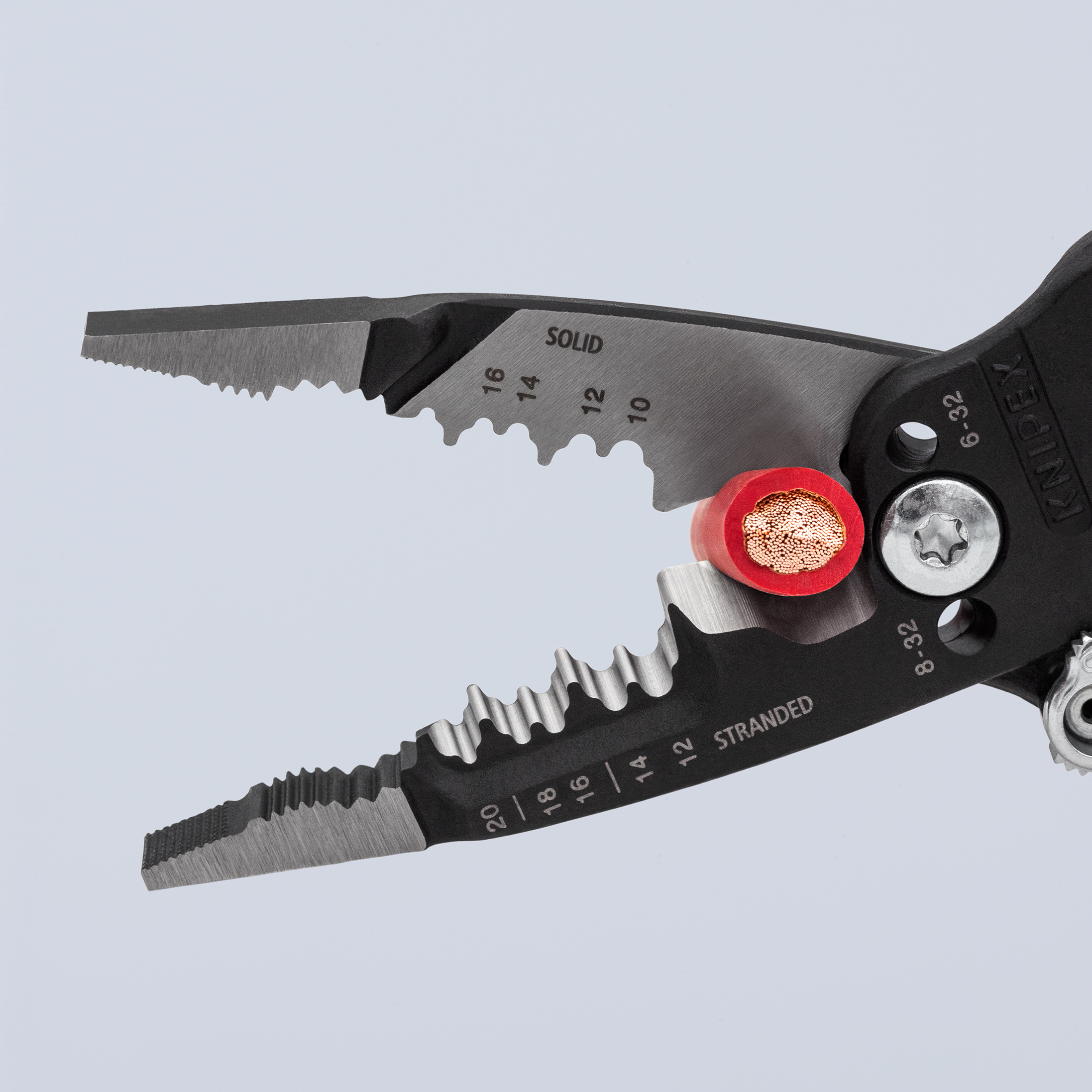

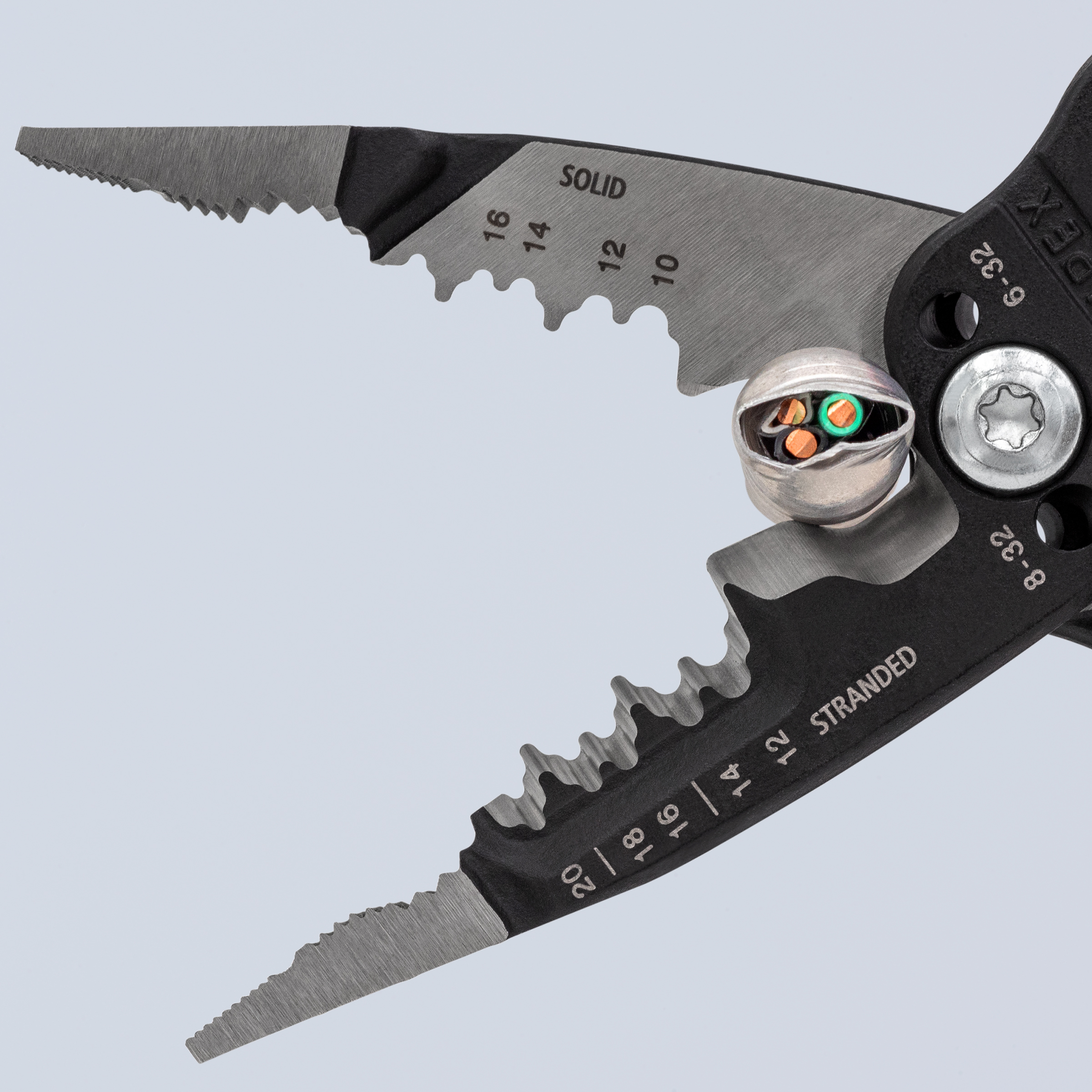

  • Cuts cable, wires, NM-B, BX and MC
  • Wide gripping jaws for twisting wires
  • Lock can either be used left or right handed
  • Wire looping groove to loop wire for attaching to screws
  • Induction hardened blades and screw shear

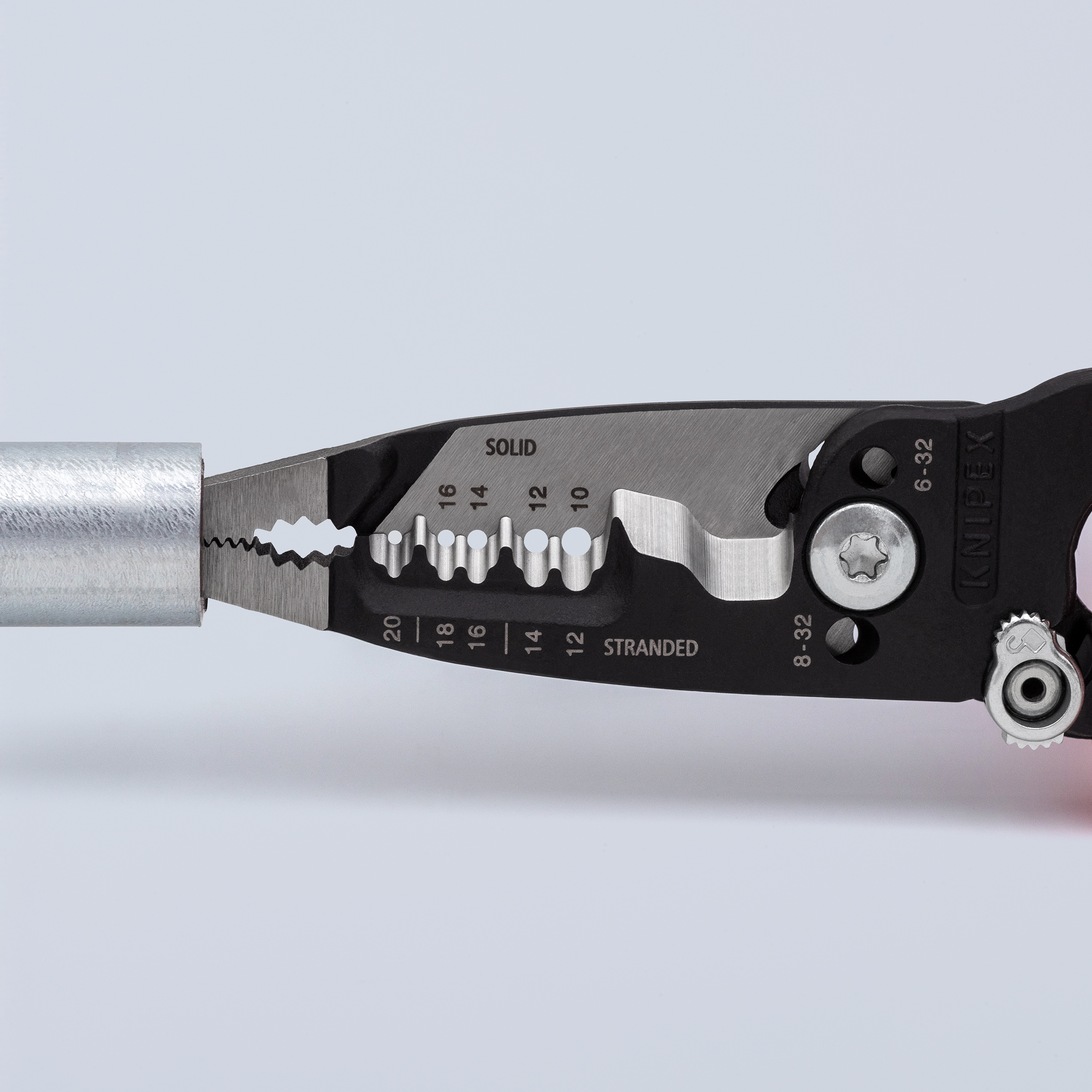

  • Conduit reaming for removing burrs
  • High-grade special tool steel; forged, multi stage oil-hardened

    • Specifications

    Cable Cutting Capacity
    1/2"
    Color
    Red/Blue
    Cutting Edge HRC
    Approx. 57 HRC
    Cutting Edge Shape
    Shear
    Gripping Surface
    Serrated
    Handle Type
    Multi-component
    Jaw Type
    Flat
    Joint Type
    Bolted
    Material Type
    High-grade Special Tool Steel, Forged, Multi Stage Oil-hardened
    Nominal Length
    8"
    Other Surface Finish
    Black Atramentized
    Stripping Capacity - AWG
    20 to 10
    Surface Finish
    Polished
    Tool Height-Decimal
    0.75"
    Tool Height
    3/4"
    Tool Nominal Length-Decimal
    8"
    Tool Weight
    0.61
    Tool Width-Decimal
    2.125"
    Tool Width
    2 1/8"

    Resources

    • Data Sheet https://s3-us-west-2.amazonaws.com/catsy.534/13+7X+8+Forged+Wire+Stripper+Data+Sheet.pdf
    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/Forged+Wire+Stripper+Brochure.pdf
