KNIPEX TOOLS
48 21 J21

6 1/2" Internal 90° Angled Precision Snap Ring Pliers

6 1/2" Internal 90° Angled Precision Snap Ring Pliers

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: KNPX 48 21 J21
MPN: 48 21 J21
UPC: 843221002879
Min Order Qty: 1

Features

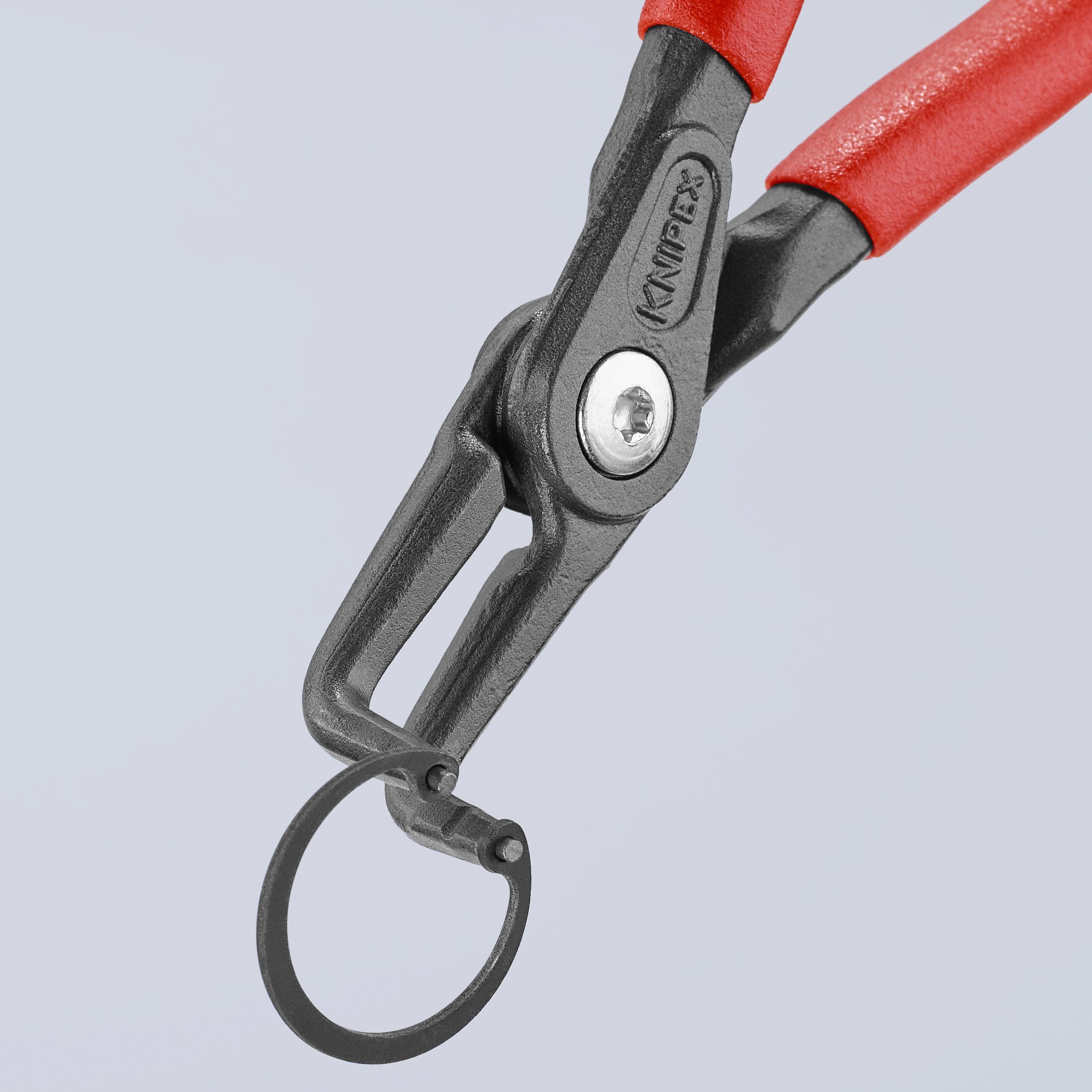

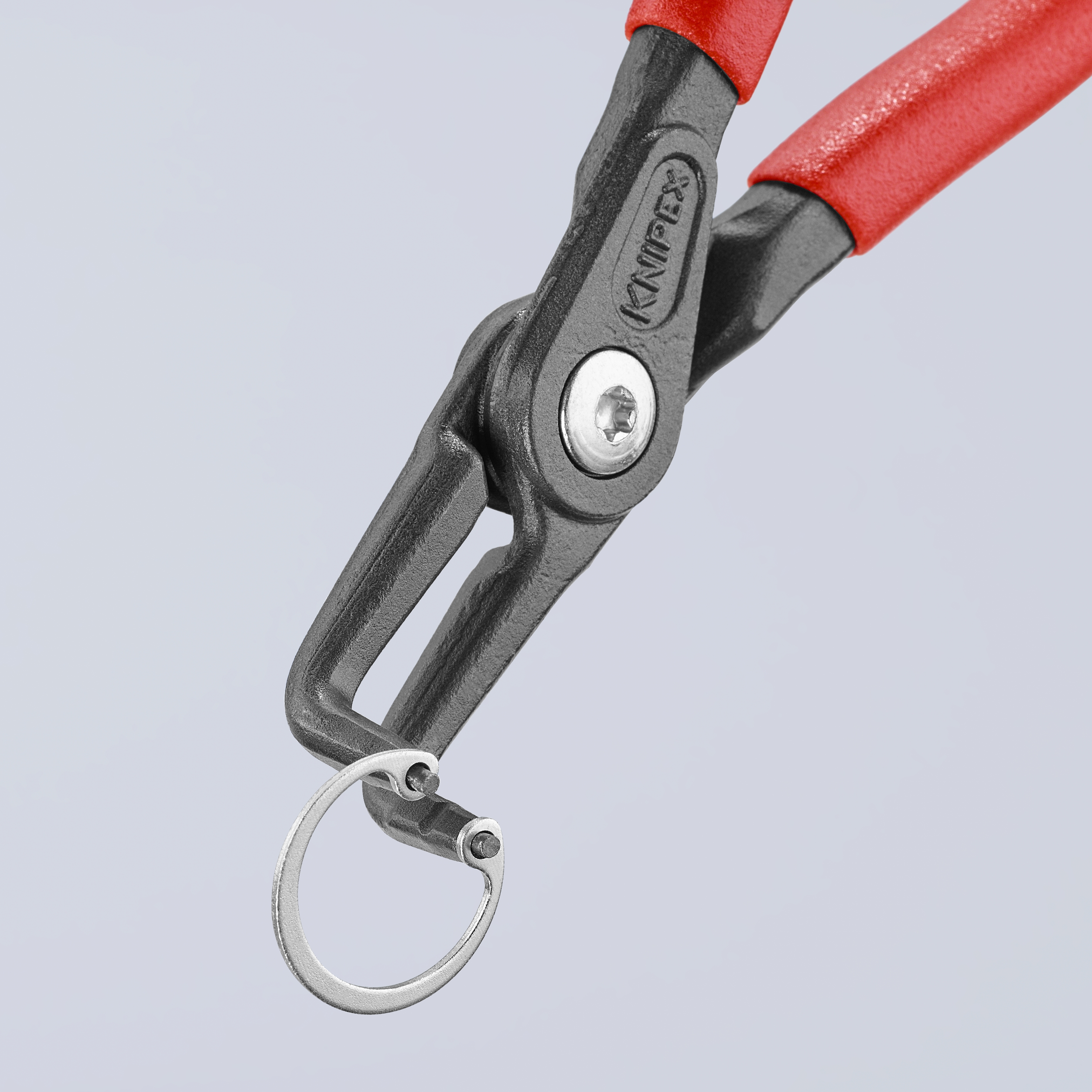

  • Precision internal circlip pliers for installing or removing circlips in bore holes
  • For fitting snap rings into bores, ranging from 3/4" - 2 23/64"
  • Inserted 90˚ angled tips for reliable work
  • Circlips are held securely, large contact faces and the position of the tips make it difficult for the circlip to fly off
  • Bolted joint: precise, zero-backlash operation of pliers
  • Heavy-duty continuous operation: up to 10 times longer service life than turned tips

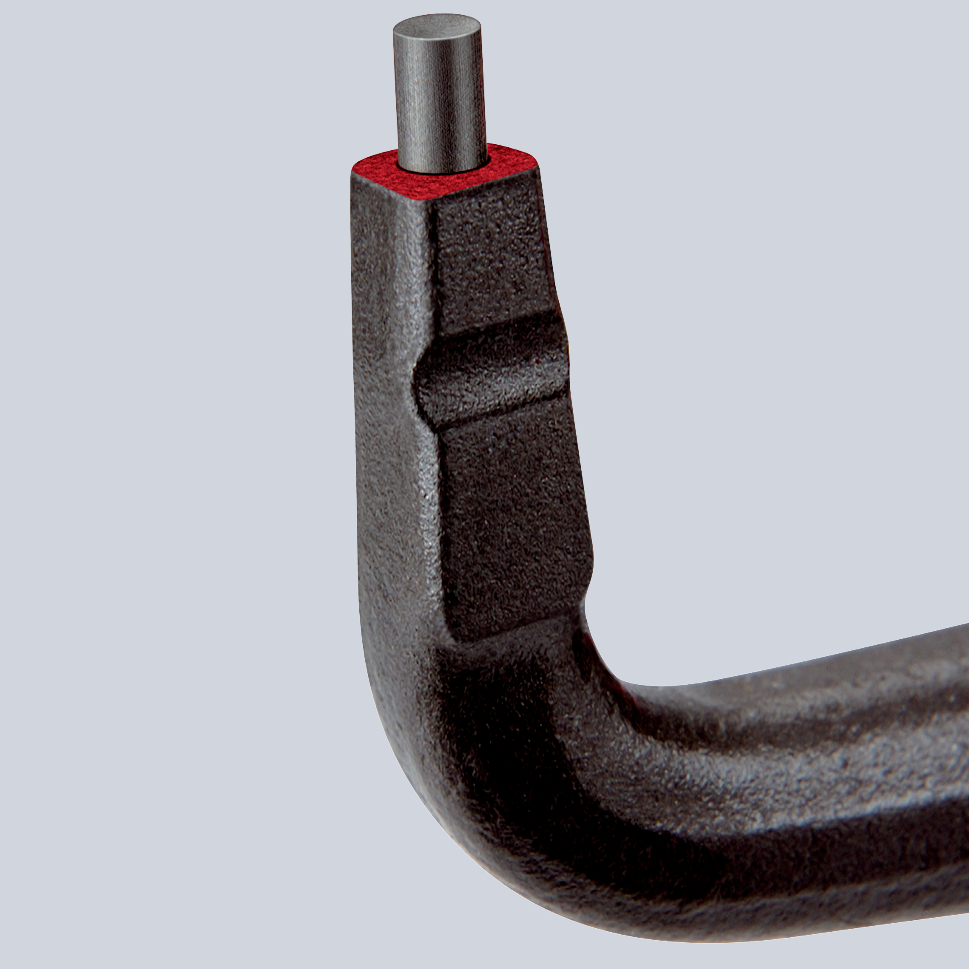

  • Inserted tips: spring steel wire, drawn
  • Pliers body: chrome vanadium electric steel; forged, oil-hardened

    • Specifications

    Angled Head
    90 degree
    Circlip - Internal Bore Size
    3/4" to 2 23/64"
    Color
    Red
    Handle Length
    4 1/2"
    Handle Type
    Non-slip Plastic
    Joint Type
    Bolted
    Material Type
    Chrome Vanadium Electric Steel, Forged, Oil-hardened
    Nominal Length
    6 1/2"
    Surface Finish
    Grey atramentized
    Tip Width
    5/64"
    Tool Height-Decimal
    0.9"
    Tool Height
    7/8"
    Tool Nominal Length-Decimal
    6.5"
    Tool Weight
    0.385
    Tool Width-Decimal
    1.95"
    Tool Width
    2"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_48_Precision+Circlip+Pliers.pdf
