KNIPEX TOOLS
78 03 125

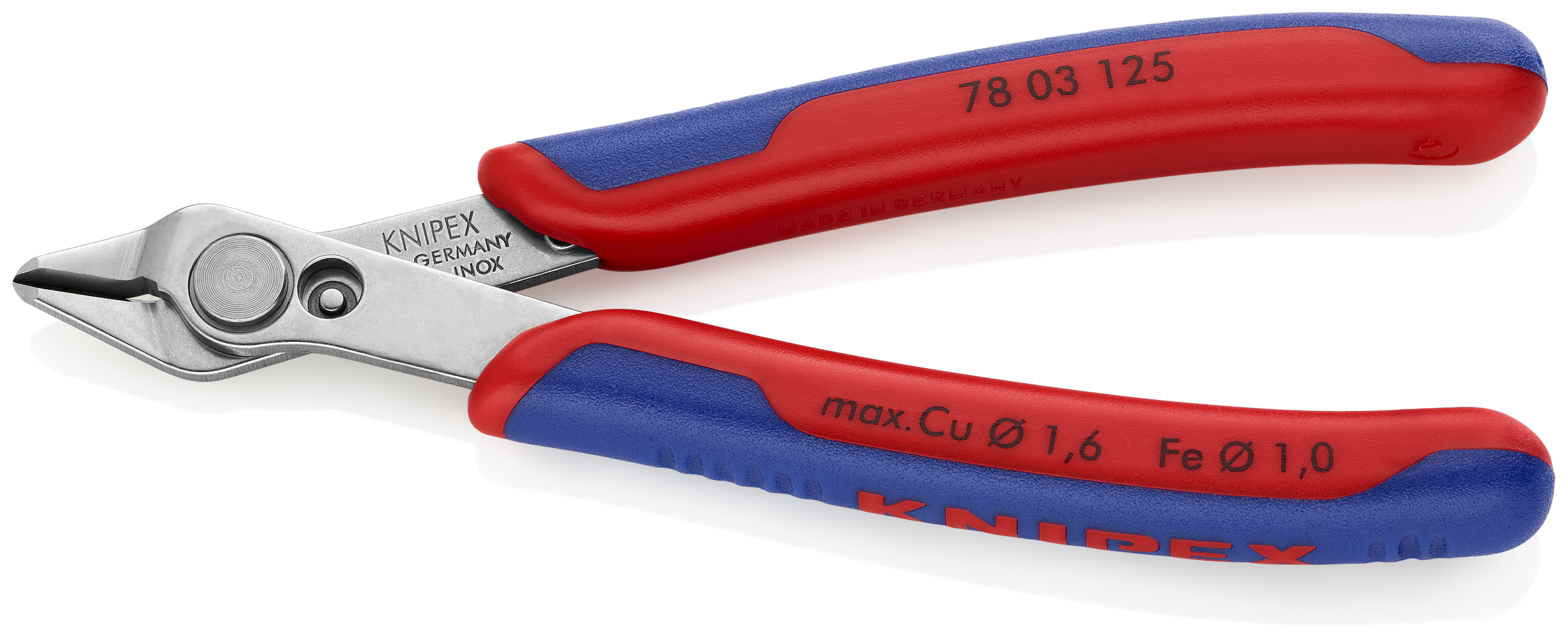

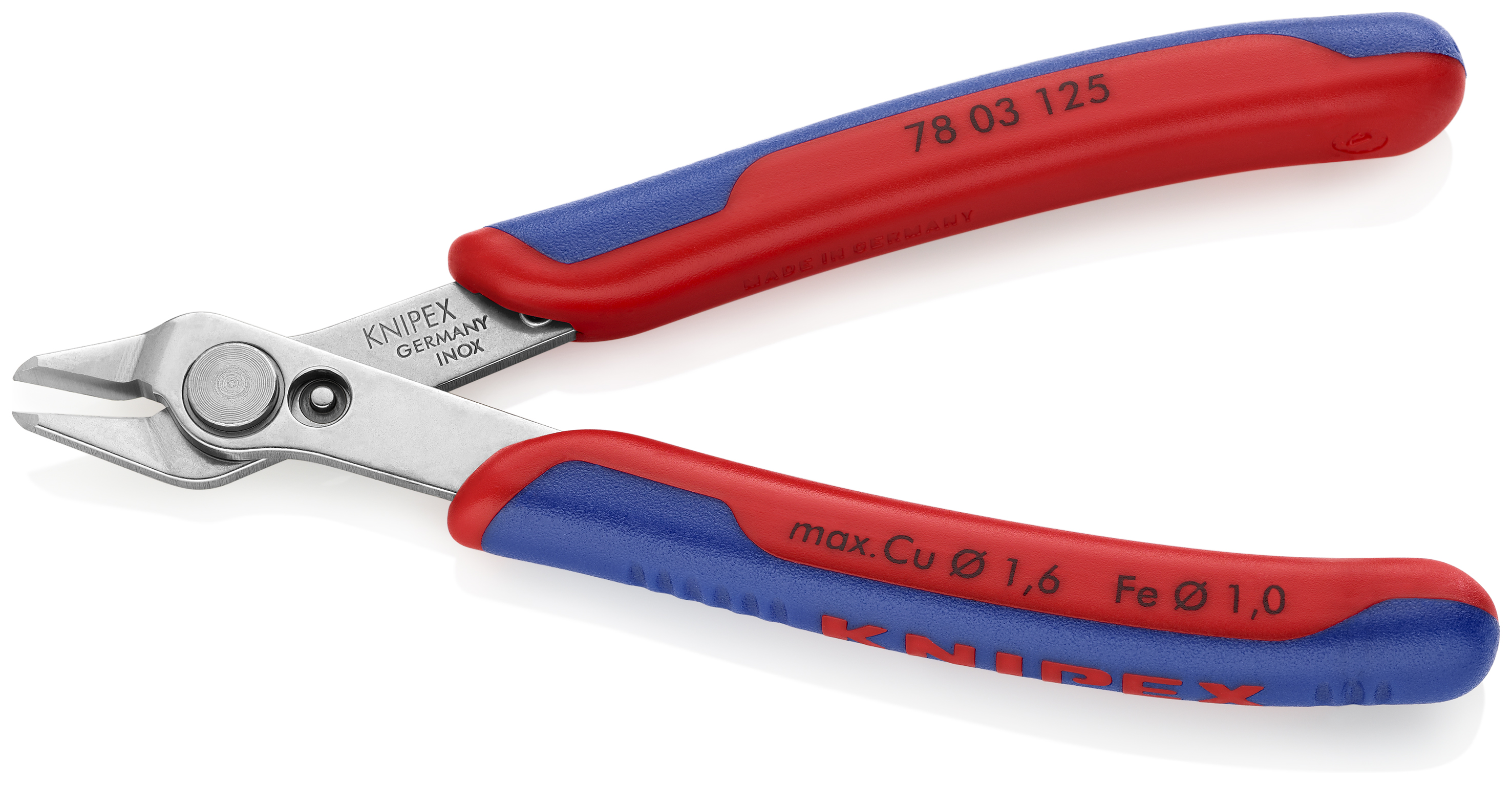

5" Electronics Super Knips®

5" Electronics Super Knips®

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: KNPX 78 03 125
MPN: 78 03 125
UPC: 843221002008
Min Order Qty: 1

Features

  • Precision pliers for ultra fine cutting work in electronics and fine mechanics
  • Ground, very sharp cutting edges without bevel for flush cutting perfect for cable ties
  • Precision shaped tips cut wires resting on a board from 1/64" (0.2 mm) diameter
  • Joint with stainless steel rivet
  • Extremely smooth movement for minimum operator fatigue
  • Includes opening spring for easy repetitive work
  • Approximately 20% lighter than conventional electronics pliers
  • Grooves in handle provide a steady grip when applying slight pressure
  • Cutting edge hardness (approx. 54 HRC)
  • INOX stainless steel

    • Specifications

    Blade Length
    23/64"
    Color
    Red/Blue
    Cutting Capacity - Medium Hard Wire (Nail)
    3/64"
    Cutting Capacity - Soft Wire
    1/64" to 1/16"
    Cutting Edge HRC
    Approx. 54 HRC
    Cutting Edge Shape
    Without Bevel
    Cutting Result
    Flush
    Handle Length
    4"
    Handle Type
    Multi-component
    Jaw Length
    23/64"
    Jaw Thickness
    19/64"
    Jaw Width
    17/32"
    Material Type
    Inox Stainless Steel
    Nominal Length
    5"
    Sub Brand Name
    Super Knips®
    Surface Finish
    Polished
    Tip Thickness
    19/64"
    Tool Height-Decimal
    0.6"
    Tool Height
    5/8"
    Tool Nominal Length-Decimal
    5"
    Tool Weight
    0.13
    Tool Width-Decimal
    2"
    Tool Width
    2"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_78_Electronic+Super+Knips.pdf
