KNIPEX TOOLS
86 03 250

10" Pliers Wrench

10" Pliers Wrench

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: KNPX 86 03 250
MPN: 86 03 250
UPC: 843221003036
Min Order Qty: 1

Features

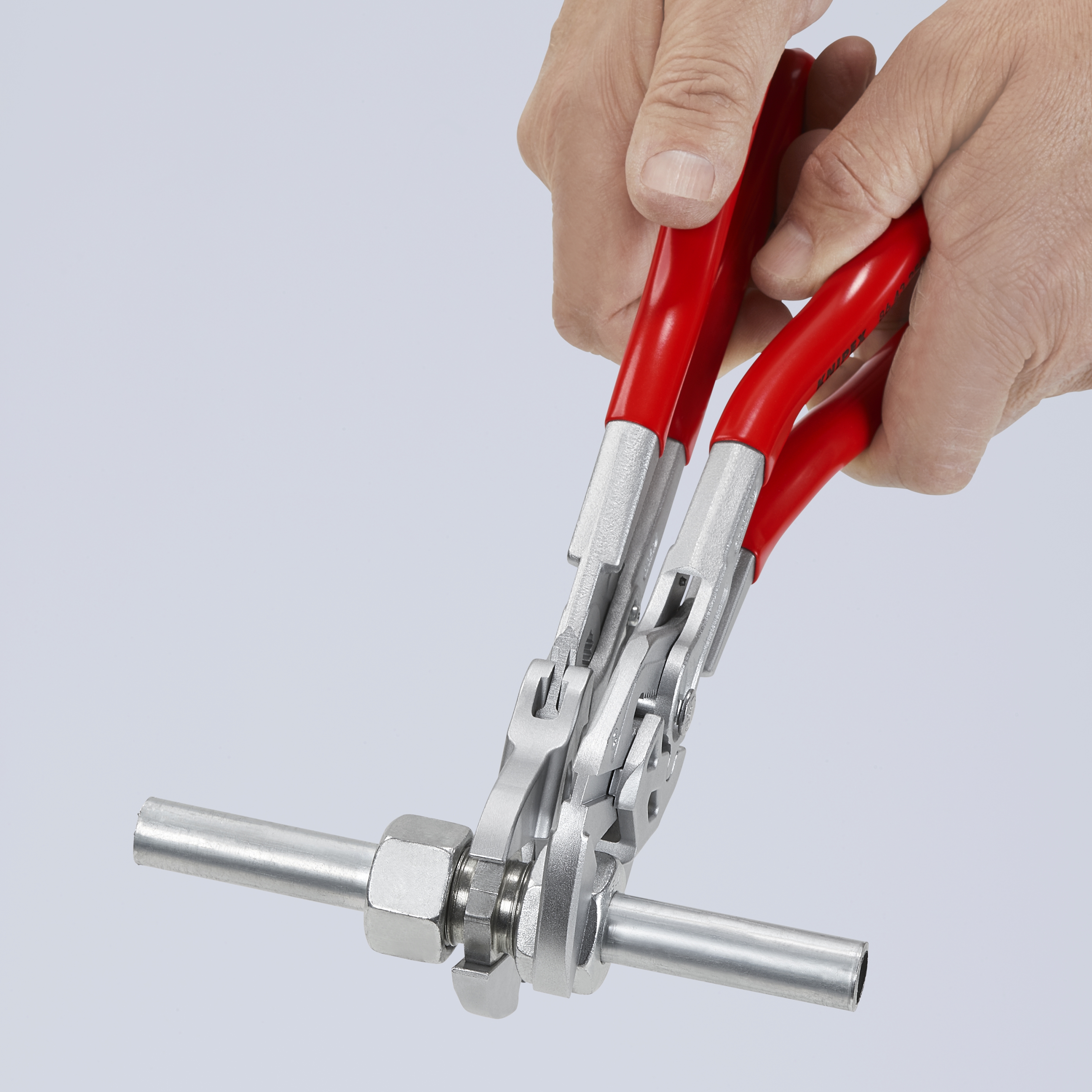

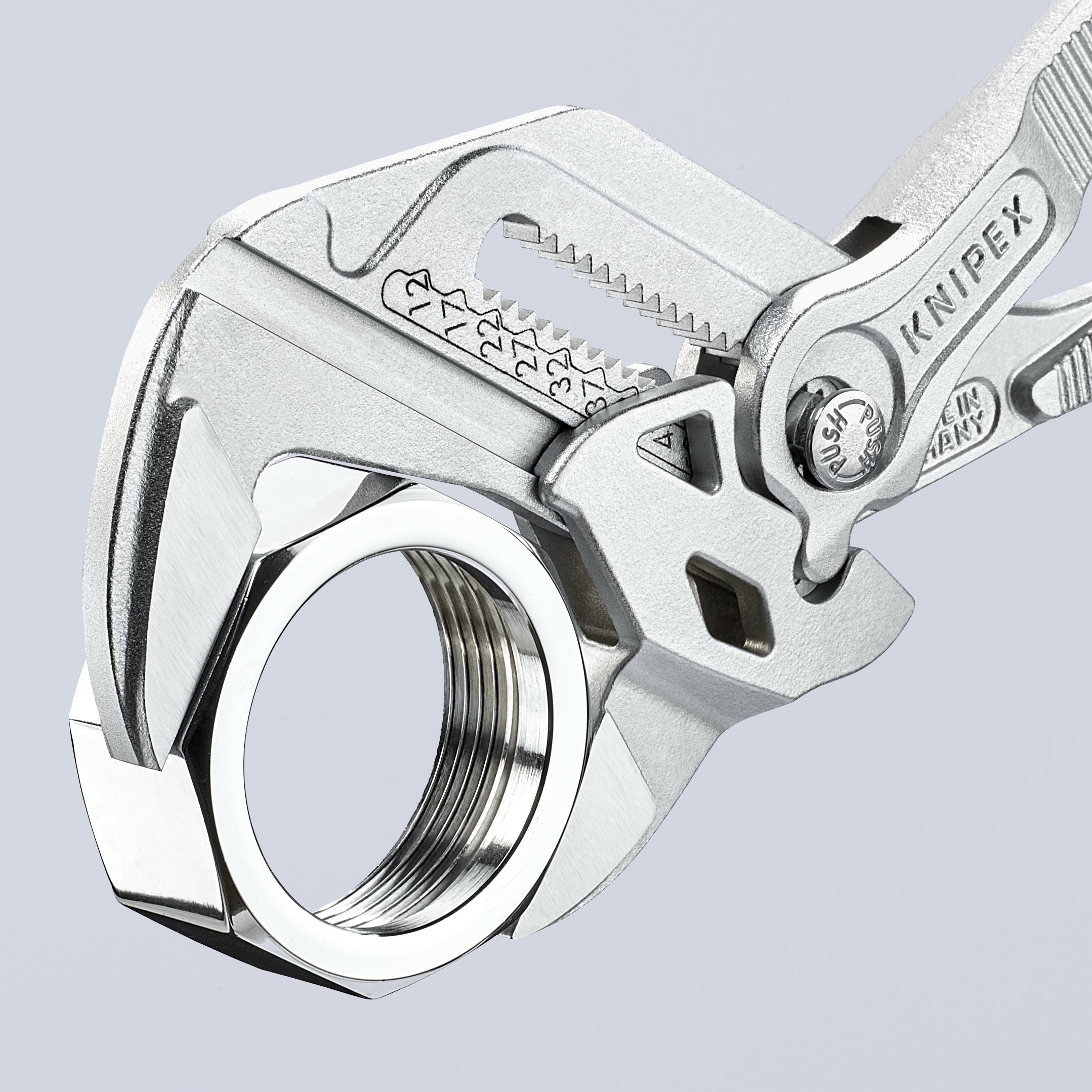

  • Replaces a full set of inch and metric open end wrenches up to 2" (52 mm)

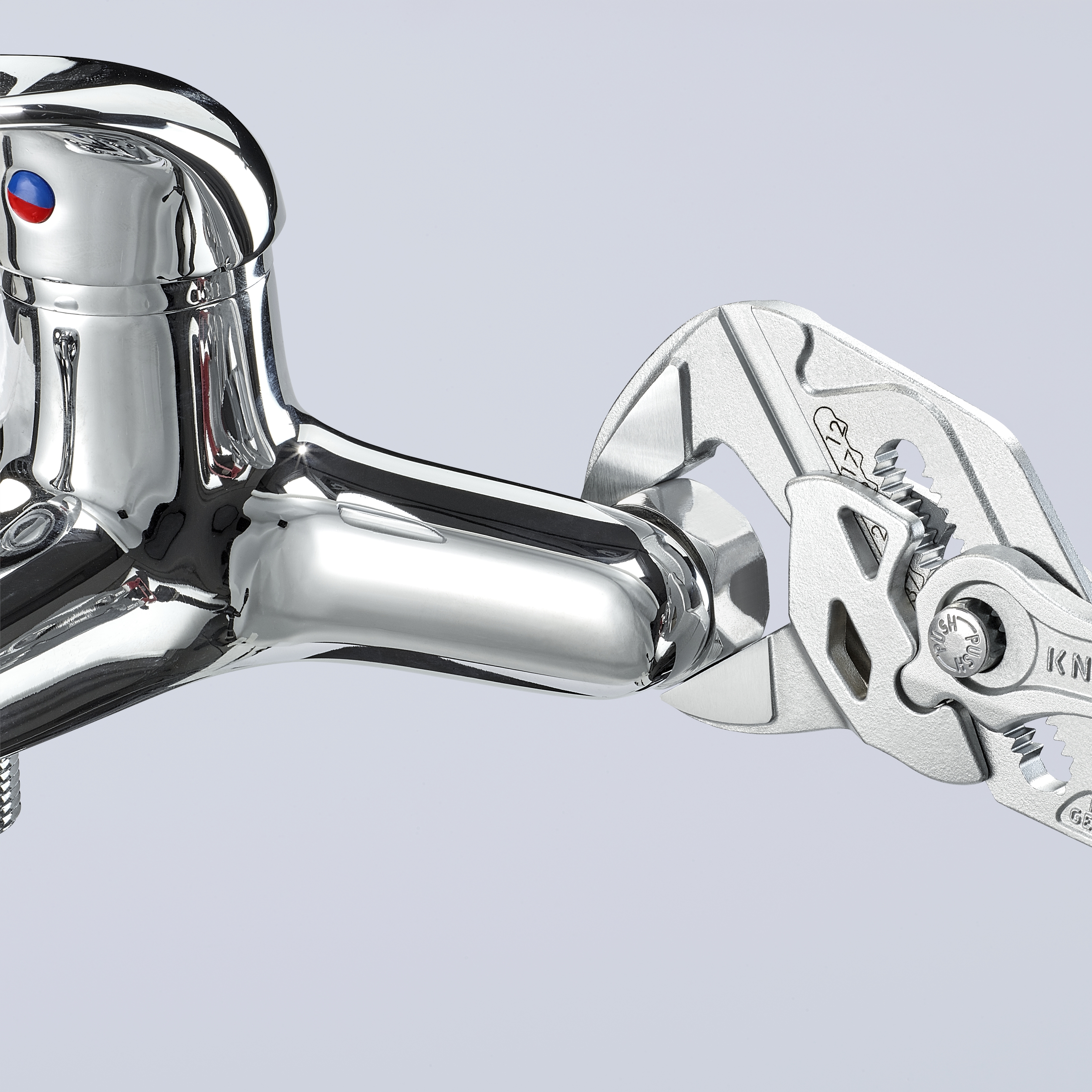

  • Smooth jaws for damage free installation of plated fittings - working directly on chrome
  • Adjustable tightening tool
  • Excellent for gripping, holding, pressing and bending applications
  • Zero backlash jaw surface pressure prevents damage to edges of sensitive components
  • 19 adjustment positions at the touch of a button directly on the workpiece

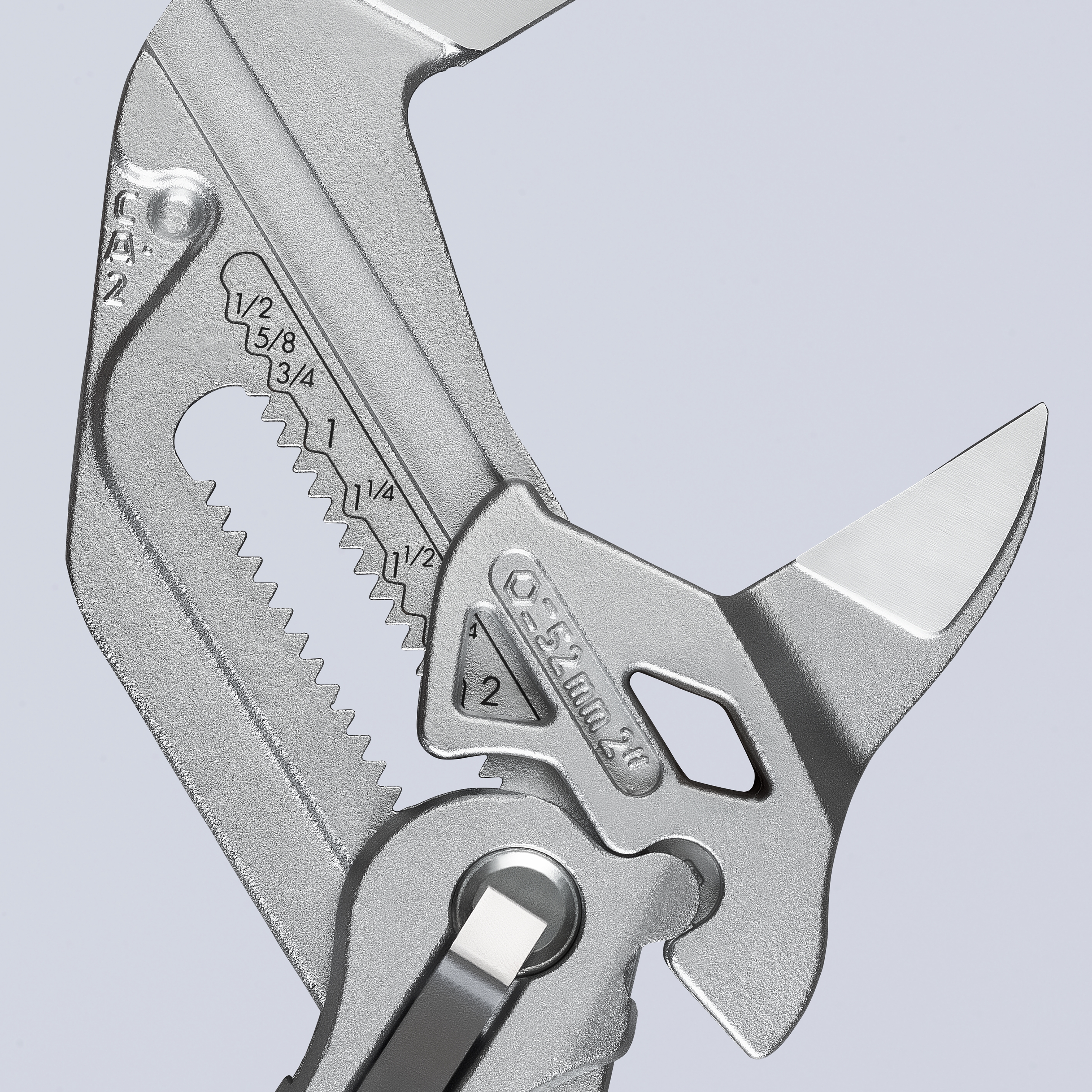

  • Laser-etched scale allows the wrench opening to be set before gripping onto workpiece - metric and inch markings
  • Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
  • Reliable catching of the hinge bolt: no unintentional shifting
  • The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
  • Lever transmission greater than 10-1 for strong gripping power
  • Chrome vanadium electric steel; forged, oil-hardened

    • Specifications

    Accessory Part
    86 09 250 V01
    Color
    Red
    Gripping Surface
    Smooth
    Handle Type
    Plastic Coating
    Jaw Thickness
    5/16"
    Joint Type
    Box-joint
    Material Type
    Chrome Vanadium Electric Steel, Forged, Oil-hardened
    Max Jaw Opening - Hex
    2"
    Max Jaw Opening - Working Capacity
    2"
    Nominal Length
    10"
    Number of Adjustment Positions
    19
    Spare Part
    87 09 01
    Surface Finish
    Chrome Plated
    Tip Thickness
    5/16"
    Tool Height-Decimal
    0.7"
    Tool Height
    11/16"
    Tool Nominal Length-Decimal
    10"
    Tool Weight
    1.18
    Tool Width-Decimal
    1.95"
    Tool Width
    2"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_86_Pliers+Wrenches.pdf
