KNIPEX TOOLS
97 53 04

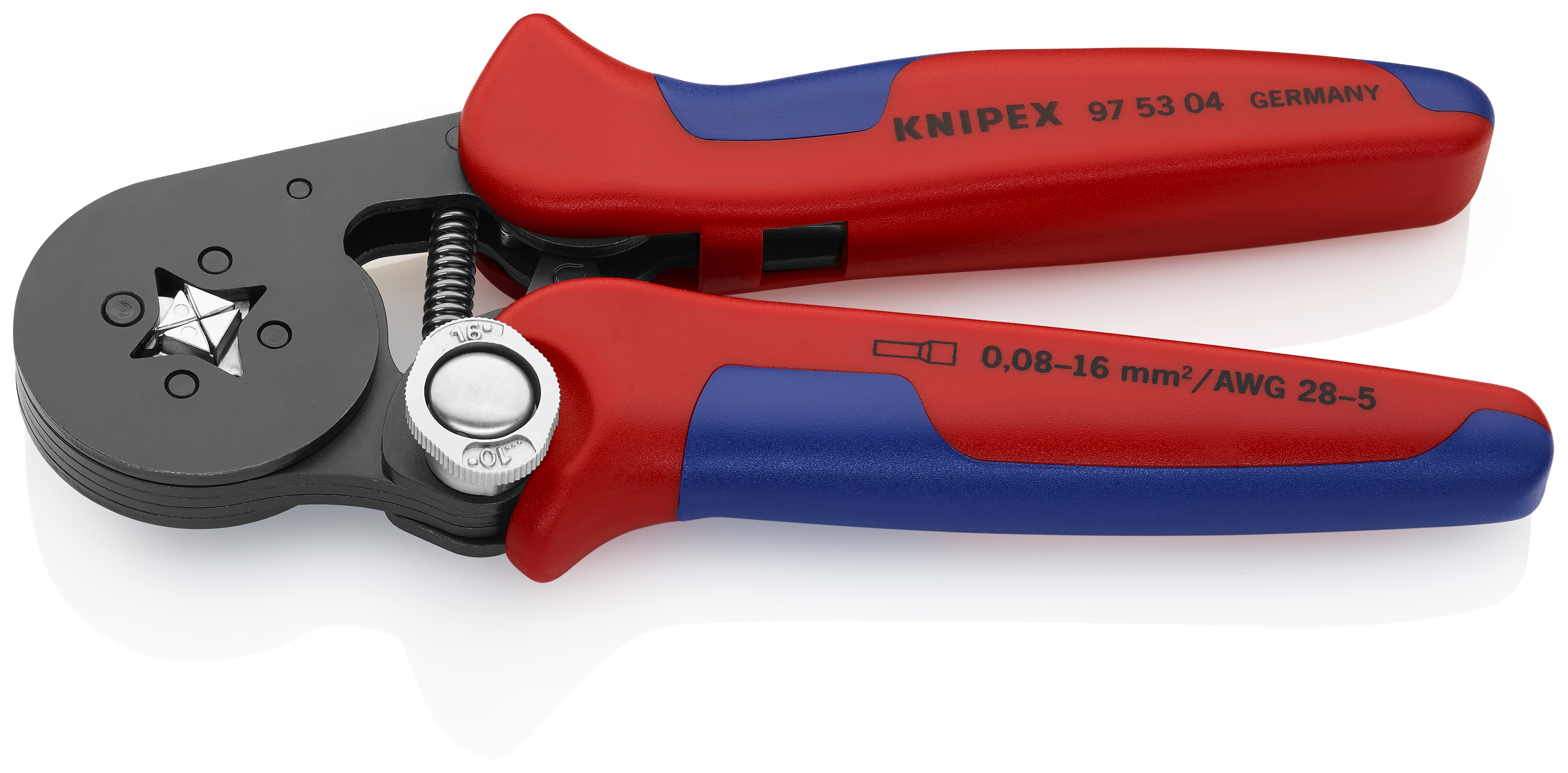

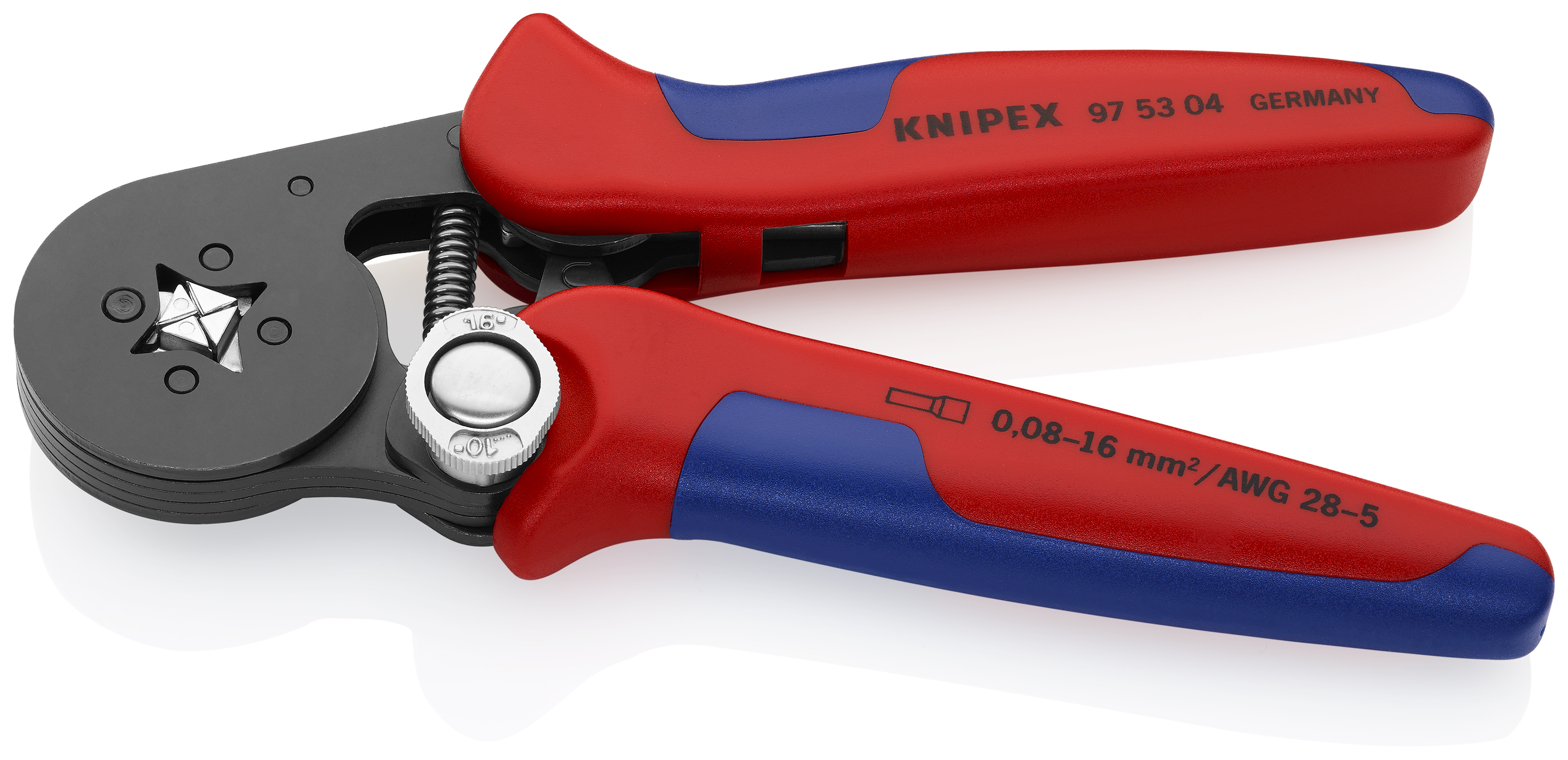

7" Self-Adjusting Crimping Pliers For Wire Ferrules

7" Self-Adjusting Crimping Pliers For Wire Ferrules

Catalog Number:
Manufacturer: KNIPEX TOOLS
Brand: KNIPEX TOOLS
Item ID: KNPX 975304
MPN: 97 53 04
UPC: 843221015930
Min Order Qty: 1

Features

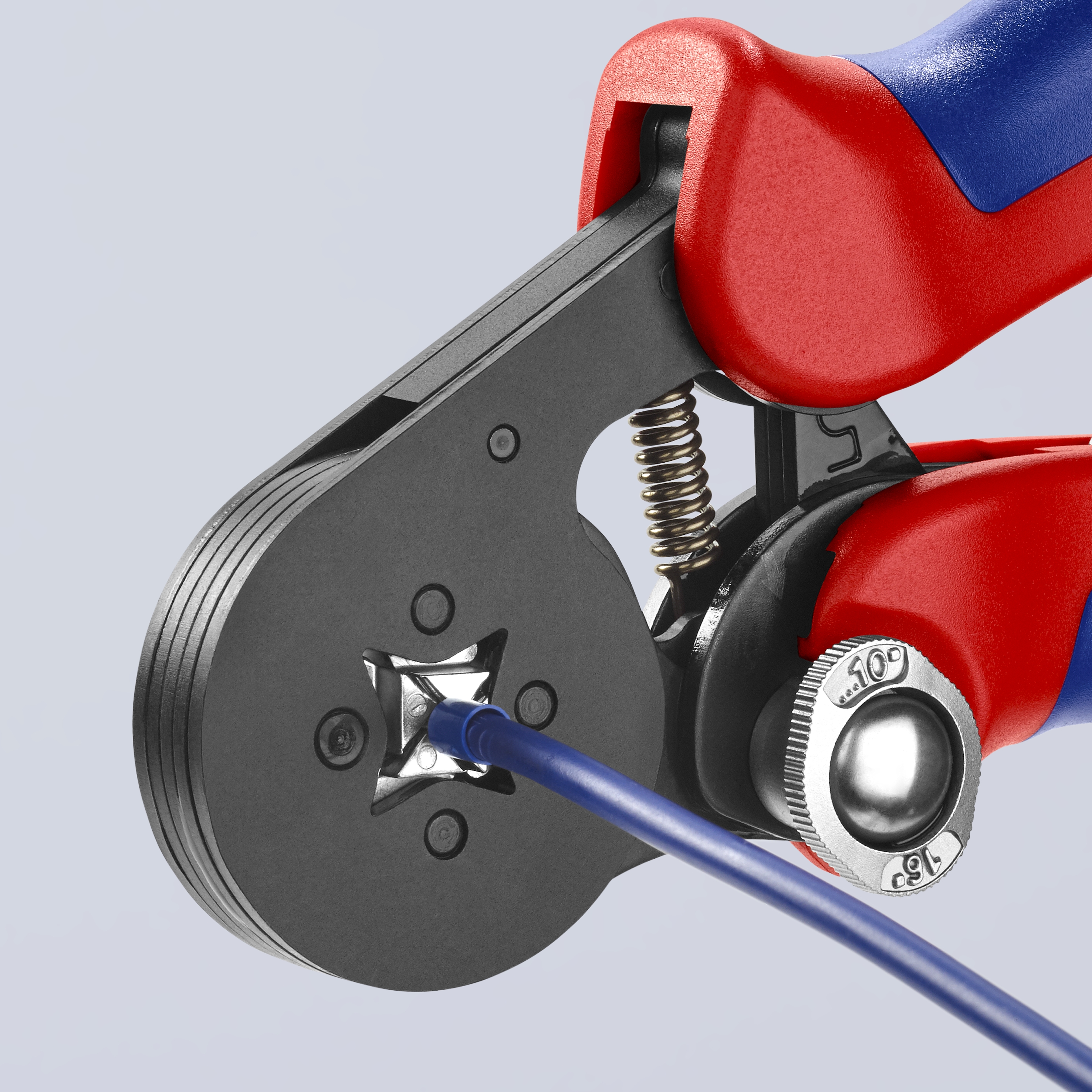

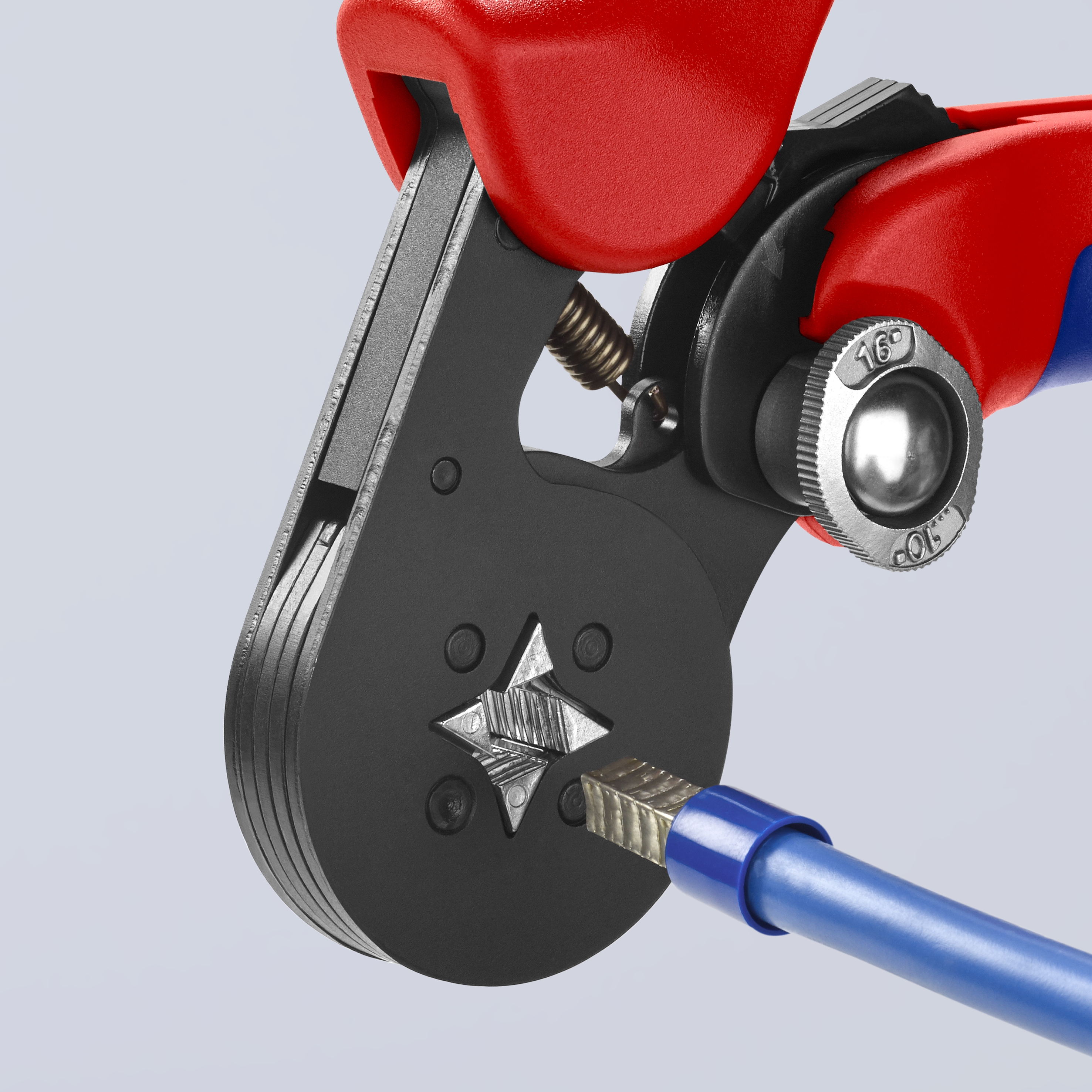

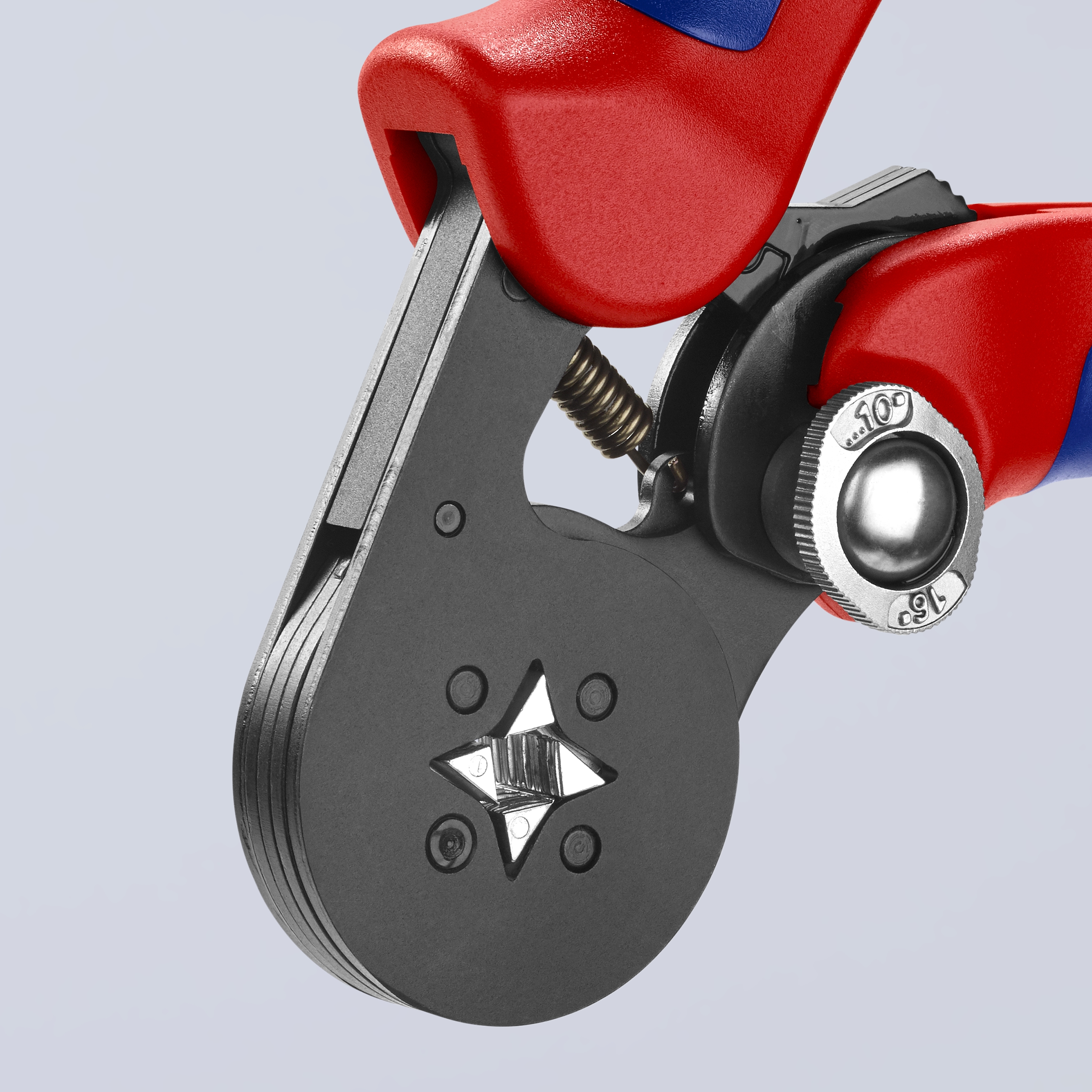

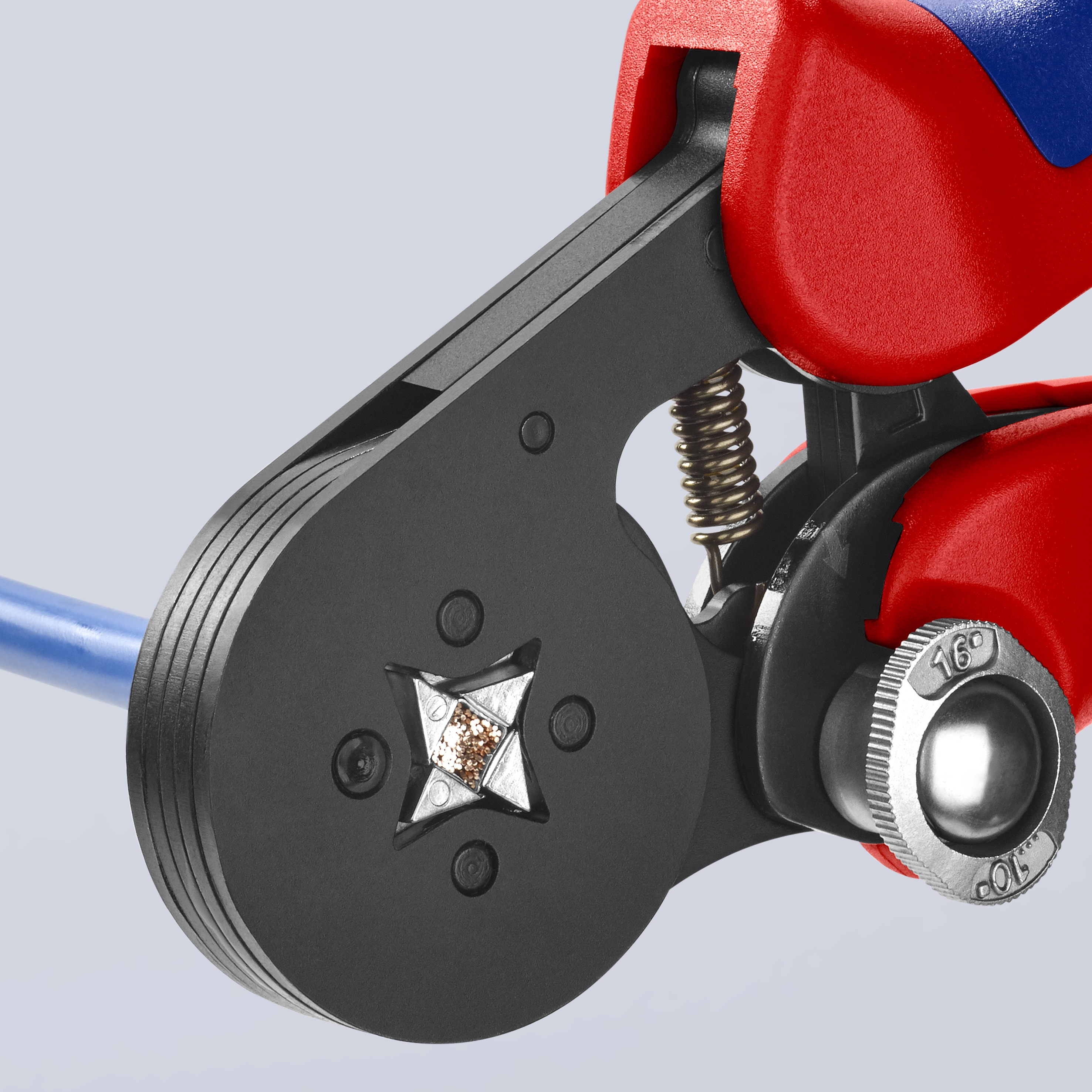

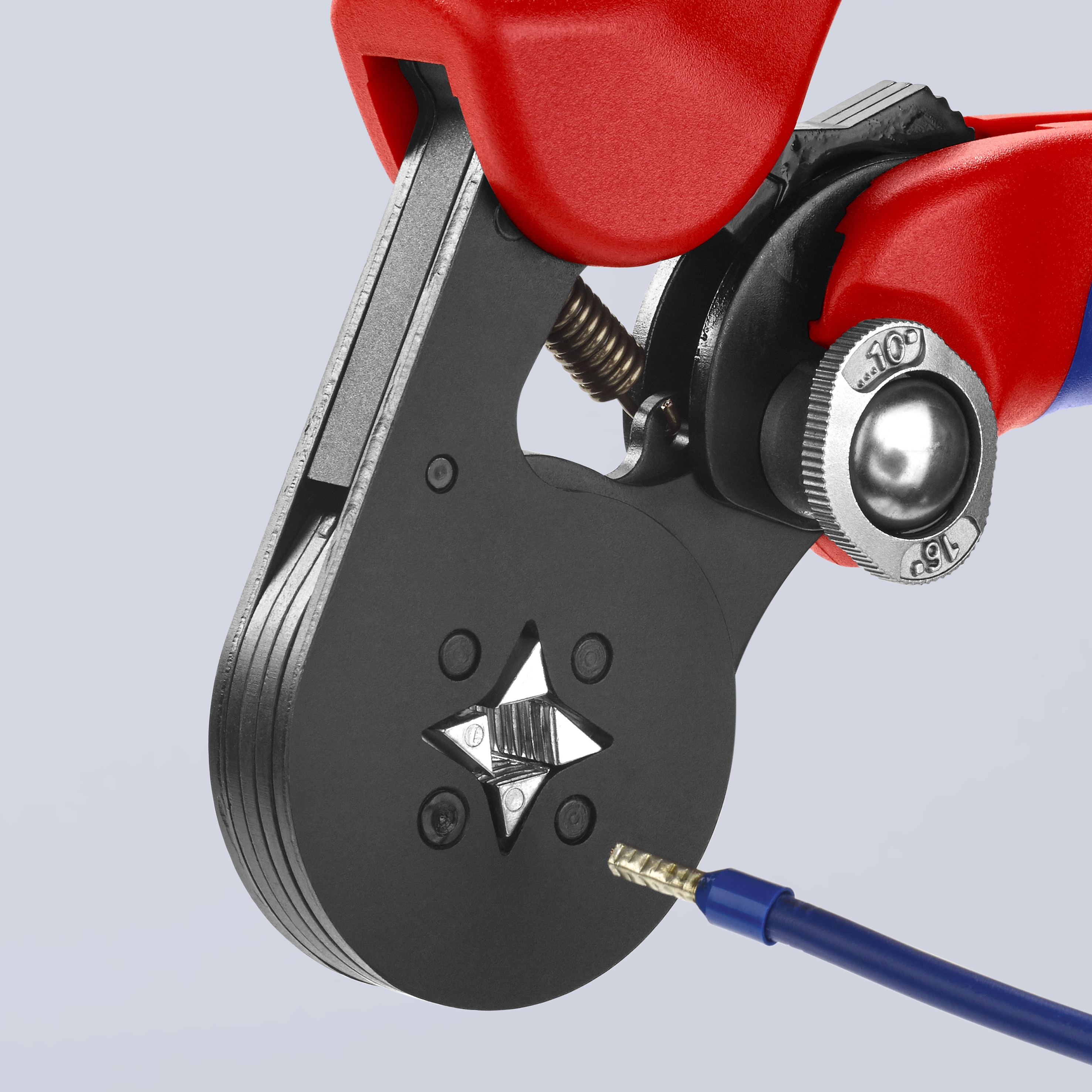

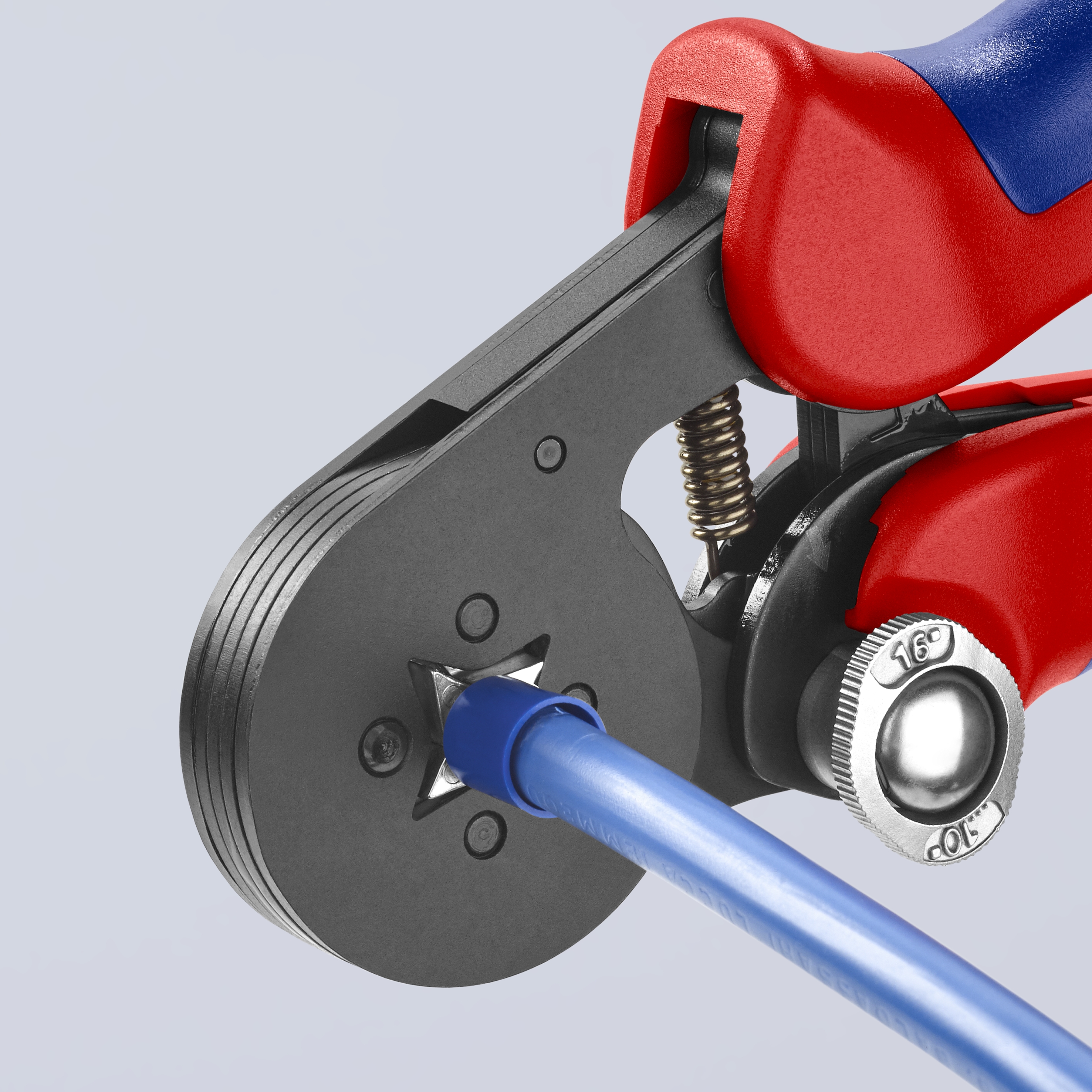

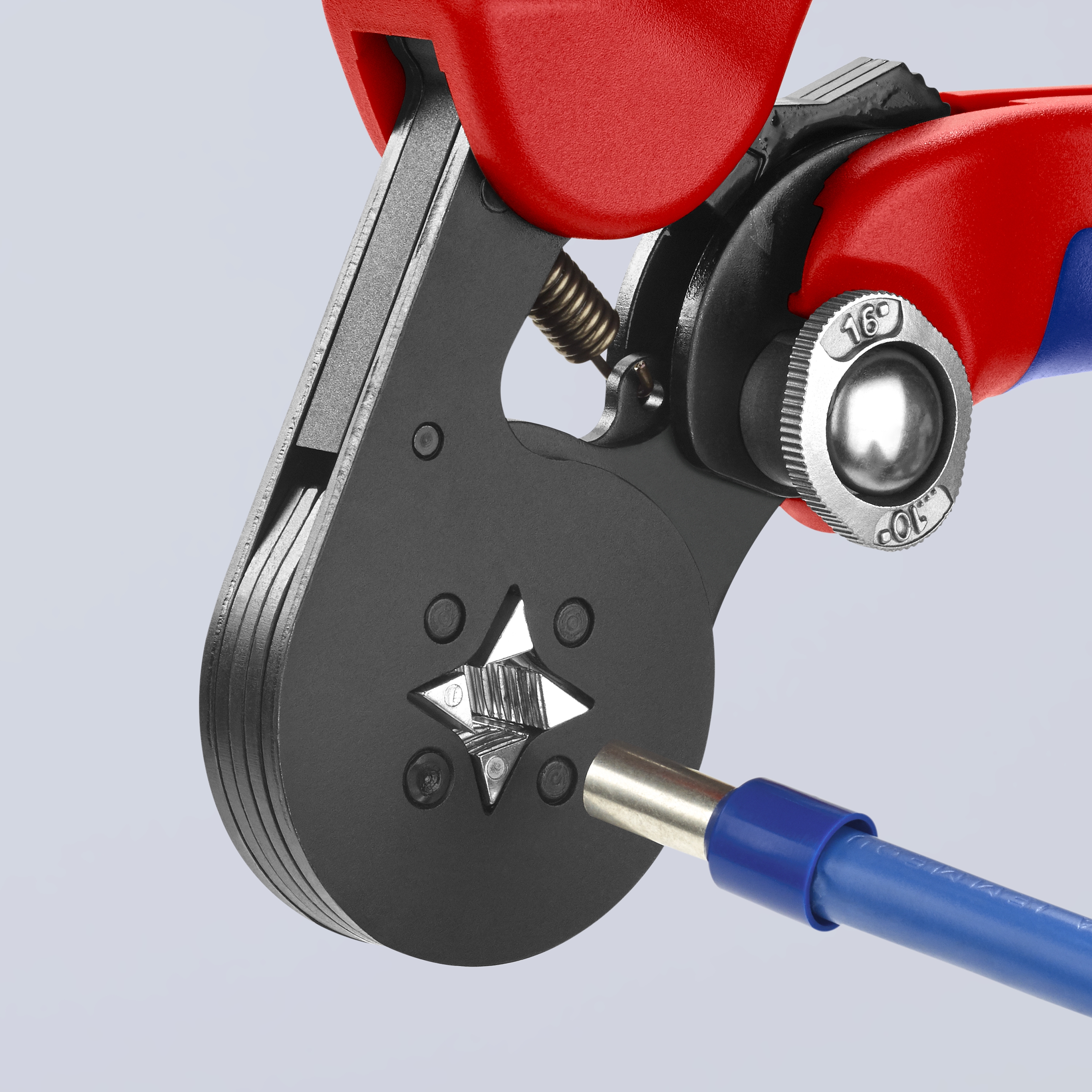

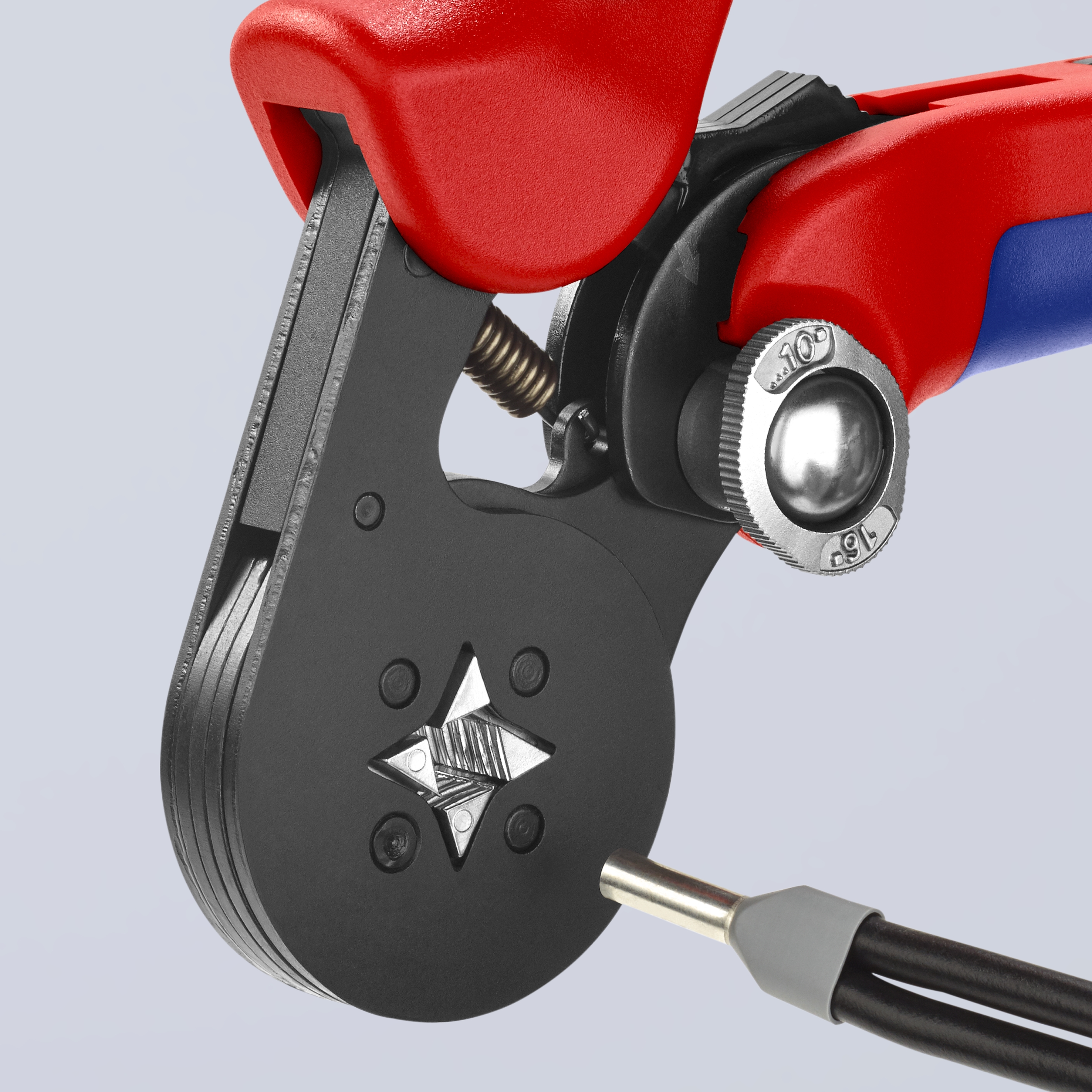

  • Self-adjusting crimping pliers for end sleeves (ferrules) with side access
  • For crimping ferrules (end sleeves) according to DIN 46228 parts 1 + 4
  • Capacity - 0.08 to 10 and 16 mm² and 28 to 8 and 6 AWG
  • Self-adjustment to the size of ferrules (end sleeves) required
  • Repetitive, high crimping quality due to integral lock (self-releasing mechanism)
  • These tools have been set precisely (calibrated) in the factory
  • Optimum transmission of force due to toggle lever for fatigue-reduced operation
  • High operation comfort thanks to handy shape and low weight
  • Chrome vanadium electric steel in special quality, oil-hardened

    • Specifications

    Color
    Red/Blue
    Crimping Capacity - AWG
    28 to 8 and 6
    Crimping Capacity - mm2
    0.08 to 10.0 and 16.0
    Crimping Positions
    1
    Crimping Profile
    Automatic square crimp
    Handle Type
    Multi-component
    Material Type
    Chrome Vanadium Electric Steel, Oil-hardened
    Nominal Length
    7"
    Other Surface Finish
    Burnished
    Spring Loaded
    Yes
    Surface Finish
    Black-oxide
    Terminal Type
    End Ferrules-Long|End Ferrules-Single|End Ferrules-Single (Insulated)
    Tool Height-Decimal
    1.2"
    Tool Height
    1 3/16"
    Tool Nominal Length-Decimal
    7"
    Tool Weight
    0.94
    Tool Width-Decimal
    2.75"
    Tool Width
    2 3/4"

    Resources

    • Catalog https://s3-us-west-2.amazonaws.com/catsy.534/USCAT19_97+53_Self-Adjusting+Crimping+Pliers+with+Side-Load+Mechanism.pdf
    • Brochure https://s3-us-west-2.amazonaws.com/catsy.534/Wire+Prep+Brochure.pdf
