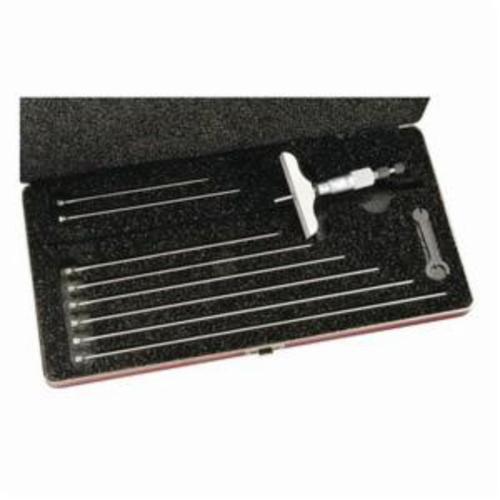

Starrett® 445AZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome
Starrett® 445AZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome
Starrett® 445AZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome

Click to enlarge
LS STARRETT
445AZ-9RL

Starrett® 445AZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome

Starrett® 445AZ-9RL Mechanical Depth Micrometer, 0 to 9 in, Graduations: 0.001 in, Satin Chrome

Catalog Number:
Manufacturer: LS STARRETT
Brand: LS STARRETT
Item ID: STRT 445AZ-9RL
MPN: 445AZ-9RL
Min Order Qty: 1

The Starrett® 445 series depth micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut.

Starrett® Depth Micrometer, Mechanical, Series: 445, 0 to 9 in, Mic Head +/-0.0001 in, Rods +/-0.0002 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, 5/32 in Spindle Dia, Ratchet Thimble, Satin Chrome

Sold As: 1/PK

Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • Combination ratchet and speeder for uniform pressure and quicker adjustment
  • Ring type knurled lock nut for quick and sure locking
  • Satin chrome reading surface is glare free and resists rust
  • 9 measuring rods
  • 3 in L x 1/2 in W Base

Specifications

Accuracy
Mic Head +/-0.0001 in, Rods +/-0.0002 in
Anvil Type
Flat
Finish
Satin Chrome
Graduations
0.001 in
Measuring Range
0 to 9 in
Resolution
0.001 in
Series
445
Spindle Diameter
5/32 in
Spindle Type
Flat
Thimble Type
Ratchet
Type
Mechanical

The Starrett® 445 series depth micrometer features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut.

Starrett® Depth Micrometer, Mechanical, Series: 445, 0 to 9 in, Mic Head +/-0.0001 in, Rods +/-0.0002 in Accuracy, Graduations: 0.001 in, 0.001 in Resolution, Flat Anvil, Flat Spindle, 5/32 in Spindle Dia, Ratchet Thimble, Satin Chrome
