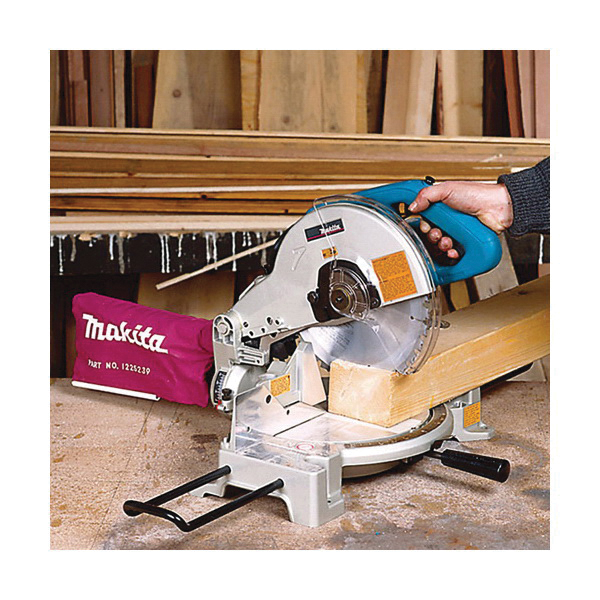

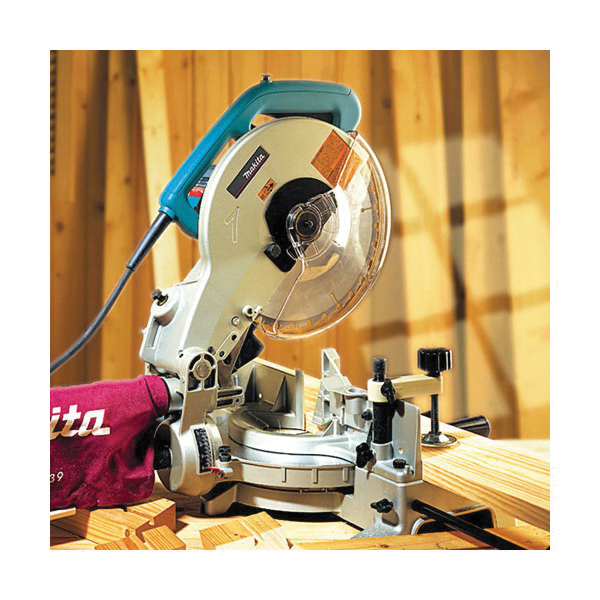

Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel
Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel
Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel
Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel

Click to enlarge
MAKITA USA
LS1040

Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel

Makita® LS1040 Compound Miter Saw, 10 in Dia Blade, 5/8 in Arbor/Shank, 2-3/4 in, 2-3/4 x 5-1/8 in Cutting, 45 deg Left/52 deg Right Miter, 45 deg Left Bevel

Catalog Number:
Manufacturer: MAKITA USA
Brand: MAKITA USA
Item ID: MAKT LS1040
MPN: LS1040
Min Order Qty: 1
Minimum order quantities may apply.

Makita® Compound Miter Saw, Tool/Kit: Tool, 10 in Dia Blade, 32T CT Blade, 5/8 in, 4600 rpm, No Slide, Cutting Capacity: 2-3/4 in, 2-3/4 x 5-1/8 in, 45/90 deg Cutting Angle, Miter Capacity: 45 deg Left/52 deg Right, Bevel Capacity: 45 deg Left, Bevel Stops: 0/15/22.5/30/45 deg, 120 V AC, 15 A, 91 dBA, 20-7/8 in L x 18-3/4 in W x 21 in H

Sold As: EACH

Features

  • Electric brake for increased operator safety
  • Two-stage safety switch for increased operator safety
  • Bevel Capacity of 45 deg Left
  • Mitre capacity of 45 deg left or 52 deg right with positive stops at 0 deg, 15 deg, 22.5 deg, 30 deg and 45 deg
  • Pivoting fence (left side) can be adjusted when bevel cutting or to support larger material

Specifications

Amperage Rating
15 A
Arbor/Shank Size
5/8 in
Bevel Capacity
45 deg Left
Bevel Stops
0/15/22.5/30/45 deg
Blade Size
10 in Dia
Blade Type
32T CT
Cutting Angle
45/90 deg
Cutting Capacity
2-3/4 in, 2-3/4 x 5-1/8 in
Dimensions
20-7/8 in L x 18-3/4 in W x 21 in H
Miter Capacity
45 deg Left/52 deg Right
Slide
No
Sound Level
91 dBA
Speed
4600 rpm
Tool/Kit
Bare Tool
Voltage Rating
120 V AC

Makita® Compound Miter Saw, Tool/Kit: Tool, 10 in Dia Blade, 32T CT Blade, 5/8 in, 4600 rpm, No Slide, Cutting Capacity: 2-3/4 in, 2-3/4 x 5-1/8 in, 45/90 deg Cutting Angle, Miter Capacity: 45 deg Left/52 deg Right, Bevel Capacity: 45 deg Left, Bevel Stops: 0/15/22.5/30/45 deg, 120 V AC, 15 A, 91 dBA, 20-7/8 in L x 18-3/4 in W x 21 in H
