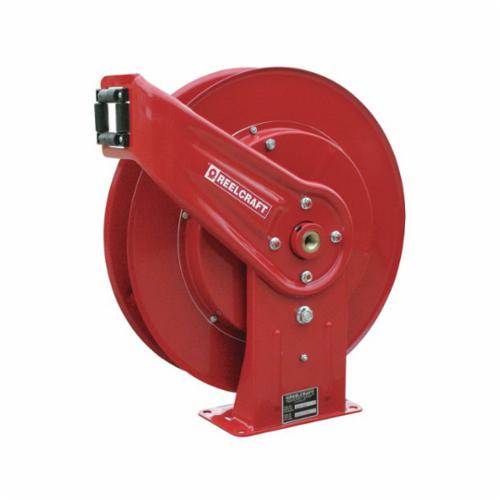

Reelcraft® 7800 OLP 7000 Heavy Duty Low Pressure Hose Reel, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 500 psi Pressure, 19-3/4 in Dia x 3-7/8 in W Reel, Domestic
Reelcraft® 7800 OLP 7000 Heavy Duty Low Pressure Hose Reel, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 500 psi Pressure, 19-3/4 in Dia x 3-7/8 in W Reel, Domestic
Reelcraft's series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The standard low-pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Consult Reelcraft® for other products and hoses. Guide arm adjusts to 3 positions. .
Reelcraft® Hose Reel, Heavy Duty Low Pressure, Series: 7000, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 500 psi Pressure, 19-3/4 in Reel Diameter, 3-7/8 in Reel Width, Retractable Spring Drive, Bench/Ceiling/Floor/Truck/Wall Mounting, Nickel Plated Steel Swivel, Aflas® Seal, 20-1/4 in H x 7 in W x 19-3/4 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic
Features
- Steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
- Full flow stress free swivel design - full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life, the hose is plumbed into the base to eliminate the risk of undue stress on the swivel
- Declutching arbor virtually eliminates possibility of spring damage due to reverse winding, only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Individually powder coated components offer the maximum protection from premature corrosion 1/2 in female NPTF inlet
- 1/2 in female NPTF outlet
Specifications
Reelcraft's series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high grade steel and engineered with structural forms and gussets to yield the greatest amount of strength. The standard low-pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Consult Reelcraft® for other products and hoses. Guide arm adjusts to 3 positions. .
Reelcraft® Hose Reel, Heavy Duty Low Pressure, Series: 7000, 1/2 in ID x 3/4 in OD x 50 ft L Hose, 500 psi Pressure, 19-3/4 in Reel Diameter, 3-7/8 in Reel Width, Retractable Spring Drive, Bench/Ceiling/Floor/Truck/Wall Mounting, Nickel Plated Steel Swivel, Aflas® Seal, 20-1/4 in H x 7 in W x 19-3/4 in D, Reinforced Stainless Steel, Powder Coated, Red, Domestic
