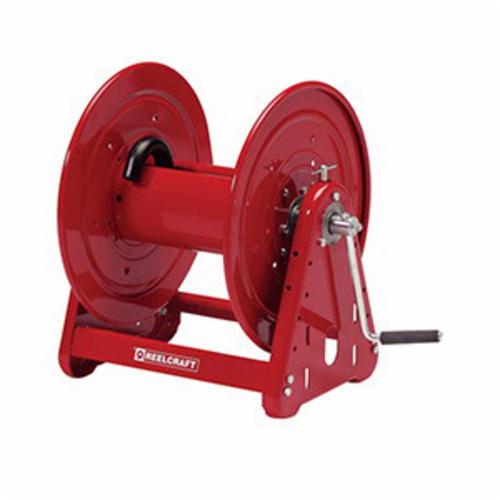

Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel
Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel
Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel
Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel

Click to enlarge
REELCRAFT INDUSTRIES
CA33112 L

Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel

Reelcraft® CA33112 L 30000 Heavy Duty Hose Reel, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi Pressure, 17-3/4 in Dia x 12 in W Reel

Catalog Number:
Manufacturer: REELCRAFT INDUSTRIES
Brand: REELCRAFT INDUSTRIES
Item ID: REEL CA33112L
MPN: CA33112 L
Min Order Qty: 1
Minimum order quantities may apply.

The series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000's vibration proof, self-locking fasteners are ideal for industrial or field use such as turf care, pest control and industrial wash down applications.

Reelcraft® Hose Reel, Heavy Duty, Series: 30000, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi, 17-3/4 in Reel Dia, 12 in Reel Width, T-Hand Crank Drive, Bench/Floor/Truck/Wall Mount, Nickel Plated Steel Swivel, FKM O-Ring Seal, 20-1/4 in H x 17-3/4 in W x 25 in D, Steel, Powder Coated, Red

Sold As: 1/PK

Features

  • Hose replacement made easy - the goose neck can easily be removed to simplify adding long lengths of hose to the reel
  • Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
  • Quality finish and corrosion-resistant - individually powder coated components offer the maximum protection from premature corrosion
  • Easy to add tension - the T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel
  • 3/4 in NPTF female outlet, 3/4 in NPTF female inlet
  • Temperature operating range from -20 deg F (-29 deg C) to 250 deg F (121 deg C)
  • Permanently lubricated dual main bearings

Specifications

Color
Red
Dimensions
20-1/4 in H x 17-3/4 in W x 25 in D
Drive Type
T-Hand Crank
Finish
Powder Coated
Hose Capacity
3/4 in ID x 1-3/40 in OD x 100 ft L
Material
Steel
Mounting Type
Bench/Floor/Truck/Wall
Pressure Rating
1000 psi
Reel Diameter
17-3/4 in
Reel Width
12 in
Seal Type
FKM O-Ring
Series
30000
Swivel Material
Nickel Plated Steel
Type
Heavy Duty

The series 30000 reels are designed for rugged, heavy duty applications requiring long lengths of hose and large storage capacity. All bolted unitized construction with no welds to fatigue, full flow swivel and heavy gauge steel frame, spool and drum ensure longest service life. Series 30000's vibration proof, self-locking fasteners are ideal for industrial or field use such as turf care, pest control and industrial wash down applications.

Reelcraft® Hose Reel, Heavy Duty, Series: 30000, 3/4 in ID x 1-3/40 in OD x 100 ft L Hose, 1000 psi, 17-3/4 in Reel Dia, 12 in Reel Width, T-Hand Crank Drive, Bench/Floor/Truck/Wall Mount, Nickel Plated Steel Swivel, FKM O-Ring Seal, 20-1/4 in H x 17-3/4 in W x 25 in D, Steel, Powder Coated, Red
