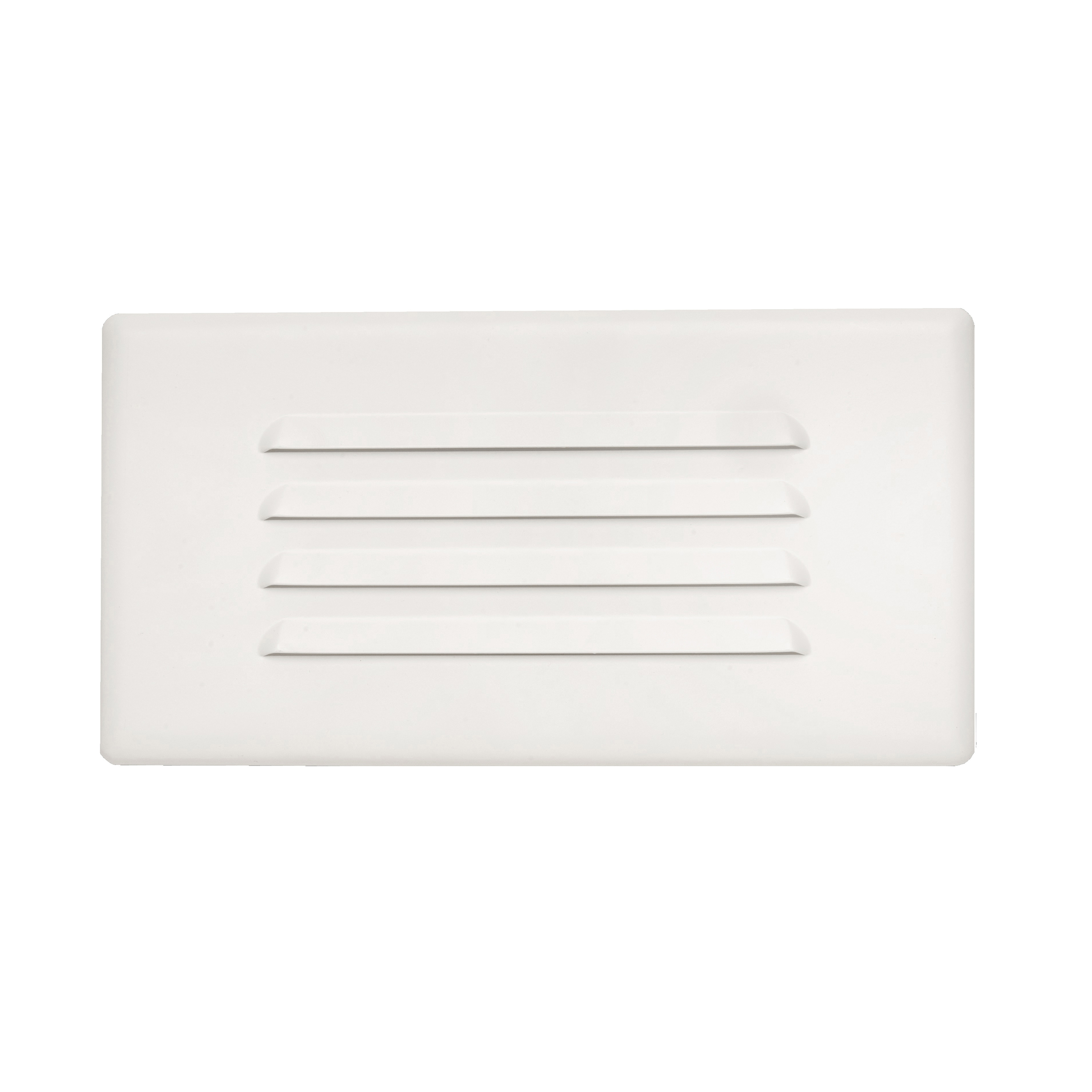

Nicor 15800 Dimmable Step Light With Hanger Bar, (1) Incandescent Lamp, 120 V AC, White Powder Coated Housing

Nicor 15800 Dimmable Step Light With Hanger Bar, (1) Incandescent Lamp, 120 V AC, White Powder Coated Housing

Catalog Number:
Manufacturer: UNITED STATES PLASTIC
Brand: UNITED STATES PLASTIC
Item ID: USPC 15800
MPN: 15800
Min Order Qty: 1

The incandescent step light offers energy savings over 50000 hr of operation. Approved for use in wet locations, this is an ideal fixture for use in outdoor or indoor wall mount applications, including, concrete pour, brick masonry or drywall.

Nicor Step Light, Dimmable, 120 V AC, Incandescent Lamp, 40 W Lamp, E26/E27 Medium Lamp Base, 1 Lamp, TRIAC Dimming Driver Ballast, Cold Rolled Steel Housing Material, White Powder Coated Housing Finish, 10-1/4 in H x 3-1/2 in W x 3-1/2 in D Dimensions

Sold As: 1/PK

Features

  • Thermally protected
  • IC rated when used with a 25 W Lamp, suitable for direct contact with insulation
  • Non-IC rated when used with a 40 W Lamp, insulation must be kept a minimum of 3 in from housing
  • 120 VAC input into wiring compartment
  • Includes hanger brackets for new construction installation

Specifications

Ballast Type
TRIAC Dimming Driver
Dimensions

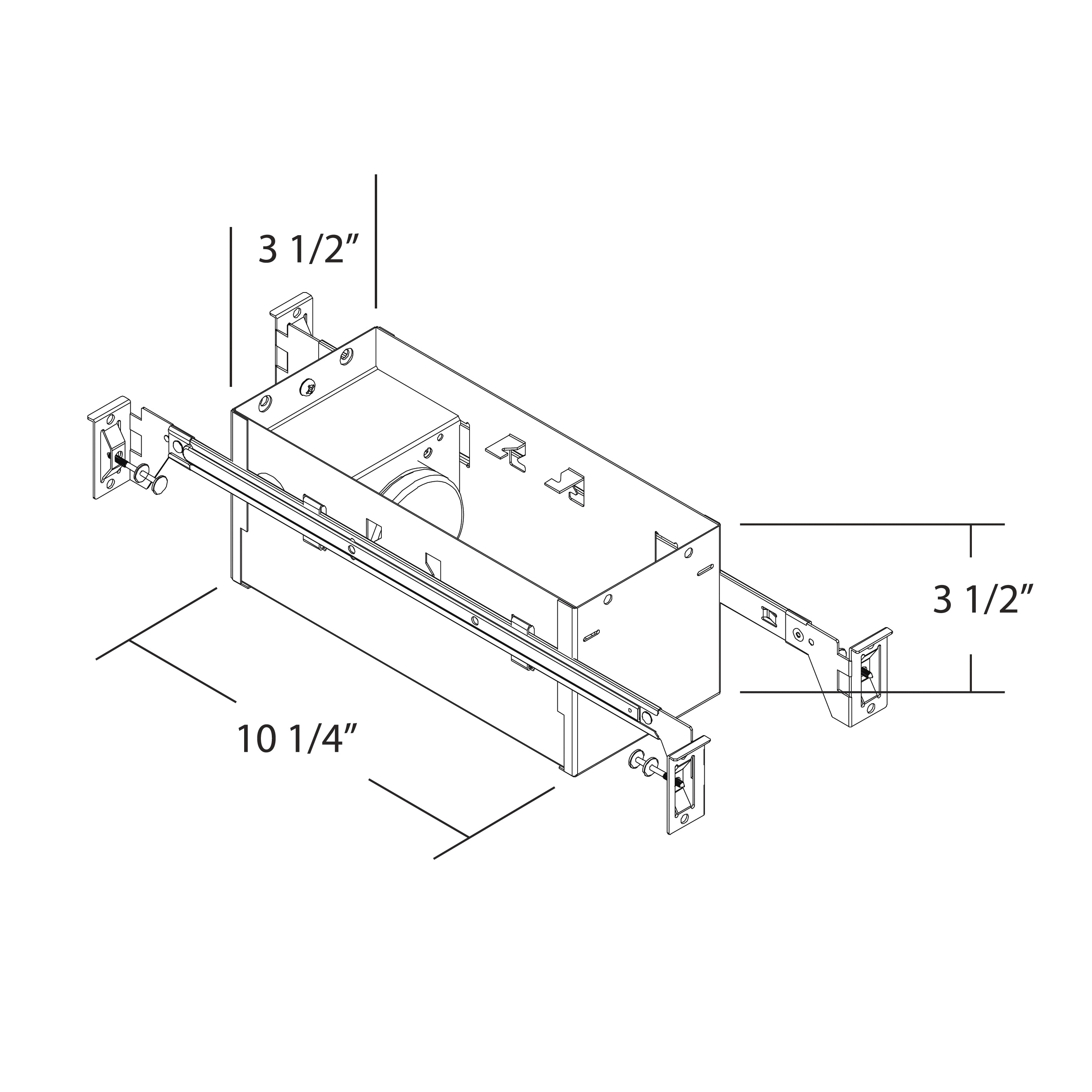

10-1/4 in H x 3-1/2 in W x 3-1/2 in D
Housing Finish
White Powder Coated
Housing Material
Cold Rolled Steel
Lamp Base Type
E26/E27 Medium
Lamp Type
Incandescent
Lamp Wattage
40 W
Number of Lamps
1
Type
Dimmable
Voltage Rating
120 V AC

The incandescent step light offers energy savings over 50000 hr of operation. Approved for use in wet locations, this is an ideal fixture for use in outdoor or indoor wall mount applications, including, concrete pour, brick masonry or drywall.

Nicor Step Light, Dimmable, 120 V AC, Incandescent Lamp, 40 W Lamp, E26/E27 Medium Lamp Base, 1 Lamp, TRIAC Dimming Driver Ballast, Cold Rolled Steel Housing Material, White Powder Coated Housing Finish, 10-1/4 in H x 3-1/2 in W x 3-1/2 in D Dimensions
