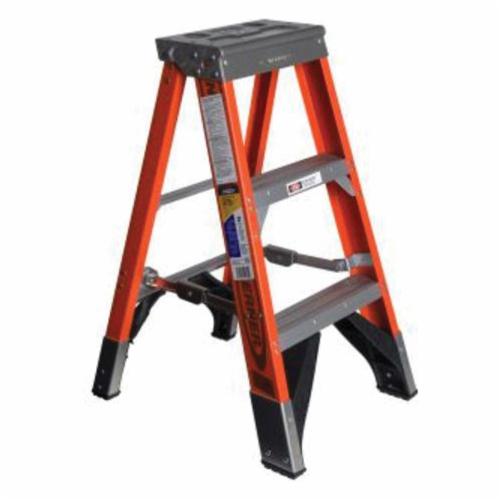

WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5
WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5
WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5
WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5
WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5

Click to enlarge
WERNER
7403

WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5

WERNER® 7403 7400 Type IAA Step Ladder, 3 ft H Ladder, 375 lb Load, 2 Steps, Fiberglass, A14.5

Catalog Number:
Manufacturer: WERNER
Brand: WERNER
Item ID: WERN 7403
MPN: 7403
Min Order Qty: 1

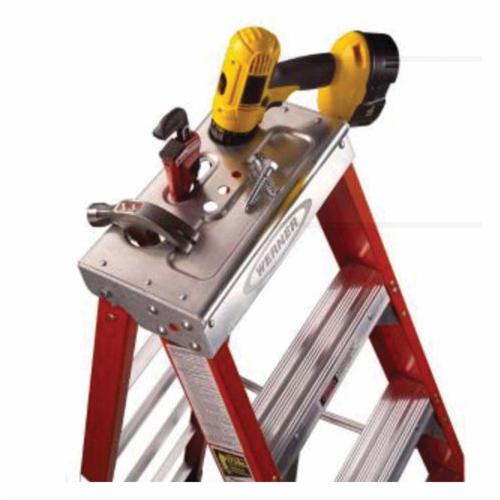

Built to last, the Werner 375-pound duty rated 7403 Fiberglass 3 ft Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The Edge® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the work site and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.

WERNER® Step Ladder, Type IAA, Series: 7400, 3 ft Ladder Height, 375 lb, ANSI Code: A14.5, Fiberglass, 2 Steps, 24-3/8 in Base Spread, 19-3/4 in Bottom Width, 3 in W Tread

Features

  • Extra heavy duty aluminum holster top
  • Thick side plates
  • Shoulder bolt and lock nut on top hinge, 4 solid aluminum rivets attach top to each front rail
  • Back-up plates reinforce all top connectors
  • Slip-resistant TRACTION-TRED® steps are double riveted and have extra wide knee braces
  • Extra heavy duty internal spreaders
  • Glas mark violator stripes on rails allow ladder to be more visible
  • The edge bracing system helps to decrease damage to rail
  • Aluminum external rail shield helps protect against abrasion damage
  • Shoe pads riveted to the edge structure
  • Every rivet backed up by metal plate or washer to protect rails
  • Energy diffusing geometry
  • 3-1/8 in front wide x 1-7/8 in rear wide rail
  • 1-3/16 in front wide x 1-3/16 in rear back wide flange

Specifications

ANSI Code
A14.5
Base Spread
24-3/8 in
Bottom Width
19-3/4 in
Ladder Height
3 ft
Load Capacity
375 lb
Material
Fiberglass
Number of Steps
2
Series
7400
Tread
3 in W
Type
Type IAA

Built to last, the Werner 375-pound duty rated 7403 Fiberglass 3 ft Step Ladder is rugged and ready for the job. This ladder features extra heavy duty aluminum HolsterTop, internal spreaders and external rail shields for long lasting durability. With The Edge® bracing system and GLAS*MARK® Violator stripes on the rails, the 7400 series is built to handle the work site and stands ready for tough jobs. Fiberglass rails are non-conductive for working near electricity.

WERNER® Step Ladder, Type IAA, Series: 7400, 3 ft Ladder Height, 375 lb, ANSI Code: A14.5, Fiberglass, 2 Steps, 24-3/8 in Base Spread, 19-3/4 in Bottom Width, 3 in W Tread
